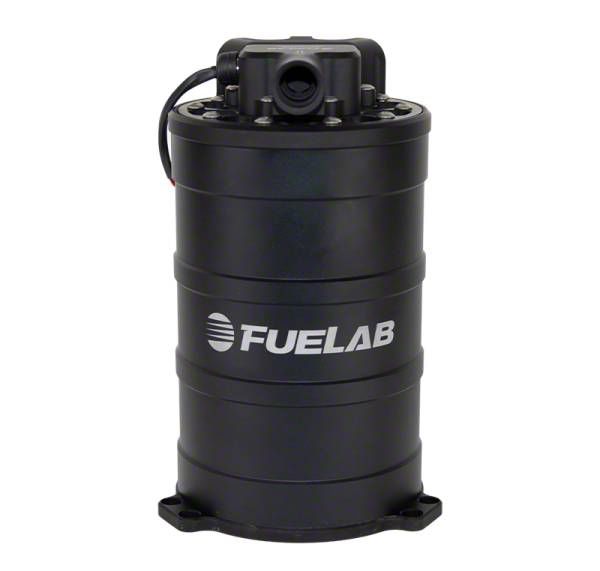

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 235mm Tall (Universal; Some Adaptation May Be Required)

Item 472997
Product Image
1 Reviews of Fuelab
Our Price

$1,668.00

Military, Medical & First Responders $83.40 Available in AM Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • H/E Series 235mm Tall Fuel Surge Tank System 850 HP SAE Plate Mount Brushless Screw Pump
      • Limited Lifetime Warranty
      • 2.1L Fuel Surge Tank System With Speed Controllable, Twin Screw DC Brushless Fuel Pump, 400lph
      • Allows For High Fuel Flow Output With Little Or No Modifications To The OE Fuel Tank And Module
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
      • 235mm Tall
      • FST Rated Volume: 2.1 L
      • Single Twin Screw DC Brushless Fuel Pump Included
      • Rated To Flow 400lph At 45psi, 125psi Max
      • Integrated Controller With PWM Speed Control
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
      • Compatible With Pump And Racing Gasoline, And E85
      • Return Line Is Required, Returns Excess Fuel Back To The Vehicle Fuel Tank
      • Optional FST Upgrade Accessory Kits Sold Separately
      • Backed By A Limited Lifetime Warranty
      • Pulse Width Modulation Compatibility From 100Hz To 5000Hz
      • Compatible With Most Aftermarket ECU's Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, And Megasquirt
      • Fits Universal; Some Adaptation May Be Required

      Description

      Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 235mm Tall is engineered to deliver consistent high fuel flow while maintaining fuel stability. This system prevents fuel sloshing by keeping a ready volume of fuel accessible, making it ideal for high-performance applications requiring up to 850 horsepower. It ensures reliable fuel delivery with minimal modifications to the original equipment fuel tank setup.

      Construction and Appearance. This fuel surge tank system is constructed from billet aluminum with precision O-ring sealing to ensure durability and leak prevention. The system features -8AN fuel ports and a clean, robust finish designed to withstand harsh racing environments while maintaining a professional appearance.

      Installation. Installation is straightforward with a SAE plate mount design, requiring minimal modification to the vehicle’s existing fuel system. No complex drilling is typically necessary, making it accessible for experienced automotive technicians.

      Warranty. This product is backed by a limited lifetime warranty, providing long-term peace of mind.

      Application. Fits universal; some adaptation may be required.

      Fuelab 61702
