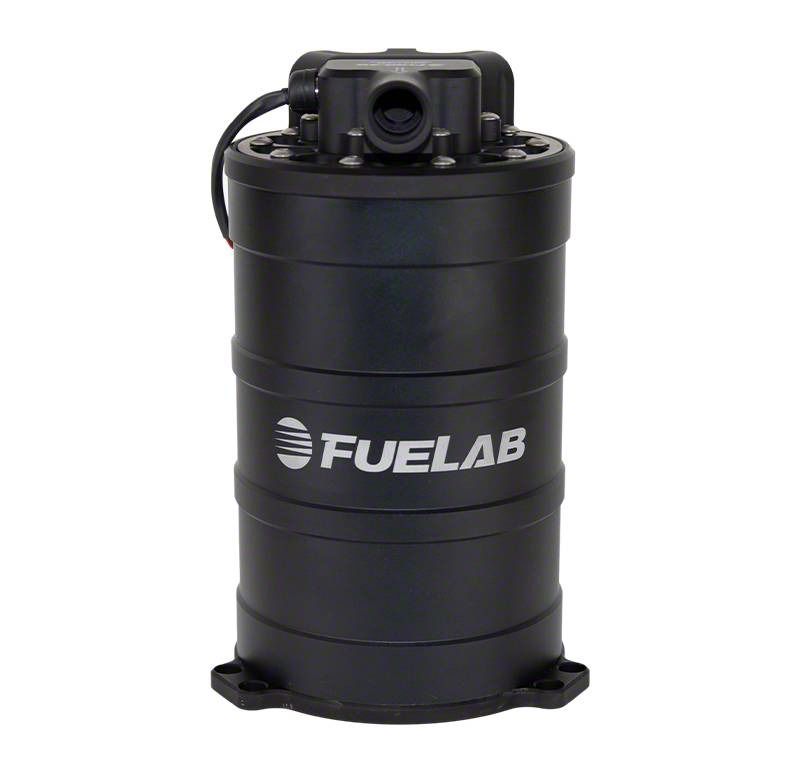

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1250 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item 472998
Our Price
$1,721.00
Military, Medical & First Responders
$86.05 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 1250 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, 550 lph _x000D_
- Allows High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- FST Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 550 lph at 45 psi, 125 psi Max _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required; Returns Excess Fuel Back to Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Backed by a Limited Lifetime Warranty _x000D_
- Pulse Width Modulation (PWM) Compatibility with Most Aftermarket ECUs Supporting PWM Output Frequency _x000D_
- Compatible from 100 Hz to 5000 Hz _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Performance Fuel Surge Tank. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, designed for up to 1250 HP and standing 235mm tall, delivers consistent and reliable fuel delivery for high-performance applications. It maintains a steady fuel supply by preventing fuel sloshing and enabling high flow rates with minimal modifications to existing fuel tanks. This system is essential for vehicles requiring enhanced fuel stability during aggressive driving or racing conditions.
_x000D__x000D_Construction and Appearance. The surge tank is constructed from billet aluminum with O-ring seals for durability and leak prevention. It features -8AN fuel ports and a compact 235mm height. The integrated brushless twin screw pump offers a modern, efficient design with an anodized finish that complements high-performance engine bays.
_x000D__x000D_Installation. Installation is straightforward with SAE plate mounting, requiring minimal modification to original equipment tanks or modules. No extensive drilling or complex alterations are necessary, making it suitable for professional and experienced DIY installers.
_x000D__x000D_Warranty. This system is backed by a limited lifetime warranty, providing long-term confidence in material and workmanship.
_x000D__x000D_Application. Designed for universal fitment, some adaptations may be required to ensure compatibility across a variety of high-performance setups and configurations.
Fuelab 61703
