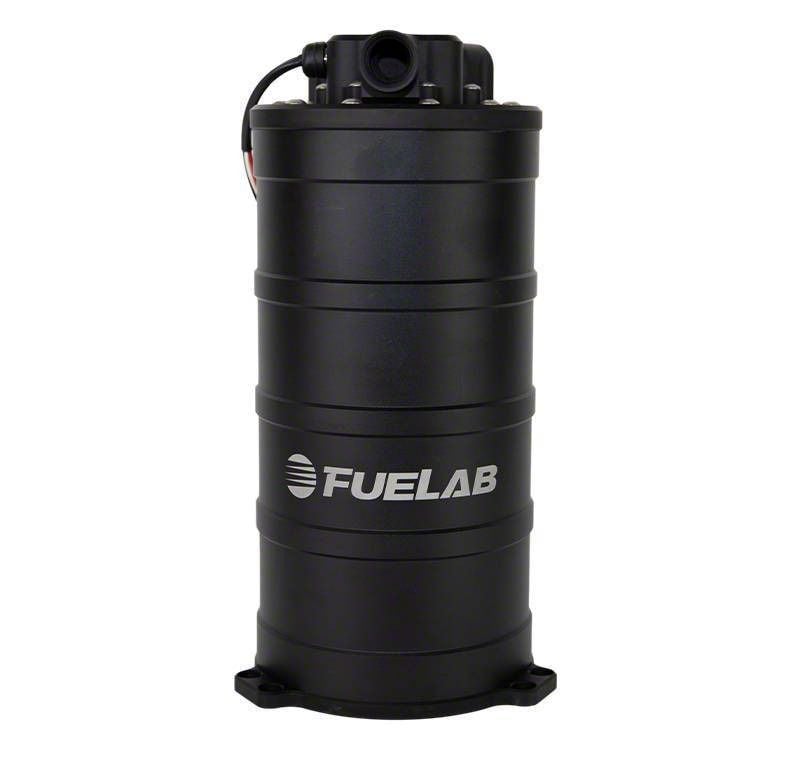

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)
Item 473002
Our Price
$1,784.00
Military, Medical & First Responders
$89.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump, Speed Controllable
- Limited Lifetime Warranty
- 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, 625 lph
- Allows High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
- 290mm Tall
- FST Rated Volume: 2.7 L
- Single Twin Screw DC Brushless Fuel Pump Included
- Rated to Flow 625 lph at 45 psi, 125 psi Max
- Integrated Controller with PWM Speed Control
- Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports
- Compatible with Pump and Racing Gasoline, and E85
- Return Line Required, Returns Excess Fuel Back to the Vehicle Fuel Tank
- Optional FST Upgrade Accessory Kits Sold Separately
- Backed by a Limited Lifetime Warranty
- Compatible with Most Aftermarket ECUs with PWM Output Frequency
- Compatible from 100Hz to 5000Hz
- Fits Universal Applications; Some Adaptation May Be Required
Description
High-Performance Fuel System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 1500 HP and standing 290mm tall, is engineered to provide consistent and reliable fuel delivery for high-horsepower engines. This system maintains a steady fuel volume, preventing sloshing during aggressive driving or racing conditions. It is ideal for applications requiring dependable fuel supply with minimal modifications to the original fuel tank or module.
Construction and Appearance. Crafted from billet aluminum with O-ring sealed ports, the surge tank offers robust durability and leak-free performance under high pressure. It features -8AN fuel ports and a precision-machined finish ensuring long-lasting reliability.
Installation. Installation requires moderate mechanical skills and generally does not involve drilling or major fuel system modifications. The design integrates smoothly with existing fuel setups and includes a return line to send excess fuel back to the vehicle’s fuel tank.
Warranty. This fuel surge tank system is supported by a limited lifetime warranty, ensuring confidence in its quality and durability.
Application. Designed to fit universal applications, though some adaptation may be necessary to suit specific vehicle configurations.
Fuelab 61714
