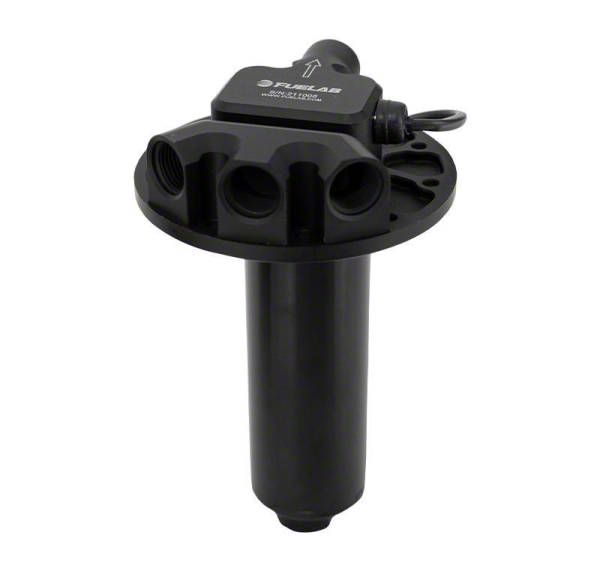

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH (Universal; Some Adaptation May Be Required)
Item 473039
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 550 LPH @ 45 PSI, 125 PSI MAX Pressure
- Rated Up To 1250+ HP
- Twin Screw Rotor Pumping Mechanism
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation (Vapor Lock)
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight Super-Efficient DC Brushless Motor
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode
- Wet Motor Design, No Dynamic Shaft Seals
- Compact, Lightweight Design, Less Than 2.5lbs
- Overall Length 8 Inches, Pump Diameter 2 Inches
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Compatible With Most Aftermarket ECU PWM Outputs, 100Hz To 5000Hz
- Limited Lifetime Warranty
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated for 1250+ HP and delivering 550 LPH at 45 PSI with a maximum pressure of 125 PSI, is engineered to provide reliable and consistent fuel flow for high horsepower applications. It efficiently supplies fuel to engines demanding up to 1250+ horsepower, ensuring smooth operation and optimal engine performance across various fuel types including gasoline, diesel, methanol, and ethanol.
Construction and Appearance. Constructed from billet aluminum and anodized to MIL-A-8625 Type II standards, this fuel pump features a compact and lightweight design weighing less than 2.5 pounds. Measuring 8 inches in length and 2 inches in diameter, it offers easy integration into tight spaces. Durable fluorosilicone static seals provide multi-fuel compatibility, while the brushless motor utilizes powerful neodymium rare earth magnets to deliver superior magnetic flux and efficiency.
Installation. The pump installs easily using a flange-mounted SAE 10-bolt pattern compatible with fabricated fuel cells or reservoirs. While no drilling is typically required, some adaptation may be necessary depending on the specific application.
Warranty. Backed by a limited lifetime warranty, the Fuelab H/E Series pump ensures durability and engineering quality.
Application. Designed for universal fitment, though some adaptation may be required to meet the needs of specific setups.
Fuelab 93903
