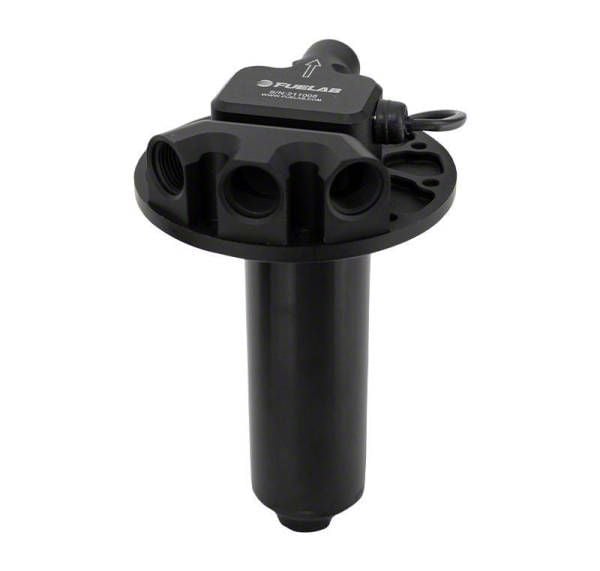

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 2800 HP; 1100 LPH (Universal; Some Adaptation May Be Required)
Item 473041
Our Price
$1,626.00
Military, Medical & First Responders
$81.30 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 1100 LPH at 45 PSI, 125 PSI Max Operating Pressure _x000D_
- Supports Up to 2800 HP at 13.5V _x000D_
- Twin Screw Rotor Pumping Mechanism for Superior Efficiency _x000D_
- Compatible with Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Higher Efficiency Reduces Current Draw and Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance to Cavitation (Vapor Lock) _x000D_
- Compatible with 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight, Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode _x000D_
- Wet Motor Design with No Dynamic Shaft Seals _x000D_
- Compact, Lightweight Design Weighing Less Than 2.5 lbs _x000D_
- Overall Length 8", Pump Diameter 2" _x000D_
- Billet Aluminum Construction with Anodized Finish per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Compatible with Most Aftermarket ECU's with PWM Output Frequency, 100Hz to 5000Hz _x000D_
- Limited Lifetime Warranty _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
High Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump is a high-capacity in-tank fuel pump designed to deliver consistent fuel flow for high-horsepower applications. It supports up to 2800 horsepower with a maximum operating pressure of 125 PSI, using a twin screw rotor mechanism for superior efficiency and reliability. This pump is essential for motorsports and performance vehicles requiring robust fuel delivery and excellent priming capabilities.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with a durable anodized finish meeting MIL-A-8625 Type II standards, this pump is compact and lightweight, weighing less than 2.5 lbs. It features a flange-mounted SAE 10-bolt pattern for secure installation, and uses multi-fuel compatible fluorosilicone static seals for longevity and chemical resistance.
_x000D__x000D_Installation. Installation requires mounting the pump on an SAE 10-bolt flange, typically in custom or fabricated fuel cells. The compact design facilitates easier mounting but may require basic mechanical skills and appropriate fittings for proper integration.
_x000D__x000D_Warranty. Backed by a limited lifetime warranty for peace of mind and long-term reliability. Application. Fits universal applications; some adaptation may be required depending on the fuel system and installation environment.
Fuelab 93905
