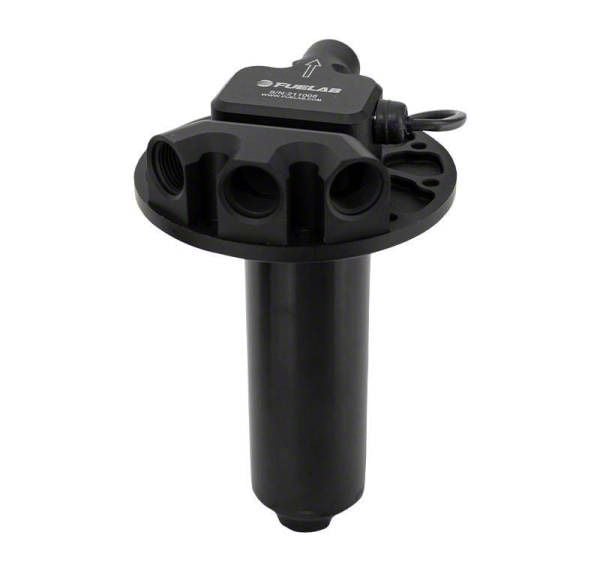

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH (Universal; Some Adaptation May Be Required)
Item 473037
Our Price
$1,259.00
Military, Medical & First Responders
$62.95 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 300 LPH @ 45PSI, 125PSI MAX - 13.5V RATED UP TO 625HP Reliable And Efficient
- Compatible With Gasoline, Diesel, Methanol And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- 625 HP Power Support
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation (Vapor Lock)
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel, No Problem)
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out
- Compact, Lightweight Design, Less Than 2.5Lbs. Overall Length 8”, Pump Diameter 2”
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH is engineered to deliver reliable and efficient fuel flow for high-horsepower engines. It supports up to 625 horsepower and offers variable speed control for precise fueling according to your engine’s demands. Compatible with gasoline, diesel, methanol, and ethanol fuels, this pump provides versatility for diverse performance applications.
Construction and Appearance. Crafted from billet aluminum with an anodized finish per MIL-A-8625 Type II, this pump combines durability and lightweight design at less than 2.5 pounds. Its compact size (8 inches length, 2 inches diameter) is ideal for in-tank mounting. The pump uses fluorosilicone static seals that ensure long life and multi-fuel resistance, delivering robustness with advanced material technology.
Installation. Installation is straightforward with a flange-mounted SAE 10-bolt pattern that fits fuel cells or fabricated reservoirs without the need for special modifications or drilling. This design simplifies setup for professional installers and experienced enthusiasts alike.
Warranty. This fuel pump is backed by a limited lifetime warranty, providing added peace of mind.
Application. Suitable for universal applications, but some adaptation may be required depending on installation conditions.
Fuelab 93901
