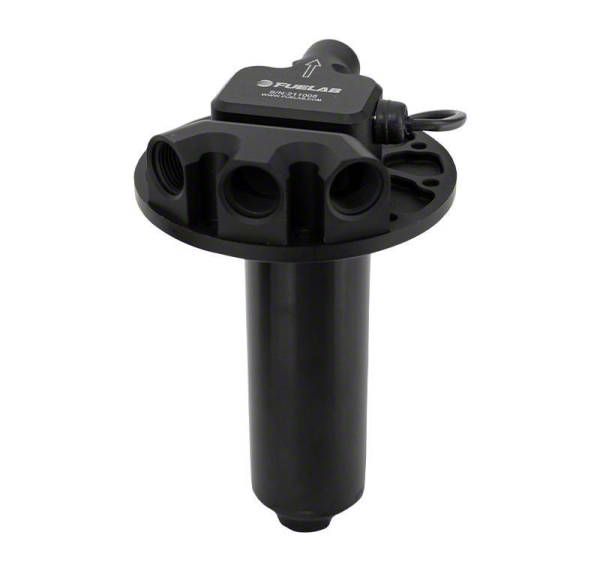

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item 473038
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 400 LPH @ 45 PSI, 125 PSI Max Operating Pressure
- Rated Up To 850 HP
- Compatible With Gasoline, Diesel, Methanol, and Ethanol
- Twin Screw Rotor Pumping Mechanism
- Higher Efficiency With Less Current Draw and Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation (Vapor Lock)
- 12 to 16 Volt Vehicle Electrical System Compatibility
- Variable Duty Motor Speed
- Lightweight, Super-Efficient DC Brushless Motor
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out or Corrode
- Wet Motor Design With No Dynamic Shaft Seals
- Compact, Lightweight Design Under 2.5 Pounds
- Overall Length 8 Inches, Pump Diameter 2 Inches
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells or Fabricated Reservoirs
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard or Port Style -8AN Fittings
- Fits Universal; Some Adaptation May Be Required
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH is a high-efficiency in-tank fuel pump designed to deliver reliable fuel flow at pressures up to 125 PSI. Engineered to support up to 850 horsepower, it is well-suited for gasoline, diesel, methanol, and ethanol applications where stability and efficiency are critical. This pump enhances engine performance by providing superior priming capabilities and improved resistance to vapor lock.
Construction and Appearance. Constructed from billet aluminum with a MIL-A-8625 Type II anodized finish, this compact pump measures 8 inches in length and 2 inches in diameter, weighing less than 2.5 pounds. The design features a twin screw rotor pumping mechanism with multi-fuel compatible fluorosilicone static seals, combining durability with a lightweight and corrosion-resistant build ideal for demanding racing and high-performance environments.
Installation. The flange-mounted SAE 10-bolt pattern allows for straightforward installation into fuel cells or fabricated reservoirs with minimal modification required. No extensive drilling or complex mounting procedures are typically necessary, making installation accessible for professional technicians and experienced enthusiasts alike.
Warranty. This fuel pump is backed by a limited lifetime warranty, providing assurance of long-term reliability and quality.
Application. Fits universal; some adaptation may be required.
Fuelab 93902
