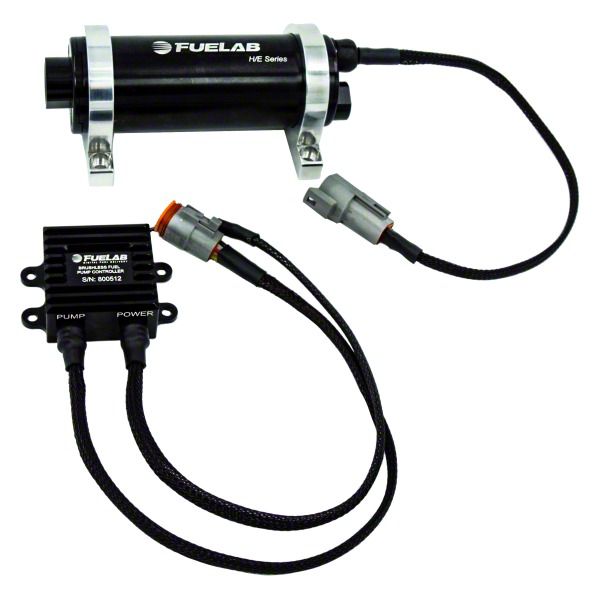

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH (Universal; Some Adaptation May Be Required)
Item 472978
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1500HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump
- Limited Lifetime Warranty
- 625 LPH At 45PSI, 125PSI Max, 13.5V Rated Up To 1500HP
- Compatible With Gasoline, Diesel, Methanol, And Ethanol
- Twin Screw Rotor Pumping Mechanism
- 125PSI Max Operating Pressure
- Higher Efficiency Means Less Current Draw And Less Noise
- Superior Priming Capabilities
- Greater Resistance To Cavitation And Vapor Lock
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
- Powerful High Flux Density Neodymium Rare Earth Magnets
- No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible
- Wet Motor Design Without Dynamic Shaft Seals That Can Wear Out
- 12 To 16 Volt Vehicle Electrical System Compatibility
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
- Continuous Duty Motor Speed
- Compact Lightweight Design: Less Than 3lbs, Overall Length 7.13 Inches, Diameter 2.0 Inches
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II
- Includes Two Billet Aluminum Mounting Brackets
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
- Accepts Standard Or Port Style -8AN Fittings
- Fits Universal Applications; Some Adaptation May Be Required
Description
Advanced Fuel Delivery. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 625 LPH is engineered for high-performance applications requiring reliable fuel delivery up to 1500 horsepower. Designed to provide consistent flow and pressure for street or strip EFI systems, it ensures optimal engine performance under demanding conditions. The pump’s compatibility with gasoline, diesel, methanol, and ethanol fuels enhances versatility across different engine setups.
Construction and Appearance. Built from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump offers durability and corrosion resistance. Its compact, lightweight design weighs less than 3 pounds and features high-quality fluorosilicone seals for multi-fuel compatibility and long service life. The included anodized aluminum mounting brackets complement the pump’s robust construction.
Installation. Installation is straightforward, with no drilling typically required thanks to the included billet aluminum mounting brackets. The pump’s compact form factor allows for easy integration into existing systems using standard -8AN fittings.
Warranty. Backed by a limited lifetime warranty, the pump offers confidence in durability and long-term performance.
Application. Suitable for universal applications; however, some adaptation may be necessary depending on specific vehicle configurations.
