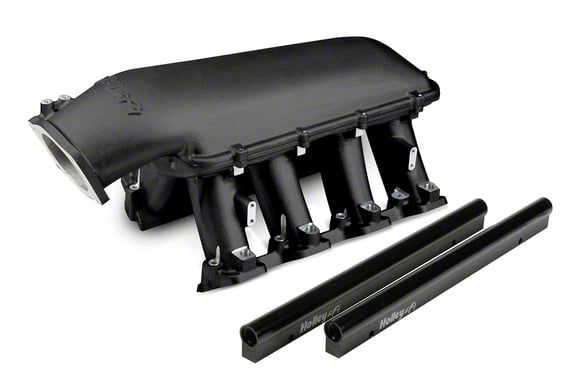

Holley Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount; Black (98-02 5.7L Camaro)Find parts that fit my vehicle
Item CC19043
Sale
On Sale
-10% $1,169.96 pair Was $1,299.95
Military, Medical & First Responders
$58.50 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Base Designed To Be Modular In Configuration To Accept A Wide Range Of Carbureted And EFI Tops
- EFI Fuel Rails Machined For -8AN O-Ring Fittings With Passages Large Enough To Accommodate High Fuel Flows And Dampen Pressure Pulsations
- Cost Effective Alternative To Fabricated Sheet-Metal For High-Performance Applications Where Induction System Height Is Not Limited
- Outstanding Potential For Naturally Aspirated And Forced Induction Applications In The 6.0 To 7.0+ Liter Range
- Runner Length And Tapered Cross-Section Designed To Perform Well For A Wide Range Of Engine Configurations
- Cast Aluminum Construction
- Mounting Flange Gasket Type Is Standard LS3 Molded O-Ring
- Total Height With 92/102mm EFI Plenum Top Is 12.32 Inches To The Lifter Valley Cover Flange On Engine Block
- Runner Length Is 6.58 Inches With As-Cast Runner Cross-Sectional Area Tapering From 4.25 In² To 2.53 In²
- Port Size Is 2.49 Inches Height By 1.21 Inches Wide
- Plenum Top Gasket Type Is 3/32 Inch Round O-Ring Cord
- Base Plenum Top Mounting Flange Height Is 8.42 Inches To The Lifter Valley Cover Flange On Engine Block
- Throttle Body Flange Location With 92/102mm EFI Plenum Top: Height Is 8.42 Inches From Engine Block Lifter Valley Cover Flange, Longitudinal Location Is 3.84 Inches Forward From Engine Block Front Flange, Angle Is 25 Degrees Down From Vertical
- Basic Operating RPM Range From 3500 To 8000 RPM
- Category Is Engine
- Cylinder Head Port Shape Is Cathedral
- Deck Height Is 9.24 Inches
- EGR Port Not Included
- Emission Code Is 4
- Engine Compatibility Is GM LS1/LS2/LS6
- Flange Style Is EFI
- Fuel Rail(s) Included
- Fuel System Type Is EFI
- Gasket Or Seal Included
- Grade Type Is Performance
- Manifold Type Is Hi-Ram
- Material Is Aluminum
- Plenum Finish Is Black
- Product Type Is Intake Manifold
- Rear Maximum Height Is 11 Inches
- Recommended Use Includes Forced Induction
- Removable Top/Lid Included
- Single Plane Type
- Throttle Body Bore Diameter Is 92 MM
- Throttle Body Gasket Included
- Throttle Body Not Included
- Vacuum Ports Included
- Manufacturer's Limited 90 Day Warranty
- Fits Engines Using GM LS1/LS2/LS6 Families, Including 1998-2002 5.7L Camaro Applications
Description
High-Performance Intake Solutions. The Holley Hi-Ram EFI Intake Manifold with 92/102mm Throttle Body Mount; Black is engineered as a modular platform suitable for a broad variety of carbureted and EFI applications. Designed to maximize airflow efficiency and support high-horsepower builds, it is ideal for both naturally aspirated and forced induction engines in the 6.0 to 7.0+ liter range operating up to 8000 RPM.
Construction and Appearance. Crafted from cast aluminum, this intake manifold combines durability with lightweight performance. It features a black plenum finish and uses molded O-ring gaskets for a secure seal, providing aggressive styling that complements race-bred engine builds.
Installation. This manifold is designed for use without the need for drilling or fabrication. However, due to its tall profile and configuration, additional supporting modifications may be necessary depending on the engine setup and vehicle application.
Warranty. This product includes a manufacturer’s limited 90-day warranty covering defects in materials and workmanship.
Application. Suitable for GM LS1/LS2/LS6 engine families, with applications including 1998-2002 5.7L Camaro platforms. Fitment depends on vehicle configuration and supporting components.
Holley 300-122BK
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hi-Ram EFI Intake Manifold
4.9
Reviews of Holley Intake Products (8)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Camaro
- Z28 - 98, 99, 00, 01, 02
- Z28 SS - 98, 99, 00, 01, 02
