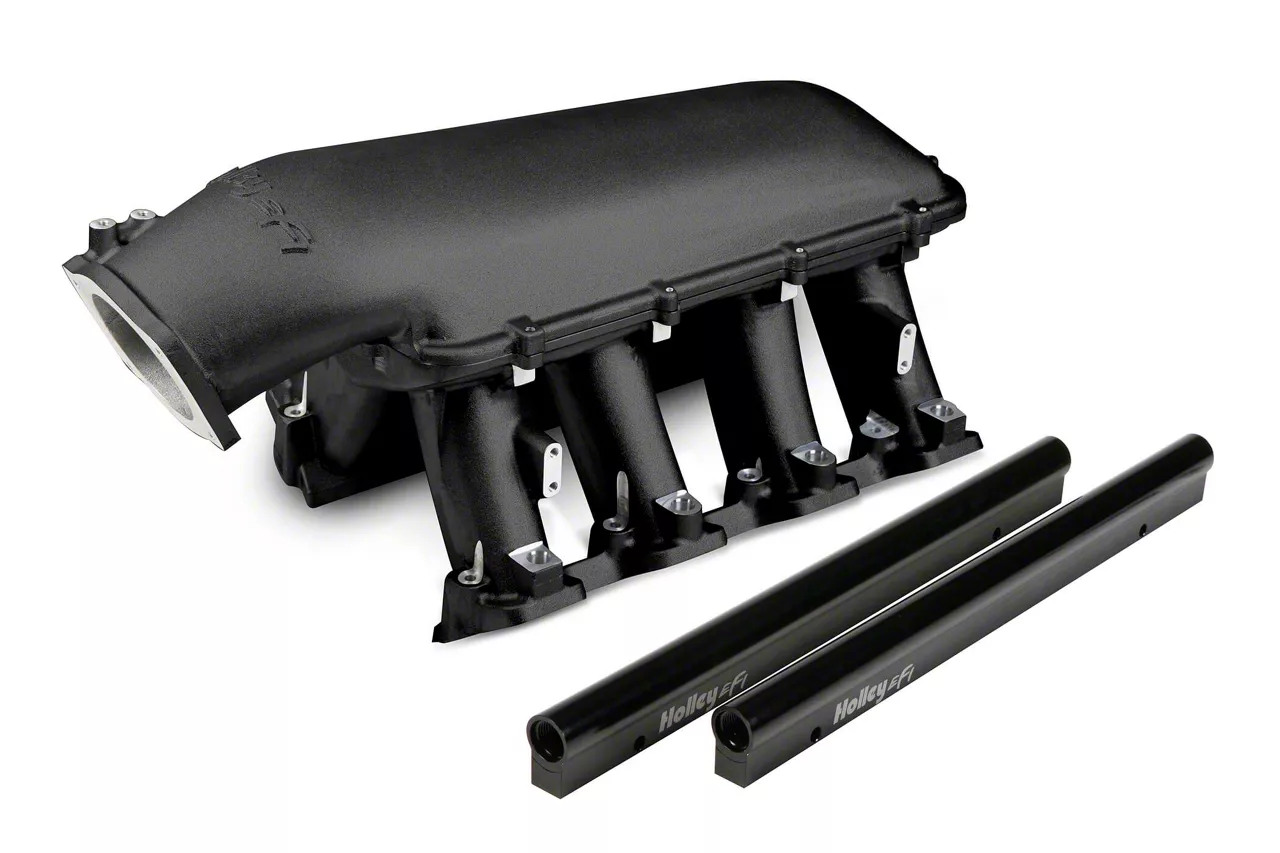

Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount; Black (08-13 6.2L Corvette C6)
Find parts that fit my vehicle Item CV5197
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- EFI Hi-Ram Intake For 1 X 92mm GM LS3/L92 Throttle Body - Longitudinal Mount Plenum Top
- Black Ceramic Coating
- Legal For Racing Use Only Vehicles
- Cost-Effective Alternative To Fabricated Sheet-Metal For High-Performance Applications
- Designed For Engines Between 6.0 To 7.0+ Liters
- Max Power At 7000-8000+ RPM
- Cast Aluminum Construction
- Runner Length Of 6.50 Inches With Tapered Cross-Section
- Base Designed To Accept A Wide Range Of Carbureted And EFI Tops
- Throttle Body Flange Location: 8.42 Inches Height, 3.84 Inches Forward From Engine Block Front Flange At 25 Degree Angle
- Plenum Top Gasket Type Is 3/32 Inch Round O-Ring Cord
- Mounting Flange Gasket Is Standard LS3 Molded O-Ring
- Port Size: 2.49 Inches Height By 1.21 Inches Wide
- Removable Top/Lid
- Single Plane Design
- Vacuum Ports Included
- Includes Fuel Rails And Throttle Body Gasket
- Recommended For Forced Induction and Naturally Aspirated Engines
- Total Height With 92/102mm EFI Plenum Top Is 12.32 Inches To Lifter Valley Cover Flange
- Fits 08-13 6.2L Corvette C6
Description
High-Performance Intake. The Holley GM LS3/L92 Modular EFI Hi-Ram Intake Manifold with 92mm LS Throttle Body Mount; Black is engineered to optimize airflow for naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range. Designed to deliver peak power at high RPMs (7000-8000+), it is an excellent choice for performance builds requiring enhanced induction efficiency and bold race-inspired styling.
Construction and Appearance. Constructed from durable cast aluminum, this intake features a black ceramic coating that provides a sleek, aggressive appearance while offering resistance to corrosion and heat. The design includes tapered runners and a longitudinal mount plenum top that enhance airflow dynamics and overall engine performance.
Installation. The manifold is designed to bolt directly to LS3/L92 cylinder heads. Installation is straightforward for experienced enthusiasts but may require specific adjustments based on the application.
Warranty. This intake manifold comes with a manufacturer’s limited 90-day warranty covering defects in materials and workmanship.
Application. Specifically made to fit the 2008-2013 6.2L Corvette C6 engines, providing an ideal upgrade for those seeking increased performance and styling enhancements tailored to this application.
Holley 300-116BK
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold Assembly
- Installation Hardware
- Installation Instruction
5.0
Customer Reviews (1)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Corvette
- Base - 08, 09, 10, 11, 12, 13
- Grand Sport - 10, 11, 12, 13
- ZR1 - 09, 10, 11, 12, 13
