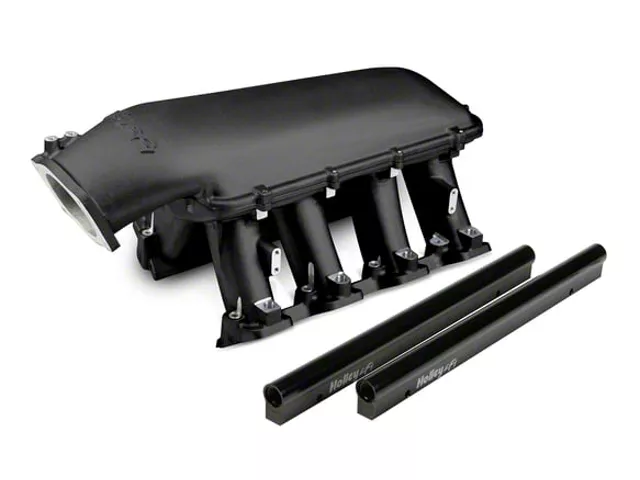

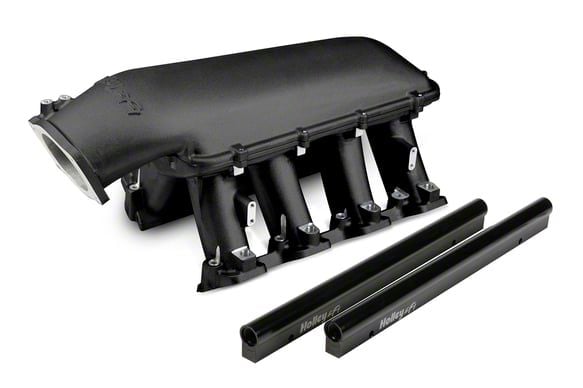

Holley Corvette Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount; Black 300-122BK (97-04 Corvette C5; 05-07 6.0L Corvette C6)

Name: Holley Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount; Black (97-04 Corvette C5; 05-07 6.0L Corvette C6)
Brand: Holley
SKU: CV5215
Price: 1199.95 USD
Availability: InStock

Product Information

Features, Description, Q&A, Specs & Installation

Features

Emissions Legal For Sale Or Use On Racing Use Only Vehicles
Modular Base Designed To Accept Wide Range Of Carbureted And EFI Tops
Cost Effective Alternative To Fabricated Sheet-Metal For High Performance
Compatible With LS1, LS2, LS6 Cathedral-Port Cylinder Heads For Naturally Aspirated And Forced Induction
Applications Include Drag Race, Muscle Car, Marine, Off-Road, Sandrails, Pulling Trucks, Track, Street-Rods
Engine Range 4.8 To 7.0+ Liters Producing Max Power At 7000-8000+ RPM
Runner Length 6.58 Inches With Tapered Cross-Section From 4.25 Sq In To 2.53 Sq In
Cast Aluminum Construction
Standard LS3 Molded O-Ring Mounting Flange Gasket
Total Height With 92/102mm EFI Plenum Top Is 12.32 Inches From Lifter Valley Cover Flange
Port Size 2.49 Inches Height By 1.21 Inches Wide
3/32 Inch Round O-Ring Cord Plenum Top Gasket
Base Plenum Top Mounting Flange Height 8.42 Inches From Lifter Valley Cover Flange
Throttle Body Flange Location Height 8.42 Inches; Longitudinal 3.84 Inches Forward; 25 Degree Down Angle
Basic Operating RPM Range 3500-8000 RPM
No CNC Porting
Cathedral Cylinder Head Port Shape
No EGR Port
EFI Fuel System With Included Fuel Rails
Single Plane Hi-Ram Manifold Type
Fuel Injectors Not Included
Throttle Body Bore Diameter 92 MM; Gasket Included; Throttle Body Not Included
Vacuum Ports Included
Manufacturer's Limited 90 Day Warranty
Fits 97-04 Corvette C5; 05-07 6.0L Corvette C6

Description

High-Performance Intake Manifold. The Holley Hi-Ram EFI Intake Manifold with 92mm Throttle Body Mount in black is engineered to enhance engine power and efficiency for GM LS family engines equipped with cathedral-port LS1, LS2, and LS6 cylinder heads. It provides superior airflow and pressure management, making it suitable for naturally aspirated or forced induction applications within a 3500 to 8000+ RPM range. This manifold is designed for racing use vehicles only and is not emissions legal for street use.

Construction and Features. Made from durable cast aluminum with a black finish, this modular manifold accepts a wide range of carbureted and EFI tops. It includes EFI fuel rails machined for high-flow -8AN O-ring fittings to ensure optimal fuel delivery. The manifold features a large plenum and tapered runners with a cathedral port shape to maximize performance. Vacuum ports are included; fuel injectors and throttle body are not included, though a 92mm throttle body bore and gasket are provided.

Installation. This manifold is designed as a high-performance aftermarket component for specific LS cathedral port engines and should be installed by an experienced mechanic familiar with race-oriented intake systems. It is not intended as a direct replacement for stock manifolds, given its single plane Hi-Ram design and substantial overall height of 12.32 inches from the lifter valley cover flange.

Warranty. Manufacturer's limited 90-day warranty applies.

Application. Specifically fits the 1997-2004 Corvette C5 and the 2005-2007 6.0L Corvette C6, providing an effective upgrade for these performance vehicles.

Holley 300-122BK
