Installation Time
(approx) 1 Hour
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

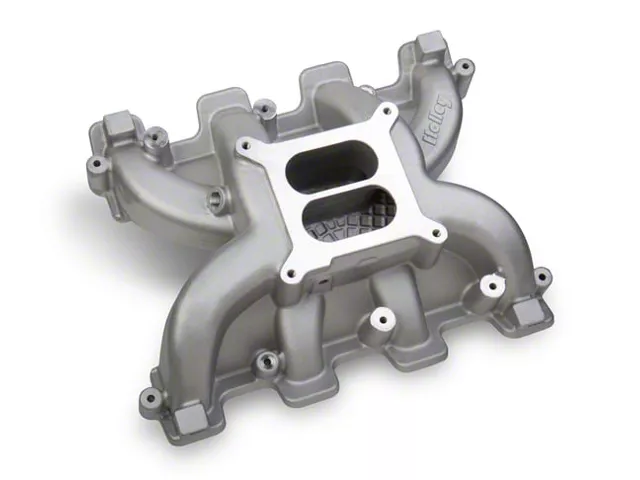

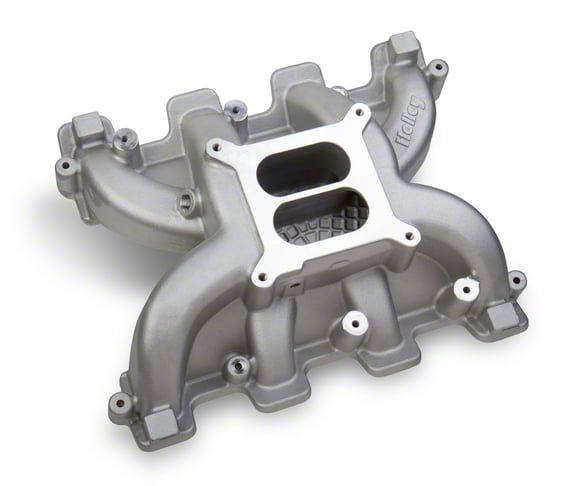

Holley LS Dual Plane Intake Manifold (97-04 Corvette C5; 05-07 6.0L Corvette C6)Find parts that fit my vehicle
Item CV5224
Sale
On Sale
-10% $383.36 kit Was $425.95
Military, Medical & First Responders
$19.17 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- All Gm Ls Gen Iii Or Iv Engines Equipped With Ls1/Ls2/Ls6 Style Cathedral Port Cylinder Heads
- Dual Plane Design Optimized For Low End Torque While Pulling To 6500 Rpm
- O-Ring Cylinder Head Mounting Flange Gaskets Provide Oem Style Seal For Easy Installation
- Optimized Runner Layout And Constant Cross Sectional Area For Broad Torque Curve
- Cast Aluminum Construction With Efficient Casting Design For Light Weight And Quality
- Includes Viton� O-Rings For Sealing
- Compatible With Carbureted Or Throttle Body Efi Street Applications
- Power Band From 1500-6500 Rpm
- Port Size Of 2.72" Height X 1" Wide
- Front Height Of 5.07" From Front Lifter Valley Cover To Carb Mounting Flange
- 4150 Square Bore Flange
- Minimum Carb Flange Height Fits Vehicles With Minimal Or No Hood Modifications
- Mounting Flange Gasket Type Is O-Ring
- Weight Is 15.14 Lbs
- Rear Height Of 6.14" From Rear Lifter Valley Cover To Carb Mounting Flange
- Vacuum Ports Included
- Fits 97-04 Corvette C5; 05-07 6.0L Corvette C6
Description
Performance Intake Solution. The Holley LS Dual Plane Intake Manifold is designed to enhance engine performance by optimizing airflow for low-end torque while maintaining power up to 6,500 RPM. Ideal for street use, it supports both carbureted and throttle body EFI applications, delivering a broad and usable powerband for GM LS engines.
Construction and Appearance. Crafted from cast aluminum, this intake manifold benefits from a precise casting process that ensures consistent wall thickness and light weight. Its natural finish and efficient design provide durability and a clean, high-quality look suitable for performance builds.
Installation. Installation is straightforward due to the included O-ring mounting flange gaskets that offer an OEM-style seal and simplify the process. No drilling or modifications are necessary, making it a direct fit for compatible LS engines.
Warranty. This intake manifold includes a manufacturer�s limited 90-day warranty.
Application. Designed to fit the 97-04 Corvette C5 and the 05-07 6.0L Corvette C6, ensuring compatibility with these specific models and engine configurations.
Holley 300-130
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold
- Installation Hardware
4.9
Reviews of Holley Intake Products (8)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Corvette
- Base - 05, 06, 07
