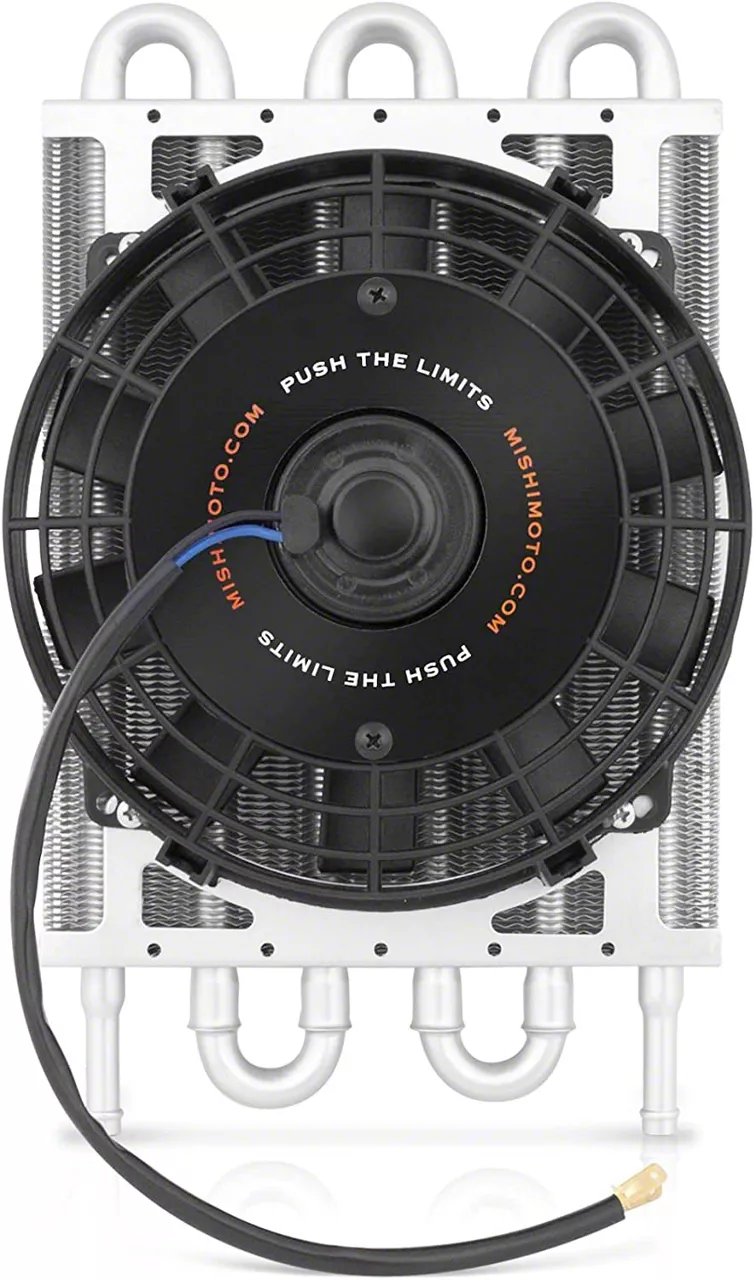

Mishimoto Heavy Duty Automatic Transmission Cooler w/ Electric Fan (79-14 All)

Market Price $172.49 You Save 13% ($22.50)
Starting At

$149.99

FREE Shipping

  • Item 80226
  • MPN# MMOC-F

Local Install Shops

Quoted installation from $125

View 3 Shops

near 19355 (change)

Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

In Stock Ships same business day.
Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Reduces Transmission Temperatures
    • 2 Row, Tube and Fin Aluminum Construction
    • 8” Electric Fan Included
    • Width: 5.5", Length: 12.5", Thickness: 3.25"
    • Straight Forward Installation
    • Limited Lifetime Warranty
    • Designed for use with Automatic Transmissions
    • Fits 1979-2018 Automatic Mustang Models
    Run Cooler. Excessive heat is bad, especially when it comes to an automatic transmission. But now you can keep your automatic Mustang running cooler by installing a Mishimoto Heavy Duty Automatic Transmission Cooler that includes an Electric Fan. A Transmission Cooler is inexpensive insurance that will extend the life of your Pony's transmission allowing it to perform at its best.

    Superior Design. Mishimoto Performance manufactures its Automatic Transmission Cooler from 100% aluminum for its ability to quickly dissipate unwanted heat. Mishimoto engineered its Cooler with a two row, tube and fin radiator design to work in conjunction with a high flow 8" electric fan. This radiator and fan combination ensures low transmission temperatures. Overall dimensions - width: 5.5", length: 12.5", thickness: 3.25".

    “No Questions Asked” Warranty. Mishimoto Performance warrants all of its products to be free of defects in materials and workmanship with its “no questions asked” limited lifetime warranty policy. Please click here to see the manufacturer's warranty for complete details.

    Application. This Universal Mishimoto Performance Heavy Duty Automatic Transmission Cooler with Electric Fan is designed to fit any 1979-2018 Ford Mustang model that is equipped with an automatic transmission.

    Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details

    What's in the Box
    • (1) Transmission Cooler
    • (2) Brackets
    • (10) Screws
    • (2) Bolts
    • (2) Nuts
    Installation Info
    Tech Specs
    8" Fan Specifications.
    • CFM: 1100
    • Fan RPM: 2800
    • Amps: 4
    • Overall Size. Width: 5.5", Length: 12.5", Thickness: 3.25"
    Will it fit my Mustang?
    • Bullitt - 01, 08, 09
    • Cobra - 93, 94, 95, 96, 97, 98, 99, 00, 01, 03, 04
    • Cobra R - 93, 95, 00
    • GT - 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
    • GT500 - 07, 08, 09, 10, 11, 12, 13, 14
    • LX - 87, 88, 89, 90, 91, 92, 93
    • Mach 1 - 03, 04
    • Other - 79, 80, 81, 82, 83, 84, 85, 86
    • V6 - 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14

    Fits Automatic Transmissions Only

    You Might Also Like

    Customer Photos (10) Submit Your Photo

    View All 10 Photos

    More Products You Might Like

    Questions & Answers (5)

    5 Top Rated Questions

    Stock Radiator? Do you have to have the Mishimoto radiator for this to fit or can it be hooked up with just the stock 2004 v6 radiator? Thanks!!

    • No, it works with any radiator, including stock.

    Helpful (2) Show 1 more answer

    In the photos I don't see other people having the air bag sensors in the way in the grill do other people move these or what?

    • The Mishimoto Heavy Duty Automatic Transmission Cooler is designed for universal fitment, and should not interfere with your OEM crash sensors, however, depending on the year of your Mustang, the mounting location may vary from those pictured.

    Helpful (0)

    Does the fan push or pull the air through the cooler.

    • The Mishimoto Heavy Duty Automatic Transmission Cooler w/ Electric Fan is going to pull air from the front of the vehicle and push the air through the other side.

    Helpful (0)

    is there a Heat Sensor which can measure the heat in order for the fan to start and stop at certain point ? is there a Heat Sensor which can measure the heat in order for the fan to start and stop at certain point ?

    • It doesn't come with it but u can add one to it.

    Helpful (0)

    Will this take the place of the factory cooler in the radiator Does it need to be ran in conjunction with the factory cooler in the radiator?

    • you can run it either way, u can use with or w/out the factory cooler

    Helpful (0) Show 2 more answers
    Post Your Question

    People Who Bought This Item Also Bought

    Customer Reviews (12) Write a Review

    Overall Rating 4.8

    out of 5 stars

    Installation Time:Afternoon

    Installation Cost:$100-$250

    • Performance Gain 4.666667 4.7
    • Fit 4.777778 4.8



    • 5/5

      Installation Time: Less than 1 Hour

      August 13, 2018

      Really nice

      I thought it would not be a good investment but apparently I think that the work that I have to do is done

      OmarR

      Year: 2010 Submodel: GT

      Helpful (0)

    • 5/5

      Installation Time: Afternoon

      June 19, 2018

      the best cooler

      the best couldn't be happier ,keeps the transmission running at good temperature . it don't even over heat when running for long periods. Great for convertor cars..

      Blackmamba

      Year: 2014 Submodel: GT

      Helpful (1)

    • 5/5

      Installation Time: Shop Install

      Installation Cost: $100-$250

      March 12, 2018

      Excellent price, superior fit and top quality!

      For the price and the piece of mind that comes w/this Mishimoto H/D Cooler for my AT, let me tell you what! It's well worth it to have my tranny oil running cooler, thus I feel more consistently confident ripping the canyons of Colorado when the weather is pushing well above 85 degrees @ 8,000 feet of top notch elevation! Thanks American Muscle.

      555666

      Year: 1992 Submodel: GT

      Helpful (1)

    • 5/5

      Installation Time: Afternoon

      August 07, 2017

      Amazing product

      After I blew out my old transmission and had to replace the transmission torque converter and trans cooler via metal chunks in the pan this was definitely the best option performance-wise and price wise it has been amazing ever since have been tracking the trans temp with my tuner and it has stayed cool and ran better than ever

      JC

      Year: 2006 Submodel: GT

      Helpful (1)

    • 4/5

      Installation Time: Less than 1 Hour

      August 02, 2017

      Works well

      I have no idea what the normal operating temperature of the 4R70W is but after installing a 2400 converter temps would rise above 230° sitting in traffic, used a barb fitting kit from auto zone and 8 feet of 11/32" line (was a little tight, should have bought 3/8" but couldn't find any). Ran the lines out of the cooler in the radiator into this one and back into the hard line (stock fitting on the radiator side of the hard line didn't work too well with the barb kit I got, ended up cutting it off, putting on the fitting that goes into the transmission and reflaring the line.) Now temps stay around 180°.

      David

      Year: 2000 Submodel: GT

      Helpful (1)

    • 5/5

      August 31, 2016

      Trans cooler

      This trans cooler wasn't big enough to just run the 6r80 alone it has to be ran in line with the factory trans cooler but when it was all hooked up and the fan kicked on at red lights the temps went down or held the same

      Chevykilla

      Year: 2012 Submodel: GT

      Helpful (2)

    • 5/5

      August 26, 2016

      Awesome

      This transmission cooler is one of the best,, works great and looks nice. My transmission has never been cooler. Thanks AM for another great product.

      Eezy

      Year: 1995 Submodel: GT

      Helpful (2)

    • 5/5

      Installation Time: Afternoon

      October 17, 2014

      Easy

      Fan is well built and easy to install. May want to consider keeping it out of the wind flow (aka behind bumper) and then either operate with a manual switch or a temperature probe control. That way the normal highway air flow is not impeded but when temps rise and air flow is limited, the cooler can do it's thing!

      Camper83

      Year: 2013 Submodel: Other South Florida

      Helpful (2)

    • 5/5

      Installation Time: Afternoon

      August 18, 2014

      Great part!!

      Got this after installing my 3k stall torque converter to keep the trans cool. Ran it in series after the stock cooler in the radiator. Simply plumb it in with some nice brass fittings and some 3/8" TRANS COOLER line. (make sure you buy trans cooler line) I ran a relay with the ignition trigger off the coolant bottle. Tuck the relay under the cover next to the coil. The fan sounds good, and really pushes the air. Installed on my LX Foxbody. Submitted a few pics.

      DetroitGasMan

      Year: 1991 Submodel: Other Detroit, MI, USA

      Helpful (2)

    • 5/5

      Installation Time: Afternoon

      January 24, 2014

      Must have for auto trans

      I was having problems with my transmission overheating, so a transmission cooler was suggested to me. After researching this one I decided to get it. My transmission no longer overheats. Installation wasn't that bad. It took about an hour/ hour an a half. Overall I would recommend this product to anyone that has an auto tranny.

      Awal11

      Year: 2002 Submodel: GT Birmingham, AL, USA

      Helpful (2)

    • 4/5

      Installation Time: Shop Install

      Installation Cost: $250-$500

      April 27, 2012

      Great transmission product

      Works as described and a very wise choice for the transmission!

      Domrican82

      Year: 1997 Submodel: GT Queens ny

      Helpful (5)

    • 5/5

      Installation Time: Afternoon

      February 24, 2012

      just as expected

      it has a very powerful fan, can be mounted anywhere. and cools the transmission very quickly at the drag strip or on the street.. what more could you ask for from a transmisson cooler?

      justin313

      Year: 2005 Submodel: GT boerne, texas

      Helpful (7)
