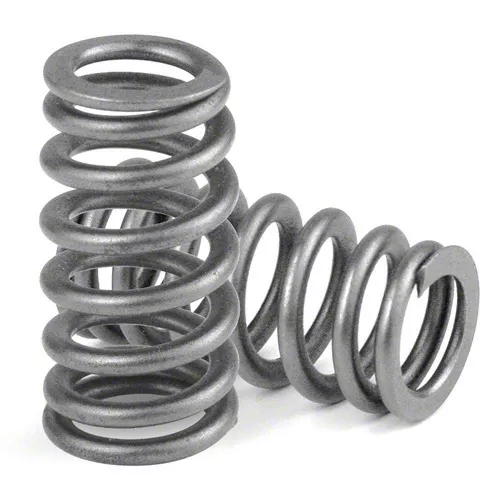

Comp Cams Valve Springs Beehive - 16 (96-04 GT)

$0.00
Market Price $239.99 You Save 14% ($34.00)
Our Price

$205.99

FREE Shipping

  • Item 30102

Will this fit your Vehicle?

In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Turn More RPM
    • OEM Type Durability
    • Lighter Weight
    • Superior Quality
    • Set of 16 Springs
    • Fits 1996-2004 GT Mustangs

    Review & Installation Video

    Review & Install Video

    So COMP Cams Beehive valve springs we're taking a quick look at today are going to be a great option for any of my '96 through '04 two-valve owners out there that are thinking about getting into a hotter cam, or might actually be in the process of tearing into their motor. Install-wise, depending on if you're pulling your heads, which I would definitely suggest doing, you're looking at a full three out of three wrenches on the difficulty meter here, and easily a day's worth of work. So I can't stress it enough here, guys. If you're going to be doing cams, you're going to have to get into a set of springs, because it's going to help your motor reach its full potential. With a 0.550 maximum lift, these springs were designed specifically for the modular motor to help you get increased valve train stability, as well as a much lighter valve train. So keeping factory springs and throwing an upgraded cam in and wringing your car out can cause your valves to float, because they essentially can't keep up with that upgraded, lifted lobe. So because these springs feature a higher rate and have a unique construction, they're going to be able to accommodate that higher-profile cam, without running into the issue of floating a valve. Now, when you float your valves, you're essentially keeping your intake and exhaust ports open at the same time. If that sounds bad, it's because it really is. So that can kill performance. It can hurt your brand-new cams. You can bend a valve. You could drop a cylinder. A lot can go wrong here, guys. But talking about that unique Beehive design a little bit more here, guys, this spring is going to drop weight significantly over your factory equipment. So these were made to reduce moving mass, which is going to result in a lighter retainer as well. Now, this is going to let you push your motor higher into the RPM range, which ultimately is going to result in you getting that much more power up top. Now, expect to be spending about $180 to $200 to get these onto your car. I can't stress it enough. It's an absolute must. Furthermore, you should definitely pick up COMP's retainers as well, just to ensure that you're running at 100%. Install-wise here, guys, this is a full three out of three wrenches. That's no surprise here. Expect to be wrenching for about a full day, maybe even over the course of the weekend. Now, this is something that's going to absolutely require the entire toolbox. I'm going to throw it out there that you should have the Ford Service Manual there as well, just to make sure you've got all your torque specs and patterns when you're buttoning everything back up. So at a glance here, guys, you're going to need to pull that intake manifold. We're talking valve covers, spark plugs, crank shaft pulley and a damper, and a ton of other components here. Now, if that sounds labor-intensive, guys, it's because it is. I, honestly, would not have any issue taking this to a speed shop to have them installed. That's just me, due to the fact that this is going to be a pretty labor-intensive job here. But if you're looking for a good challenge, this can absolutely be done in your garage. So that's going to wrap up my quick review of COMP's beehive valve springs, fitting your '96 through '04 Mustang GT, which can be found right here at americanmuscle.com.

    Make More Power. Reduce valvetrain weight for more power and OE type reliability from your new camshafts with Comp Cams Beehive™ springs. These springs are a revolutionary single-spring design that reduces weight without sacrificing strength, helping your engine to achieve higher peak rpm and allowing you to use higher-lift, more aggressive camshafts without sacrificing reliability.


    Reliable and Durable. If you want to upgrade your Mustang to a hot cam but are concerned about long term reliability, Comp Cam's Beehive springs are the perfect addition to your Pony. These unique springs will keep your upgraded valvetrain in line, while delivering the power you want.

    Application. These Comp Cams Beehive springs are designed for the 1996-2004 Mustang GT with the 4.6L two valve V8 engine. They are sold as a complete set of 16 springs.

    Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

    MPN# 26113-16

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    What's in the Box
    • (16) Valve Springs
    Installation Info
    Tech Specs
    Specifications:
    • Fits 1996-2004 4.6 2 valve V8 Mustangs
    • Sold as a set of 16 springs
    • OD: Top .959" Bottom 1.061"
    • ID: Top .636" Bottom .738"
    • Seat Pressure: 93 lbs @ 1.570''
    • Open Pressure: 198 lbs @ 1.020''
    • Coil Bind: .952"
    • Spring Rate: 191 lbs/in
    Will it fit my Mustang?

      Customer Photos (6) Submit Your Photo

      View All 6 Photos

        Questions & Answers (13)

        5 Top Rated Questions

        Do these springs only work with comp cams or do they work with other brand cams?

        • These springs are compatible with other brand cams but to ensure proper fitment we would recommend staying with the same brands.

        Helpful (1)

        Can you use the stock retainers and keepers with these springs?

        • We do not recommend using the Comp Cams Valve Springs Beehive with the OEM keepers and retainers. These should be installed with new keepers and retainers for safe operation of the valve train.

        Helpful (1)

        Are these 90lb or 120lb springs?

        • The set of 16 Comp Cams Valve Springs Beehive will have the spring rate of 191 lbs/in.

        Helpful (1)

        will thses fit stage 2 cam?

        • Hello! Yes the Comp Cams Valve Springs Beehive will fit the Stage 2 Comp Cams.

        Helpful (1)

        Is this the complete set of springs? do I only need to purchase one set or multiple ones? their gonna be on a 99 mustang gt.

        • This item will come with all 16 valve springs that you will need for installation.

        Helpful (1)
        Post Your Question
        8 More Questions
        Will these springs work with trickflow cams. Part # TFS‐51802002. Thanks 0 answer
        what happened to the keepers and retainners for these springs?will them off my head work? 1 answer
        Do these work with stage 1 xe262ah cams? 1 answer
        What will happen if you use the valve springs with stock cams ? 1 answer
        Can u put these on a stock 4.6 gt motor.? Only thing mine got is bbk cold air intake truck flow head for the intake smaller under drive pulleys and flowmaster super 44s 1 answer
        Will these work with a stage 3 cam? 1 answer
        I need .969" OD 636 bottom OD 738 for my application will thede springs work 1 answer
        What's the max lift for these springs? Can they be run with a stage 3 cam? 1 answer

          Customer Reviews (27) Write a Review

          Overall Rating 4.6

          out of 5 stars

          Installation Time:Full Day

          Installation Cost:$500-$1000

          • Performance Gain 4.142857 4.1
          • Fit 4.818182 4.8



          • 5/5

            Installation Time: Weekend

            June 17, 2019

            Awesome

            Works very well with the stock heads and the stage two comp cams that I'm running now

            Gwebb03

            Year: 2003 Submodel: GT

            Helpful (0)

          • 5/5

            January 14, 2019

            Good

            Product was on time and exact!!! I strongly recommend this mod helps your car if your considering camming it.

            RaulG

            Year: 2002 Submodel: GT

            Helpful (1)

          • 5/5

            Installation Time: Full Day

            November 01, 2018

            comp cams valve springs

            awesome if your upgrading your cams especially if matched with the comp cams retainers.

            AlfredoA

            Year: 2002 Submodel: GT

            Helpful (3)

          • 5/5

            June 13, 2018

            Springs

            Much needed if going to these level cams original spring can’t support the new cams must buy

            PedroG

            Year: 2003 Submodel: GT

            Helpful (6)

          • 2/5

            Installation Time: Afternoon

            May 10, 2018

            Waste of money

            Bought because comp cams recommends them and am said they need to be installed when I did my stage 2 cam swap. My stock springs were just as stiff and took just as much force to compress. Very little difference in stiffness. They were about a sixteenth taller than stock side by side and coils were thinner so unless your going high lift I don't recommend them. My stock springs would have worked fine and it was not worth the time it took to install.

            KeithR

            Year: 2003 Submodel: GT

            Helpful (11)

          • 1/5

            April 08, 2018

            Be careful

            Do not listen to the video you need more for this upgrade

            KevinG

            Year: 2001 Submodel: GT

            Helpful (7)

          • 5/5

            Installation Time: Less than 1 Hour

            April 04, 2018

            Valve springs

            They really are up for the task I installed them with my stage 3 cam and they don't disappoint I would recommend this to any mustang user

            AnthonyH

            Year: 1996 Submodel: GT

            Helpful (7)

          • 5/5

            Installation Time: Full Day

            February 12, 2018

            Worth the money

            I purchased the springs along with retainers and stage 2 comp cams everything fits perfect I would recommend them to anyone

            FrankG

            Year: 2001 Submodel: GT

            Helpful (8)

          • 5/5

            Installation Time: Less than 1 Hour

            December 18, 2017

            Valve springs

            They are nice and I like how fast I got them can’t wait to see the power and sound because I’m building the motor

            Bullittman

            Year: 2001 Submodel: Bullitt

            Helpful (8)

          • 5/5

            December 17, 2017

            Worth every dollar

            Easy to install with the right tools definitely can tell there strong. Upgraded cams comp recommended it. Theres a reason. Make sure tou get the retainers with it as well. Steel will work fine insurance for future. Make sure you take your time.

            10kev10usa

            Year: 1997 Submodel: GT

            Helpful (8)

          • 4/5

            Installation Time: Full Day

            September 21, 2017

            Perfect Fit

            there are perfect for complete the cam upgrade. excelent valve fitment and clearance.

            AlexV

            Year: 2001 Submodel: GT

            Helpful (9)

          • 5/5

            Installation Time: Full Day

            August 08, 2017

            Must have

            Very good product much stiffer than stock! Definitely worth the money

            TravisR

            Year: 2004 Submodel: GT

            Helpful (8)

          • 5/5

            Installation Time: Afternoon

            January 31, 2017

            Springs

            Great product and great price!! Had to get these doing Stage 3 cams and these are just the springs for it! Quality is dead on!

            Bluegt

            Year: 1999 Submodel: GT

            Helpful (8)

          • 3/5

            Installation Time: Less than 1 Hour

            October 20, 2016

            Good but not perfect

            Got stage 5 comp cams and was recommended these with the steel retainers so got it all! Installed them easily lasted me 2 days! Exhaust valve spring on cylinder 4 broke into 2 peices no engine damage was done thankfully but expected more from performance parts

            TheFlashGT

            Year: 1998 Submodel: GT

            Helpful (9)

          • 5/5

            Installation Time: Shop Install

            Installation Cost: $100-$250

            June 29, 2016

            Sweet

            I bought these beehive valve springs with a new set on comp cams stage 3 and wow it sure makes a diffrence i highly recommend you add some of these valve springs if you're deciding to upgrade your cranckshafts.

            Johnny

            Year: 2004 Submodel: GT

            Helpful (8)

          • 5/5

            Installation Time: Less than 1 Hour

            April 15, 2016

            PERFECTION

            The item was packaged perfect and the springs were perfect for my heads.

            Smoke

            Year: 2003 Submodel: GT

            Helpful (10)

          • 5/5

            Installation Time: Shop Install

            Installation Cost: $1000+

            August 27, 2015

            Must have

            These are a must have when getting new cams! Have to upgrade the valve springs these worked great and fit great or that's what the shop said. Got the comp cams 270s they are sick but must upgrade few other things as well as this and it's worth it all! Not a big HP gain the cams and all but to get the cams and everything installed along with these it was around $1100. Definitely recommend!

            awarf24

            Year: 2003 Submodel: GT Granite Falls, NC

            Helpful (9)

          • 5/5

            Installation Time: Weekend

            October 21, 2014

            product is great

            Product fit great and performs even better. Was time consuming to install but worth it

            andyrooney

            Year: 2002 Submodel: GT Diana, TX 75640, USA

            Helpful (8)

          • 5/5

            April 14, 2014

            Fit great

            I had a shop put them in but he said there was no problems with them fitting and along with the retainer clips

            04gtmustang

            Year: 2004 Submodel: GT Miami,Fl

            Helpful (9)

          • 5/5

            Installation Time: Full Day

            June 29, 2012

            Good Deal

            Fit great and didn't take too long to install. Good product

            Paccccoooo

            Year: 1996 Submodel: GT

            Helpful (8)
