In-Tank Fuel Module and PWM System; 1500 HP (15-17 Mustang GT)Find parts that fit my vehicle

KPM Fuel Systems are proud to release the highest level of direct fit fuel systems for the S550 Mustang GT (2015-2023).
With the modern Mustangs being tuned to amazing power levels comes the need for a high-performance fuel system.
KPM have met this need with a direct replacement high performance fuel system that will perfectly support power levels from standard all the way to 1500 hp.
No other Mustang fuel module supports as much power with the efficiency, functionality, and fuel delivery of the KPM 1500 hp fuel systems!

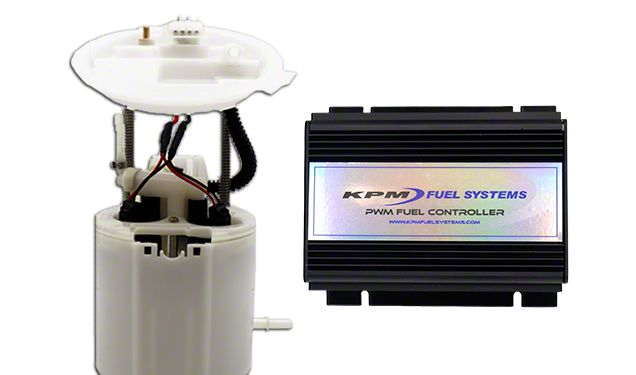

KPM 1500 hp Fuel Module
The KPM 1500 hp Fuel Module is engineered utilizing 2 x high performance Bosch Racing fuel pumps, all housed in an OEM style high-flow fuel canister and distribution manifold. The KPM fuel module is mounted and immersed in the vehicle’s fuel tank as per OEM design and for ease of fitment.
The development and testing of the KPM module was focused on supplying guaranteed delivery of cool, dense fuel to support 1500 hp at the engine on pump fuel. Our objective was also the supply of solid fuel delivery in both everyday road driving and extreme track conditions, regardless of fuel level in the tank
To achieve these objectives, our KPM Fuel System engineer designed and incorporated a four Venturi pump and refill valve system designed to scavenge fuel from both sides of the Mustang fuel tank and permanently keep the fuel canister full.
This means that you can run the KPM fuel module at any fuel level safely across all conditions without the risk of surge or fuel starvation, including during spirited driving, circuit days, or drag racing.
The fuel pumps are 100% gasoline, ethanol and methanol compatible and able to deliver massive amounts of cool, dense fuel at standard vehicle voltages.
This equates to optimum tuning and power levels up to 1500 hp (flywheel rated on 94 octane)
Controlling fuel pump current will keep fuel cool and dense preventing vaporization, retaining maximum energy for optimum power.

Advantages
Cool dense fuel
Prevent atomization
Full upgradable to run up to 4 pumps for future use
Prevents long cranking times
Maximum engine power potential
Repeatable and predictable engine performance
Ease of tuning
Extended fuel pump and fuel system reliability
Relieving the electrical system of excessive load
Extended long idling and driving periods
Provides maximum fuel system and engine reliability

Features
Direct plug and play fitment when used with KPM 1500 hp and 2200 hp Fuel Modules
Easy fitment with instructions provided
Pre-programmed settings to suit supported vehicle make and model
OE programmable when used on vehicles with a Factory Fuel System Control Module (FSCM)
2 driver outputs at 40 amps each
Ability to run 1,2, 3, or 4 x high volume pumps
4-gauge outputs 0-5v able to monitor e.g.: fuel pressure, temperature, pulse width, amperage
On-board temperature protection sensor
Everything provided for a hassle-free fitment
