In-Tank Fuel Module and PWM System; 2700 HP (20-22 Mustang GT500)Find parts that fit my vehicle
Item 467054
Our Price
$5,079.99
Military, Medical & First Responders
$254.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- KPM 2700 Hp Fuel Module System Utilizes Four Bosch Racing Fuel Pumps In Two Separate OEM-Style Modules
- Complete Primary 1500 Hp Fuel Module And Secondary 1500 Hp Fuel Module Provide Direct Replacement Fitment
- Integrated Six Venturi Pump And Refill Valve System Maintains Constant Fuel Canister Levels And Eliminates Surge
- Electronically Controlled, Pre-Programmed PWM Fuel Module Controller Adjusts Pump Current To Match Fuel Demand
- System Supports Fuel Delivery For Power Levels Up To 2700 Hp Measured At The Crankshaft On Gasoline
- High Flow Canister, Distribution Manifold, And Fittings For Efficient Fuel Delivery At All Operating Conditions
- Includes Stainless Steel Fuel Line Upgrade Kit With ½ Inch Pre-Shaped Lines And EFI Style Connectors
- KPM 2700 Hp Fuel Filter With Anodized Aluminum Housing And Cleanable 10-Micron Stainless Steel Element
- Four Fuel Pumps Each Operate Around 16-18 Amps For A Total Current Draw Of 64-72 Amps
- Designed To Mimic Factory Fuel System Control Module Signals Via Plug-And-Play Harness Connections
- Eliminates The Need For Voltage Boosters, Hanger Systems, Return Style Systems, And Surge Tanks
- Compatible With Gasoline, Ethanol, Methanol, And Race Fuels Including E85
- Ensures Cooler, Denser Fuel For Increased Engine Performance And Reliability
- Easy Fit High-Amperage Wiring And Connector Kit Included For Straightforward Installation
- Fitting And Calibration Instructions Provided To Assist Professional Tuning
- Fits 20-22 Mustang GT500 With No Additional Modifications Needed For This Generation
Description
High-Performance Fuel Delivery. The In-Tank Fuel Module and PWM System; 2700 HP delivers direct-fit, race-ready fuel supply upgrades for the Mustang GT500. Designed for up to 2700 horsepower, it ensures consistent and precise fuel delivery critical for high-output and race applications, preventing fuel surge and starvation during aggressive driving.

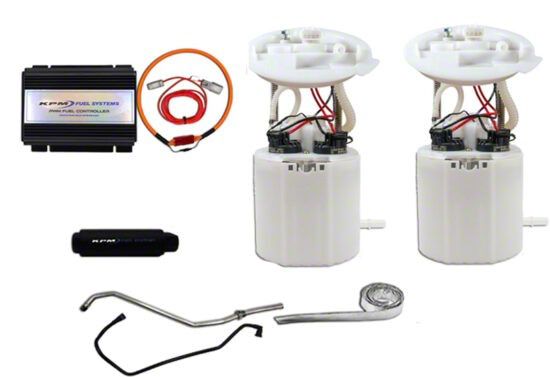

Construction and Appearance. This system features four Bosch Racing fuel pumps housed in two robust OEM-style fuel modules, integrated with a six-venturi pump and refill valve setup. The kit includes pre-formed stainless steel fuel lines with EFI fittings and an anodized aluminum fuel filter housing containing a cleanable 10-micron stainless steel element, all engineered for durability and compatibility with various fuels.
Installation. Installation is straightforward with direct replacement modules and plug-and-play high-amperage wiring connectors. No drilling or major modifications to the vehicle’s fuel tank are required, facilitating efficient professional installation within a reasonable timeframe.
Application. Specifically engineered to fit 2020-2022 Mustang GT500 models, this system offers a seamless upgrade without additional adaptation. It matches factory fuel system control signals to operate flawlessly within the vehicle’s existing PCM framework.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Mustang
- GT500 - 20, 21, 22
