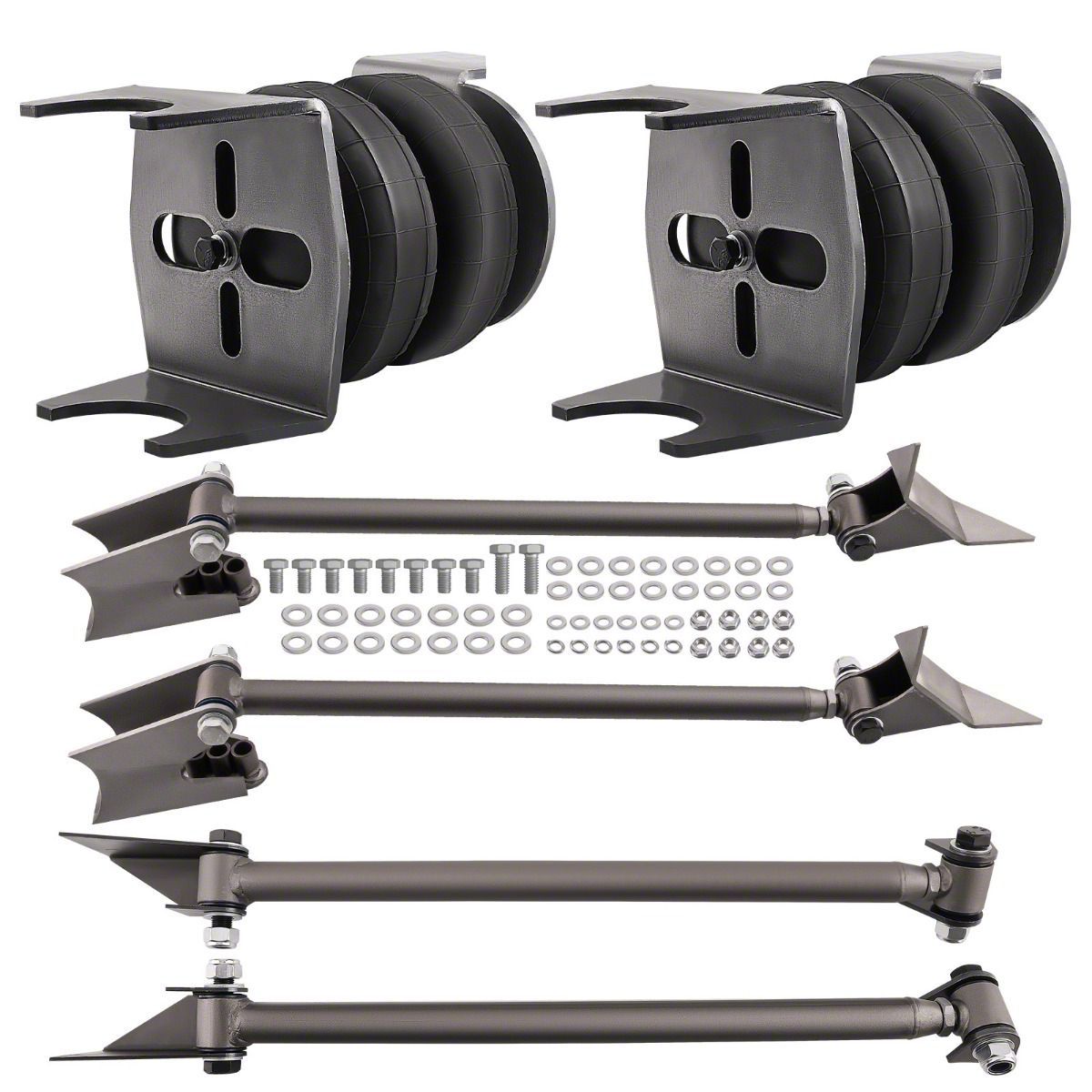

Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required)
Item 473634
Our Price
$419.99
Military, Medical & First Responders
$21.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 4 X Heavy Duty Steel Bars _x000D_
- 4 X Zinc Plated Steel Rod Ends With Urethane Bushings _x000D_
- 2 X Steel Weld-On Triangulated Frame Mounts _x000D_
- 2 X Steel Weld-On Lower Axle Tube Mounts _x000D_
- 4 X Steel Weld-On Center Link Axle Mounts _x000D_
- 2 X Steel Weld-On Side Frame Mounts _x000D_
- 8 X Button Head Bolts With Nyloc Nuts _x000D_
- 2 X Weld-On Lower Axle Bag Mount _x000D_
- 2 X Weld-On Upper Frame Bag Mount _x000D_
- 2 X Standard 2500 Single 1/2 Inch NPT Port Air Bags _x000D_
- DOM Tubing Outside Diameter 1.25 Inch _x000D_
- DOM Tubing Thick Wall 0.156 Inch _x000D_
- All Four Bars 24 Inch Center To Center Adjusted All The Way In _x000D_
- 2500 LBS Bag Capacity _x000D_
- Bag Diameter 6 Inch _x000D_
- Bag Extended Length 8 Inch _x000D_
- Bag Closed Length 2.75 Inch _x000D_
- Two Top Mounting Holes Approximately 1-3/4 Inch From Eye To Eye _x000D_
- Bottom Has One Mounting Hole In Center _x000D_
- All Mounting Holes Are 3/8 Inch-16 UNC _x000D_
- Instructions Are Not Included _x000D_
- We Recommend Professional Installation _x000D_
- Rod Is Available In Silver And Black _x000D_
- Please Feel Free To Contact Us For Whatever We Can Help With _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Heavy-Duty Suspension Kit. The Weld-On Triangulated 4-Link Air Ride Suspension Kit provides a robust rear suspension solution designed for enhanced vehicle stability and load management. It integrates seamlessly with standard air ride systems using dual 2500-pound capacity air bags, ensuring smooth ride quality and improved handling under varying conditions.
_x000D__x000D_Construction and Appearance. Crafted from heavy-duty steel components, this kit features DOM tubing with a 1.25-inch outside diameter and 0.156-inch thick walls for strength and durability. The rod ends are zinc-plated with urethane bushings, offering corrosion resistance and noise reduction. Rods are available in silver or black to match installed environments.
_x000D__x000D_Installation. This kit requires professional installation due to the complexity and precision needed for proper fitment. Welding is necessary to mount the frame and axle components securely, making it unsuitable for simple bolt-on installation without fabrication skills.
_x000D__x000D_Application. Designed as a universal kit, it fits a wide range of vehicle rear suspensions with potential adjustments required to accommodate specific frames or axle types. No instructions are included, so professional installation and adaptation are advised.
