Nitrous Express Mustang Nitrous Kit - Nozzle System 20922-10 (86-04 GT)

Nitrous Express Nitrous Kit - Nozzle System (86-04 GT)

$0.00

2 Reviews 8 Answers

Market Price $815.99 You Save 12% ($95.29)

Our Price

$720.70

FREE Shipping

Item 25003

Will this fit your Vehicle?

Change Vehicle Help?

In Stock Ships same business day.

Ship to: Ashburn - 20149

Sorry, please enter a valid US or CA postal code

We're sorry, zip can't be updated at this time.

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

Features & Details

Gain Up to 150HP
Throttle Position Activated
Easy Purge Kit Install
Works with Stock Fuel Rails
Includes 35 to 150 HP Jets
Fits 86-04 GT Mustangs

Product Resources

Customer Photos (8) Customer Reviews (2) Questions (11) & Answers (8)

Gain Up to 150 HP. Give your Foxbody, SN95, or New Edge GT a serious boost of power with a Nitrous Express Nitrous Kit. This "wet" nitrous EFI nozzle system includes jets that add from 35 to 150 wheel horsepower without sacrificing reliability. Get your GT the respect it deserves at the track with this affordable kit.

Full Throttle Activation. Protect your engine with the built-in safety features of this NX Nitrous kit, including a wide open throttle switch. This switch detects when you're at full throttle before engaging your nitrous, keeping your engine from running lean and helping to prevent major engine damage.

"Wet" System for Better Delivery. The NX Nitrous Nozzle System is a "wet" system that connects directly to your fuel system and mixes your gas and nitrous before injecting it using a nozzle in the intake tract- creating fuel that burns better, cleaner, and produces more power.

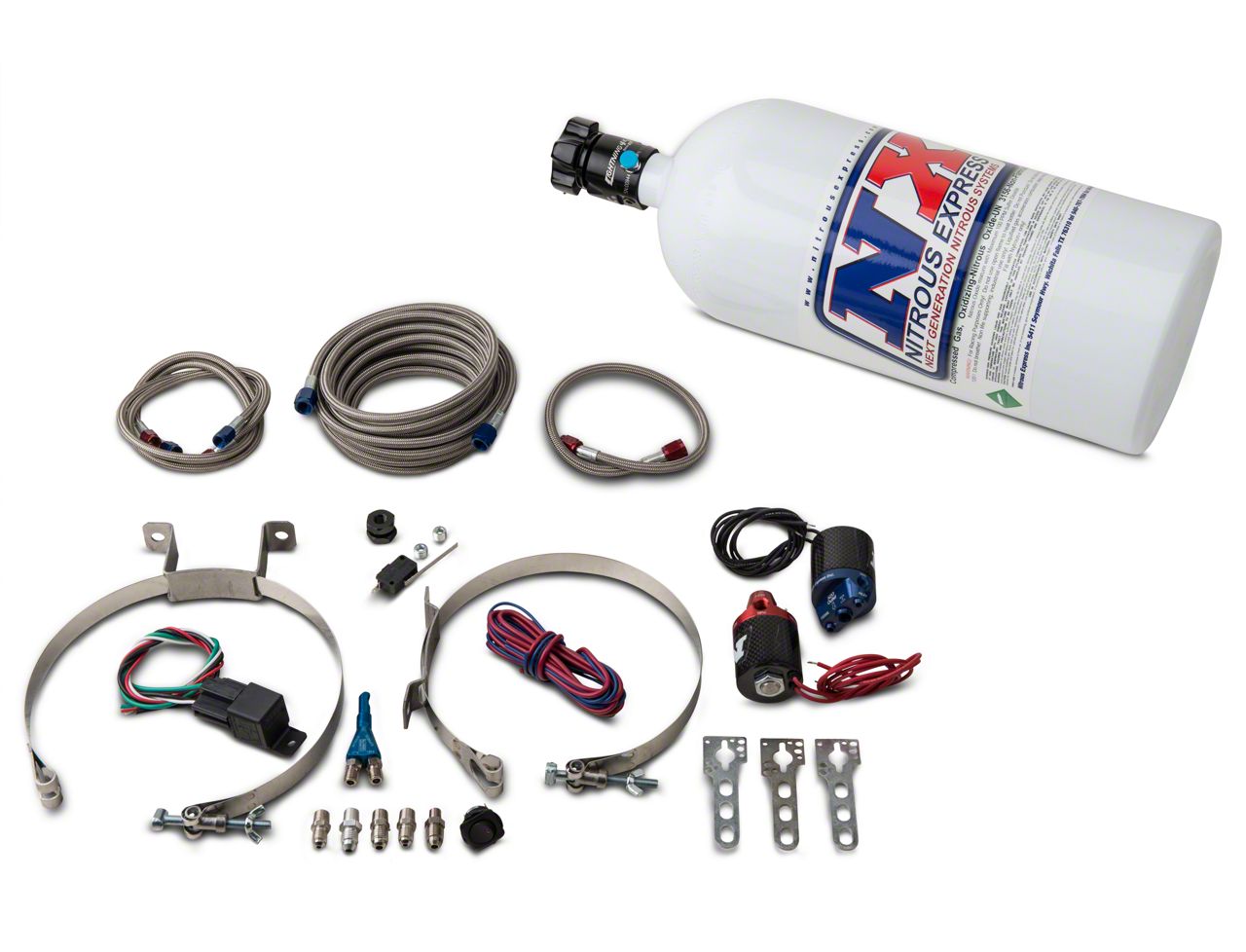

Complete Kit. The NX EFI Nozzle system includes everything you need to bolt on up to 150 HP and powerful, tire-smoking torque to your Mustang. This kit includes a Shark nozzle, 10lb nitrous bottle,hoses, solenoids, wiring, mounting hardware, and a complete set of jets including 35, 50, 75, 100, and 150 HP jets.

Application. The NX Nitrous Nozzle System is designed for 1986-2004 GT Mustangs.

Specifications:

Delivery Style: Air Intake Tube
Nitrous System Style: Wet
Maximum Advertised Horsepower Increase: 250 (150 w/included jets)
Activation: Microswitch
Jet Sizes Included: 35, 50, 75, 100, 150
Type: Single Stage
Bottle Included: Yes
Bottle Capacity: 10 lbs
Bottle Material: Aluminum

Technical Notes. This kit allows I4 and V6 Mustangs to run up to a 75 shot of nitrous. The N2O pressure gauge is not included (sold separately).

Shipping Notes. This item ships ground only, expedite shipping is not available for this item

Fitment: 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

MPN# 20922-10

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Installation Info

Installation Time

(approx) 4 Hours

Difficulty Level:

Simple installation for anyone.

Installation Guides

Manufacturer:
How to Install an NX Nitrous Kit - Nozzle System on Your 1986-2012 Mustang GT

Tech Specs

Nitrous Kit Specifications

Year/Model:	86-04 GT	Manufacturer:	Nitrous Express
Wet or Dry:	Wet	Included Jet Sizes:	35-150
Delivery System:	Nozzle	Bottle Size Included:	10lbs

Tech Guides:

Differences Between Wet Dry Nitrous

Will it fit my Mustang?

GT - 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04
LX - 87, 88, 89, 90, 91, 92, 93
Other - 86

Questions & Answers (11)

5 Top Rated Questions

What is the difference between the plate and the nozzle system What is the difference

the plate system is a plate that fits between the throttle body or carburetor and intake manifold and it sprays there, the nozzle system you drill the manifold and install jets into each runner on the manifold and they spray the nitrous

Helpful (3)

I want to install nitrous oxide on my gt 2003 Do I have to modify something on my engine? Should I forge or change my 8 piston? I ask the question because I have a friend who has a mustang gt 2003 exactly like mine and with nitrous it melted the 8 piston after only 10 min !!

Considering piston upgrades is something that should be highly considered especially if you are going to run a 100+ shot of nitrous. You will also need to have your timing pulled as well as assure you are using the right fuel delivery equipment as a voltage booster or aftermarket fuel pump may be needed. This should be discussed with your tuner before installation to ensure the vehicle will properly operate.

Helpful (1)

Are there any advantages or disadvantages from a plate spray system versus the nozzle system?

I ordered this nitrous kit, which is expected to arrive tomorrow...,and wanted to familiarize myself with installation instructions. The site says easy install with minimal mechanical aptitude. Reading the mfg. instructions it recommends a new fuel pump and also states that the removal of the intake is required to drill holes using a Bridgeport mill. I don't have a milling machine and was wondering if the nozzle can be installed in the intake tube instead of the manifold?

what is the difference between a plate and nozzle nos system

Not finding an answer? Ask your question! Post Your Question

6 More Questions

Will this system work with a 175-200 nitrous jets if I wanted to upgrade? 1 answer

It can accommodate up to 250 jets.

Helpful (0)

I have a 2003 Mach 1, will this kit work with it? 1 answer

Unfortunately this kit will not work with a 2003 Mach 1.

Helpful (0)

Does this kit include a purge system 1 answer

This kit does not include a purge system, but it is recommend to install along with. https://www.americanmuscle.com/nx-purge-valve-kit.html

Helpful (0)

Do you have to do any modifications to your engine or fuel delivery if you install this nitrous kit? I don't wanna harm my engine or fuel system, besides my engine has 175,000km so I'd probably just get the 50hp jet. 1 answer

This Nitrous Express Nitrous Kit will not require any further modification in order to use and operate. However, it is highly recommended to have a tune written for the car if you are running anything over a 50 shot of Nitrous. Depending on the shot of nitrous you are looking to run, you may need to consider a couple other modifications in order to full get your power but that can be discussed with your tuner of choice.

Helpful (0)

Would this work on a 93' LX? If not, why wouldn't it? 1 answer

yes, if it will work on a gt it will work on a lx because the only difference is some trim pieces, all the engine and drive train are identical

Helpful (0)

Will it work on a v6? I have seen sites that has this exact kit and sais that it is compatible with a v6 but for some reason this site don't specify v6 model. It does say this tho ( Technical Notes. This kit allows I4 and V6 Mustangs to run up to a 75 shot of nitrous ) I don't know what they mean by I4 but it talks about v6 so yea. 1 answer

i4 stands for inline 4 cylinder

Helpful (0)

Customer Reviews (2) Write a Review

Overall Rating

out of 5 stars

Installation Time:Afternoon

Performance Gain 5 5
Fit 5 5

no one in the world ever gets what they want, and that is beautiful

Sort By
Filter By

5/5

Installation Time: Afternoon

June 22, 2017

AWESOME

Easy install and what a rush.......get the purge and gauge with the system as well

MarcP

Year: 2003 Submodel: GT

Helpful (14) Thanks for your input!
- Performance Gain 5
  5
- Fit 5
  5
5/5
May 06, 2008

Best kit on the market!

I have one of these kits on my 1995 Mustang, and it gives me about 100 more HRP!

PAUL COOLEY

Year: 1995

Helpful (20) Thanks for your input!
