Review & Install Video
The Raxiom DRL chrome projector headlights are available for any 2005 to 2009 GT or V6 owner who's looking to add more modernized, advanced looks to their front-end by picking up a headlight style that is super similar to the unique S550s. These are definitely the most premium headlight in the category because of the more aggressive design. But the installation is still pretty simple, so expect one outta three wrenches on our difficulty meter, which I'll touch more on later on.

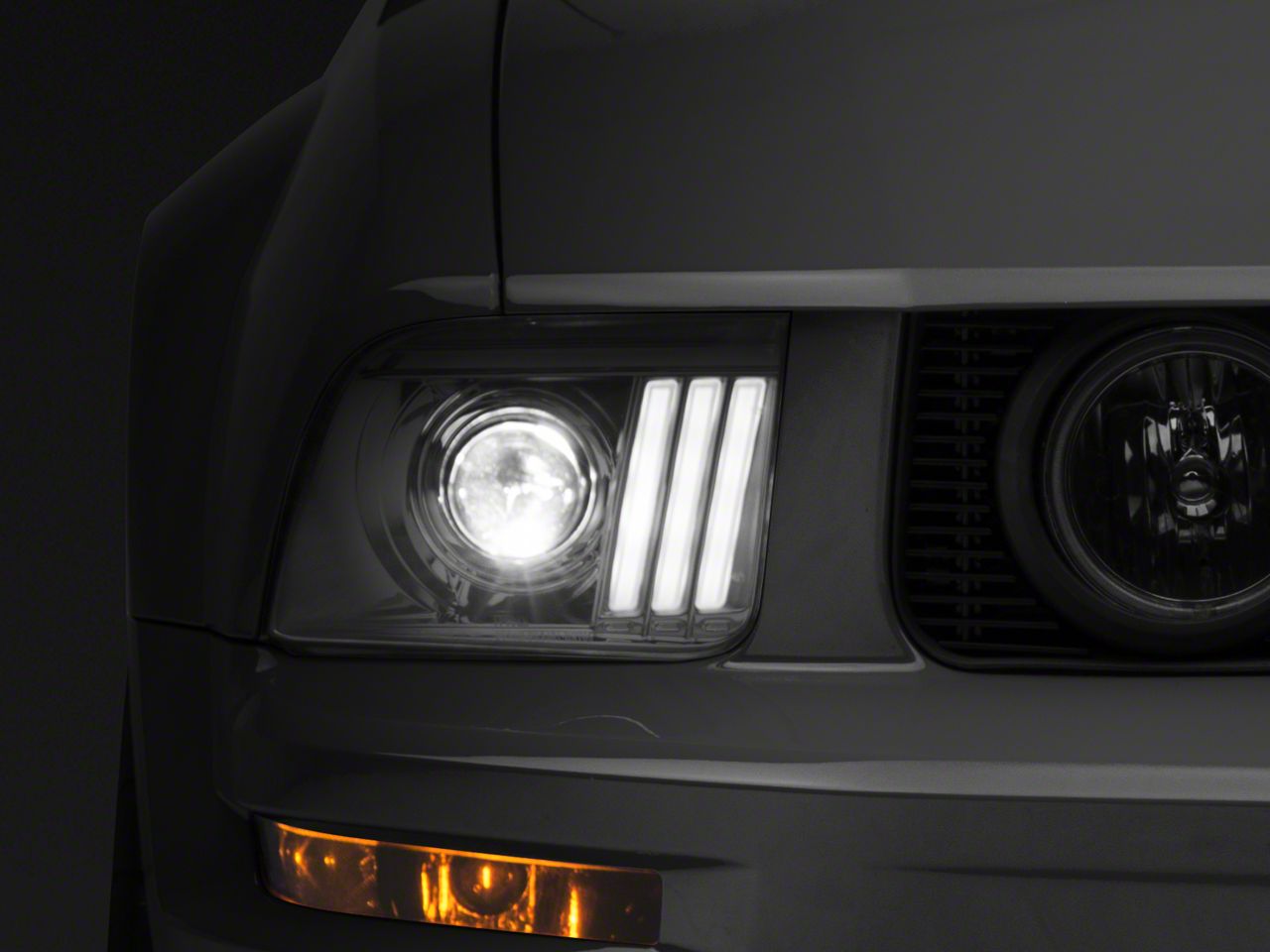

Taking a closer look at these headlights, they obviously have a very recognizable design, especially because of the three lighting strips in the corner closest to the grille. Those are gonna work in conjunction with your daytime running lights, just like your newer S550 Mustangs would. They've got the projector-style housing and bulb in the middle, of course, to show for your high and low-beam lights.
The styling here is for sure a polarizing one, it'll be a love it or hate it. But if you want a more aggressive front-end and a unique one at that, then this is a pretty good way to go, especially since it has a chrome housing. Now the chrome makes it stand out way more without a doubt, although it may not be for everyone, of course. It's got that eye-catching show car quality to it, which blends well with other chrome accents on the car for your early S197s, if I do say so myself.
The lighting performance has an upgrade to be mentioned here as well. Yes, of course, halogen lights won't be as bright as some of the LEDs or HIDs, but they are made to be brighter than OEM bulbs which is a much-needed upgrade in my opinion. The lighting is a bit whiter as well for a cleaner look. And the projectors, well, project a bit farther than stock as well.
The DRLs are high-powered LEDs in the three-strip fashion, which is cool accents, in my opinion, that will run during the daytime and nighttime, which is my personal favorite part of the design. The construction of the housing is made from all OEM quality materials, of course. It's all sealed tight to prevent from dirt and moisture from getting in and ruining the wiring.
Now these are some of the more premium options in the category. Spending just south of the $400 mark, you can get a pair for yourself, and I can definitely see why. There's a lot going on here with advanced technology. The three stripes, the DRLs, the projectors in the middle, the chrome flashy options, definitely something giving a more modern fashion. Some of the other options are a bit more basic, including, at most, a halo ring for an accent. So this is definitely taking the headlight game a step farther, which we already know from the S550s that they do. Raxiom covers this with their two-year full warranty, of course, so you at least get some peace of mind from them.
The installation is gonna get one outta three wrenches on our difficulty meter, but I will say it does require a very minimal amount of splicing, as you can see here by the ground and positive wires. This shouldn't be a problem at all, especially since it comes with quick splice connectors for the wiring, and of course, directions to get you through the process. Wanna have a very basic ratchet and socket set on hand, as well as about 30 minutes to an hour in the driveway at home.
You'll first need to pop your hood and remove the push pin clips holding on your factory radiator cover, then remove the bolts holding the top of your bumper into place. Remove the screws at each one of the front-rear wells connecting it to the bumper, then remove the few under the front-end as well. From here, you'll wanna pull your front bumper outta place. Next up, use your socket to remove the bolts holding on your factory headlights into place. And make sure you disconnect the wiring harness, so you don't pull them out and damage anything in the process. From here, you can remove the housing from the vehicle and safely set them aside. Put your new Raxiom housing into place on the car and use your quick splice connectors to wire your positive red wire and the black ground wire to the factory harness, all laid out for you in your manual, of course. From here, you can plug in the Raxiom harness for the bulb and bolt down the new headlights. Repeat for the opposite side, then pop your bumper back on and replace the bolts and screws, as well as the radiator cover and push pins, and you're good to go.
Just to wrap this one up, if you're the owner of an '05 to '09 GT or V6 Mustang, you might wanna check out the Raxiom DRL projector headlight in chrome, which is available right here at americanmuscle.com.
Clean Modern Styling.
Give your 2005-2009 Mustang an updated appearance with a set of Raxiom DRL Projector Headlights. These Raxiom Headlights feature triple Daytime Running Lights similar to those found on the S550 Mustangs for modern styling. The simple design of these Raxiom Chrome Headlights flow nicely into the lines of the S197 Mustangs for a sleek OEM appearance.Superior Lighting Performance.
Raxiom designed these Headlights with projector lenses to light up the road ahead with a bright focused beam of light that will improve your nighttime visibility. The integrated Daytime Running Light LED Accents will give your Mustang a more exotic appearance that will allow you to be seen day and night.Durable Construction.
Raxiom manufactures their Headlights to precise standards from OEM quality materials. These Projector Headlights feature durable chrome plastic housings with clear lenses and modern LED DRL accent lighting. Each light is sealed to prevent dirt and moisture from harming the state of the art electronics.Straight Forward Installation.
Raxiom designed their Projector Headlights to be a direct plug and play replacement for your Mustang's original factory housings. The DRL lights tap into your stock running lights using the supplied scotch lock quick splice connectors, so no cutting or modifications required for a clean straight forward install. However, it should be noted that you will need to lower the front fascia in order to gain access to the mounting bolts. 2-Year Full Warranty.
Raxiom ensures quality craftsmanship by backing their Mustang Head Lights with an Industry Leading 2-Year Full Warranty. Some exclusions may apply, please see manufacturer's warranty for details.Application.
These Raxiom DRL Projector Headlights are designed to fit the 2005 to 2009 GT and V6 model Mustangs that are equipped with standard halogen bulbs. Does not
fit Shelby GT500 Mustangs.
CA Residents: Warning: California's Proposition 65
- What's in the Box
- (1) Right Hand/Passenger Side Headlight
- (1) Left Hand/Driver Side Headlight
- (4) Quick Splice Connectors
- Pre-Installed Headlight Bulbs
- Installation Info
Installation Time: (approx) 1 Hour
Difficulty Level:Light to Moderate mechanical skill required.
- Tech Specs
- Will it fit my Mustang?
- Bullitt - 08, 09
- GT - 05, 06, 07, 08, 09
- V6 - 05, 06, 07, 08, 09
Designed for Mustangs equipped with Standard Halogen Bulbs.
