Raxiom Sequential Tail Light Kit - Plug-and-Play Harness (96-04 All; Excluding 99-01 Cobra)

Item 49143
$0.00
Market Price $149.99 You Save 20% ($30.04)
Our Price

$119.95 (pair)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Cool Retro Styling
    • Exceptional Electronics
    • Easy Plug-In Installation
    • Fits 1996-2004 V6, GT, Bullitt, Mach1 and 96-98, 03-04 Cobra

    Review & Installation Video

    Review & Install Video

    Hey, guys. Adam here with americanmuscle.com. And today, we're taking a closer look at and installing the Raxiom Sequential Plug and Play Taillight Harness available for all 1996 to '04 Mustangs excluding the 1999 to '01 Cobras. You should be checking this out if you're looking to modernize your rear-end without spending the bigger bucks on a full set of new taillights. This harness is exactly that, it is just a simple harness that converts your factory taillights into a sequential pattern. As you can see here, we've got our hazard lights on our '99 GT and you can see on both sides they're sequencing from the inside out in a one, two, three order. Now these taillights do sequence pretty quickly so you can see it's blinking just like this and the harness is gonna work that way with your hazard lights, turn signals, and when you hit your brake. So when you hit the brake, it'll sequence and hold for the duration of you holding in that brake pedal. For the hazard lights and turn signals, of course, it'll just keep going in the sequence until you turn off the turn signal or hazard lights. Now as far as the harness, it is a direct plug and play, that's the big selling point here guys. You don't have to do any wiring, there's no splicing, there's no swapping anything out, there's no LEDs. You're essentially gonna take the factory bulbs out of their sockets, transfer them into an identical harness and plug them in, only this time in a very specific order. The sockets on the new harness are labeled one, two, three so you know the first one goes here, second in the middle, third one on the outside. You're also gonna get a fourth socket to replace that factory reverse light bulb socket. I will say, guys, some people may not like the speed at which this sequences, does sequence pretty fast. There is a Raxiom turn signal modifier you can pick up separately to slow things down. It goes from blinking this speed to one, two, three, it is pretty simple and it can really change up the way that it's used. It's all personal preference though. Could definitely use the harness as is or pick up that modifier separately, that again, is a very simple plug and play. Now the harness you see here comes in right around 100 bucks between 120, very simple stuff, pretty affordable and very much changes the look. Now if you're looking for something a little more, you can get the sequential harness built into a new set of taillights. There's a couple of options out there like the Axial smoked taillights that include the harness to smoke out that rear end, but if you want to keep the factory taillights and just switch up that sequential harness, this is a great way to do so.Install, one out of three wrenches on our difficulty meter. Like I said, tackle it in under 30 minutes. You're not gonna need any real hand tools with the exception of an 11-millimeter deep socket and a ratchet. I'm gonna show you every step of the process, let's get to it. Tools used in this install include a ratchet, 11-millimeter deep socket, panel removal tool. It's also recommended to have a small flat head screwdriver. First step here guys, pop your trunk. You want to remove this trunk liner right around your trunk latch. Now there are four little Christmas tree clips in there, so grab a panel removal tool or something similar and we're gonna pry up on these guys. I like to get them started and then use this hook end to just pull straight back. All right, do that for all four of them. From there, this just pops off and I like to put that right in the trunk there. Next up we have to remove the trunk liner which is this carpeted edge here. There are two little push clips here, there's one on the top left, one on the top right, same exact thing. They do have a little slot in the middle if you want to use a flat head screwdriver, you can get them off that way by twisting them. You can also pry back and kind of work it off by hand. So really what this is doing is screwing onto a threaded stud and it's got some threading on the inside of this plastic. Same thing on the other side. Can also just use a small flat head screwdriver to pull this guy back. From there, we'll lift up and remove your trunk liner. All right, so now we can remove our taillight once you pull back this carpet liner. It'll expose four studs holding 11-millimeter nuts. There's one here, there would be one here, ours broke off, we're missing one here. There's also one top, and then down here. So you're gonna grab an 11-millimeter deep socket and you're gonna break them loose and then you can typically get them off by hand. Once you have those off, we're gonna disconnect this harness. This is your taillight harness, so you're gonna pull back on this tab here and pull up on the wire. What are you gonna do is basically push from the inside out and pull from the outside toward you. And you'll disconnect this grommet. Just like that, pull it straight back. All right, so now we're looking at the back of our taillight, factory harness still installed with our bulbs, and I'm holding our Raxiom sequential harness. You can see, almost identical. The only difference being three of the bulbs are labeled one, two, three, of course, that's the sequence. When we install the new sockets into the old housing, we want to make sure we're installing them in that order. The sequence is gonna start from the middle and work its way out, one, two, three. So that's how we want to install our sockets. Now there is a fourth socket and that's, of course, your reverse light and that'll go up toward your reverse light. So basically what we're gonna do is one by one, pop a bulb socket out, unplug the bulb, transfer it over to the one, and then install that. Simple as that. Now this new harness has a couple of extra wires, of course, to operate the sequence. It's also got to resistor built-in. No big deal, they are the only differences with between the two kits. So let's get started. First thing we're gonna do, twist and remove bulb number one and hold the bulb number one socket. Pull that guy out, pull out the factory bulb, transfer it over. It'll seat right in the housing. All right. So number two, do the same thing. Now the reason I like doing it this way is that way you don't get any of the bulbs confused as far as what's a taillight, what's a reverse light. It's pretty straightforward. Doing this to the last one, that'll go in the number three. And then finally your reverse light is the only one that does not have a number on it. Perfect. Now this factory harness is loose, you can set that aside. Take your new harness and install it the exact same way. And like I said, you want to go one toward the inside of the vehicle, sits right in, and then you twist. Two is in the middle, three is on the far outside. And then lastly, reverse light. There you have it. So now what we can do is take the resistor and that can be tucked up into the top. That'll tuck right up there. And if you'd like, you can even tape it down. From here, you can grab the harness and it has a new grommet built-in, so you're gonna feed that into the hole and plug that grommet, just like that. Line up the studs and install your taillight. Perfect. Grab those factory 11-millimeter nuts and tighten them down from the inside. Guys, before we go any further, you want to take your harness and plug it right into the factory harness. From there, you want to go back in the vehicle and test out your lights. You want to make sure that they're sequencing in the right pattern. You want to make sure all the bulbs are working properly and that the harnesses are working as well. If they do not sequence in the correct order, you want to take your taillight out and figure out which way they need to be adjusted. If it's blinking from the middle to the outside and then the inside, obviously that's not the right sequence, go back and reposition your bulbs, try again. All right, guys, we tested our lights, they're working properly, so what we're gonna do now is take the 11-millimeter nuts and put them back on the studs. All right, once you have them back on, I like to grab the socket, just make sure they're nice and snug and then we can tighten them down. All right, once you have all those tightened down, repeat this exact same process on the other side. Well, guys, that's gonna wrap up my review and install for the Raxiom Sequential Plug and Play Taillight Harness for all '96 to '04 Mustangs excluding the 1999 to '01 Cobras. If you want to pick up just the harness itself, plug and play install, making it super easy, you can do so exclusively right here at americanmuscle.com.

    Retro Styling. Add some classic Shelby inspired style to your SN95 or New Edge Mustang quickly and easily with a set of Raxiom Plug-In Sequential Tail Lights. Used on Shelby Mustangs from 1968 to 1970, your modern pony will get a head-turning retro look with this easy to install and great looking upgrade.

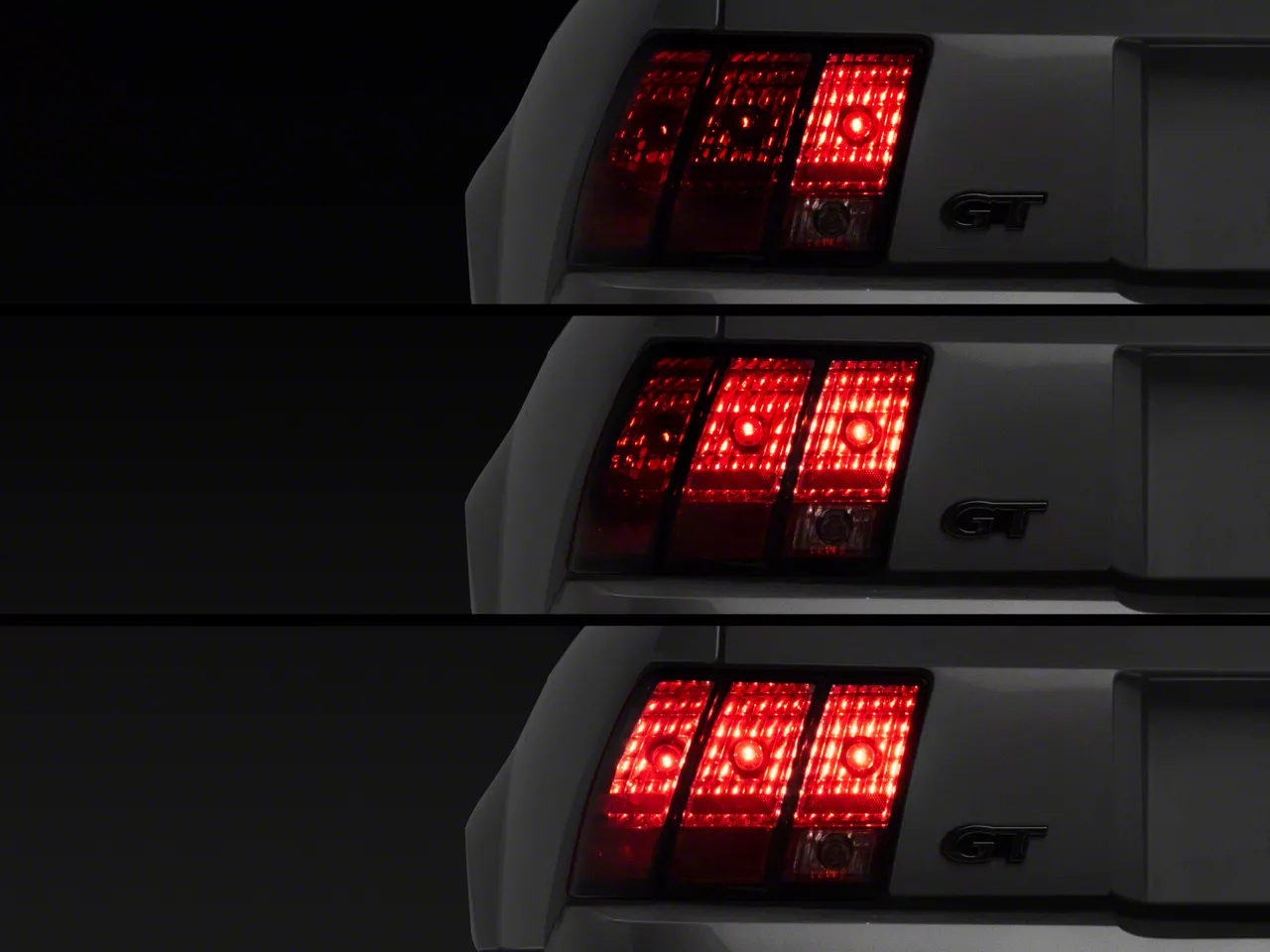

    Sequential. When activated the turn signals or hazard lights will sequence from the center light out and repeat until switched off. When the brakes are applied, the tail lights will sequence once and then stay lit during braking.

    Modern Electronics. The Raxiom Mustang Sequential Tail Lights Kit is assembled from state of the art electronic components. The kit includes two plug-in sequential units, one for the drivers side and one for the passenger side.

    Easy Installation. The Raxiom Mustang Sequential Tail Lights Kit is a direct plug-in replacement for the factory wiring harness. Simply reuse your stock bulbs for the brake light sockets and for the reverse. It's that easy.

    Turn Signal Flasher. If you would like a slower speed for the sequence of your tail lights to get that classic muscle car styling, combine this sequential tail light kit with the turn signal flasher seen above in the drop down menu.

    Application. This Raxiom Sequential Tail Lights Kit is designed to fit the 1996 to 2004 V6, GT, Bullitt, Mach1 and 96-98 & 03-04 Cobra Mustangs with the triple red tail lights.

    Technical Note. These Sequential Tail Lights will not work with LED replacement taillights or on SVT Cobras with the rear amber turn signals.

    Raxiom

    Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

    MPN# 49143

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    What's in the Box
    Hardware included:
    • (2) Plug-in Sequential harnesses
    Installation Info
    Tech Specs
    Will it fit my Mustang?
    • Bullitt - 01
    • Cobra - 96, 97, 98, 03, 04
    • Cobra R - 00
    • GT - 96, 97, 98, 99, 00, 01, 02, 03, 04
    • Mach 1 - 03, 04
    • V6 - 96, 97, 98, 99, 00, 01, 02, 03, 04

    Does not fit 99-01 Cobras

      Customer Photos (63) Submit Your Photo

      View All 63 Photos

        Questions & Answers (64)

        5 Top Rated Questions

        Why are they so fast? I thought the point was so they could be seen going 1, 2, 3. not pretty much only blinking like normal tail lights. is there any way to make them look like the new ones?

        • I've attached the turn signal modifier below. This can be installed in combination with your sequentials to slow down the sequence.

        Helpful (55) Show 4 more answers

        Can you program the brake to not squence? Can you select not to have the tail lights sequence when the brake is applied?

        • no

        Helpful (9) Show 4 more answers

        Will this harness accept, and work with LED bulbs? So I've recently blacked out my tail lights, and they're not transmitting as much light as I hoped they would, so I've bought replacement LED bulbs that fit into the factory harness with no additional wiring. They fit perfectly, and look 10x brighter. My question is this: Would a sequential tail light plugin accept led bulbs instead of the factory incandescent? I can understand an entire new led custom housing, but not just replacement bulbs. If they can't, why? Thanks!

        • You can put in LED bulbs no problem, the only thing is when you put LED bulbs in any signal or indicator light socket you will experience hyperflashing (basically when your signal lights are super fast) this happens because the LED bulbs have such a low power draw. You can either instal resistors to make them work, or i believe that the Raxiom modified turn signal flasher will also slow this down

        Helpful (7) Show 2 more answers

        I managed to put on 96-98 Raxiom LED tailights on my 95 v6 so I was wondering if I can manage to put this sequential kit on my 95 as well

        • We would say that nothing is impossible with enough wiring knowledge and some modification if need be, but these are not designed for the 95.

        Helpful (3)

        Are they brighter than the stock taillights? I have blacked out taillights and was wondering if there any brighter than stock or if they are the same?

        • These reuse your stock bulbs so this new harness won't affect the brightness, only how they sequence.

        Helpful (3) Show 4 more answers
        10 More Questions
        Can not Find any Sequential Tail light kits For a 99 Cobra ,why is that? And is there a fix? 1 answer
        With this kit all 3 bulbs to light up in the raxiom icons? With factory wiring only two of the bulbs work with those taillight. 1 answer
        Is it possible to use this plug-in with the Raxiom Smoked Altezza Taillights? Having bought the 1998 V6 version of the Black Altezza Raxiom Taillights, I was wondering if the sequential taillight kit would work. They did say it work with the three light style, and they do technically have three lights on them. 2 answers
        I got the harness secured, but it will not plug in. Is there another step I am missing, why is it so hard to plug in? 1 answer
        Would I need to purchase two of them for the tail lights or would both come inclusive in the purchase? 1 answer
        I think I have a bad electronic module how do I get a replacement My tail lights want blink and the bulbs are go Only on passenger side 1 answer
        Do i need to buy 2 of this? or buying 1 works for both tail lights? 1 answer
        Why won't it work for 01 Cobra? 1 answer
        I was thinking about using this kit to modify my Honda city 2008. It has three slots for brake lights. will this work with it? if it will what modifications will i need to do 0 answer
        Do I have to order a new pair of tail lights, or would I be using my stock/current taillights that I have on there? 1 answer

          Customer Reviews (100+) Write a Review

          Overall Rating 4.6

          out of 5 stars

          Installation Time:Less than 1 Hour

          Installation Cost:0-$100

          • Fit 4.821208 4.8
          • Appearance 4.726823 4.7
          • Bang For Your Buck 4.366337 4.4



          • 5/5

            Installation Time: Less than 1 Hour

            November 18, 2019

            Sequential Tail lights

            Install was easy and straight forward. The reverse lamps did not want to work at first on either side, but after manipulating wires and connectors they finally came on. Odd that it was the same issue on both sides, possibly manufacturing issue.

            Wheelstand

            Year: 1997 Submodel: GT

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            November 12, 2019

            Sequential tail lights

            They work amazing and only took about 15-30 minutes to install them.

            Turbes48

            Year: 2004 Submodel: V6

            Helpful (0)

          • 3/5

            Installation Time: Afternoon

            November 06, 2019

            works but has issues

            had to return a set because no reverse lights, both sets are bulb picky. work fine with incandescent bulbs but even top brand LED was hit and miss with function. eventually got them to work but took some time.. excellent product otherwise. install was straight forward bulb replacement job, so about 2-3 hours if you take your time to pull trunk panels and then the units.

            HoldenCantrell

            Year: 1998 Submodel: Cobra

            Helpful (0)

          • 4/5

            Installation Time: Less than 1 Hour

            November 06, 2019

            Cool product

            The installation was very easy. The sequence is a little fast, so i will be ordering the signal modifier soon to slow that down. Overall, cool product and nice effect.

            Maximo

            Year: 2004 Submodel: V6

            Helpful (0)

          • 4/5

            Installation Time: Less than 1 Hour

            November 04, 2019

            2002 mustang

            Although they were very easy to install, they sure don't work like the picture shows. Little disappointed in the sequence motion. I'm not getting the one bulb, then the second bulb, and then the third bulb sequence. They all come on at the same time with a little delay.

            BillB02Stang

            Year: 2002 Submodel: V6

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            October 31, 2019

            Awesome!!!!

            This makes completely different look to back end of mustang very easy to install less than 30 mins. Should have got these long time ago.

            03mustang

            Year: 2003 Submodel: GT

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            October 25, 2019

            Perfect Plug In

            These were super easy to put in and were an awesome upgrade for my GT.

            Warden

            Year: 2002 Submodel: GT

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            October 24, 2019

            Lights

            Lights work great. Fit right in install easy less than 20 min.

            Dreammachine

            Year: 2002 Submodel: GT

            Helpful (0)

          • 2/5

            October 05, 2019

            Faulty Socket on Harness

            I recieved and installed this product to find out my reverse light on one side did not work. after diagnosing it with a test light i come to find out the bulb Socket on the BRAND NEW harness that was sent to me was no good so I had to cut it off and cut my factory harness one off and wire the factory socket to the new harness to get it to work , for the price paid for this harness I found that unacceptable, other than that works fine

            Barrett

            Year: 2003 Submodel: Cobra

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            September 29, 2019

            Awesome

            Changes the whole look of the taillights as they blink!!

            Gusmeister24

            Year: 2003 Submodel: GT

            Helpful (0)

          • 4/5

            Installation Time: Less than 1 Hour

            September 26, 2019

            works as advertised

            works as advertised, just wish the raxiom flasher wasnt back order. it would be nicer if they blinked slower. easy to install.

            jrbull45

            Year: 1997 Submodel: GT

            Helpful (1)

          • 5/5

            Installation Time: Less than 1 Hour

            September 17, 2019

            Perfect fit

            Added them to my 95 when I swapped over to the 96 style taillight Plugs in just the same swap the harness out and your done Also added the Diode Dynamics tail turn kit while I was at it

            SammyR

            Year: 1995 Submodel: GT

            Helpful (0)

          • 1/5

            Installation Time: Less than 1 Hour

            August 31, 2019

            Beware and be Careful

            I bought this kit and the Raxiom relay back in April of this year. Installation is pretty straight forward, pull out the old plug in the new and reassemble. By August my care was plagued with electrical issues / failures. While troubleshooting I decided to look at the tail lights since was the only electrical work I had done. What I found was all the on the drivers side tail light was burned through, and that the wiring connector going back into the wiring harness was also burned. I am now going to have to trace the damage back as far as it goes and cut out and replace the wiring harness for the drivers side tail lights. I will also be re-installing the original tail light harnesses and turn signal relay.

            SteelSteve

            Year: 1999 Submodel: GT

            Helpful (0)

          • 4/5

            Installation Time: Afternoon

            August 29, 2019

            Hello

            Hello i reciev my sequentiel harness last niht but i have a probleme wiht 1 set, the back light was ground and i have to change the soket and i use the one on may original set so i like to have a good one for change and put on my car take about 1 hour too install but 1hour to find the probleme the soket on back liht was burning the liht too time befor ai find the ground

            Rejeancrete

            Year: 2002 Submodel: V6

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            July 23, 2019

            Raxiom Sequential Tail Light Kit

            Nice Kit, Plug and play, You have to maneuver the wires just right so you dont have any tugging through the tail light grommet hole but it works out well

            ZacharyC

            Year: 1999 Submodel: Cobra

            Helpful (0)

          • 4/5

            Installation Time: Less than 1 Hour

            July 22, 2019

            Okay But Still Pretty Fast

            It definitely does a sequential blink/flash but nothing nearly as slow as OEM stock on the newer style Mustangs. Still, good quality products and I would recommend to anyone who like the sequential style rear lights.

            UTMustangFan

            Year: 2004 Submodel: GT

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            July 15, 2019

            Love it

            Easy to install and love the look. It may be a little overpriced but no wire splicing was required.

            96midnight

            Year: 1996 Submodel: GT

            Helpful (0)

          • 1/5

            Installation Time: Less than 1 Hour

            July 12, 2019

            back up light sockets are junk

            one of them did not work at all even though it had power going to it…the other issue was the sockets were so loose the bulbs were just about falling out! this caused the working socket to melt and burn up the wiring harness. all the marker lights went out and I got pulled over

            123abc

            Year: 2002 Submodel: GT

            Helpful (0)

          • 4/5

            Installation Time: Afternoon

            July 09, 2019

            Nice product, but...

            Work as advertised but wish they flashed a little slower. Used electrical tape to bundle some of the wires together like the factory set up. Once I figured out how remove the taillight lens, installing was easy. After removing the 4 nuts I found out there was a factory installation clip on the top stud holding the lens in place. Remove that and the taillight lens comes right out. Throw that clip away, you don't need it.

            Dana

            Year: 2000 Submodel: GT

            Helpful (0)

          • 5/5

            Installation Time: Less than 1 Hour

            July 08, 2019

            Tail Light kit

            Works great. Installation was easy. Definitely recommend this product

            Jeff

            Year: 2000 Submodel: GT

            Helpful (0)
