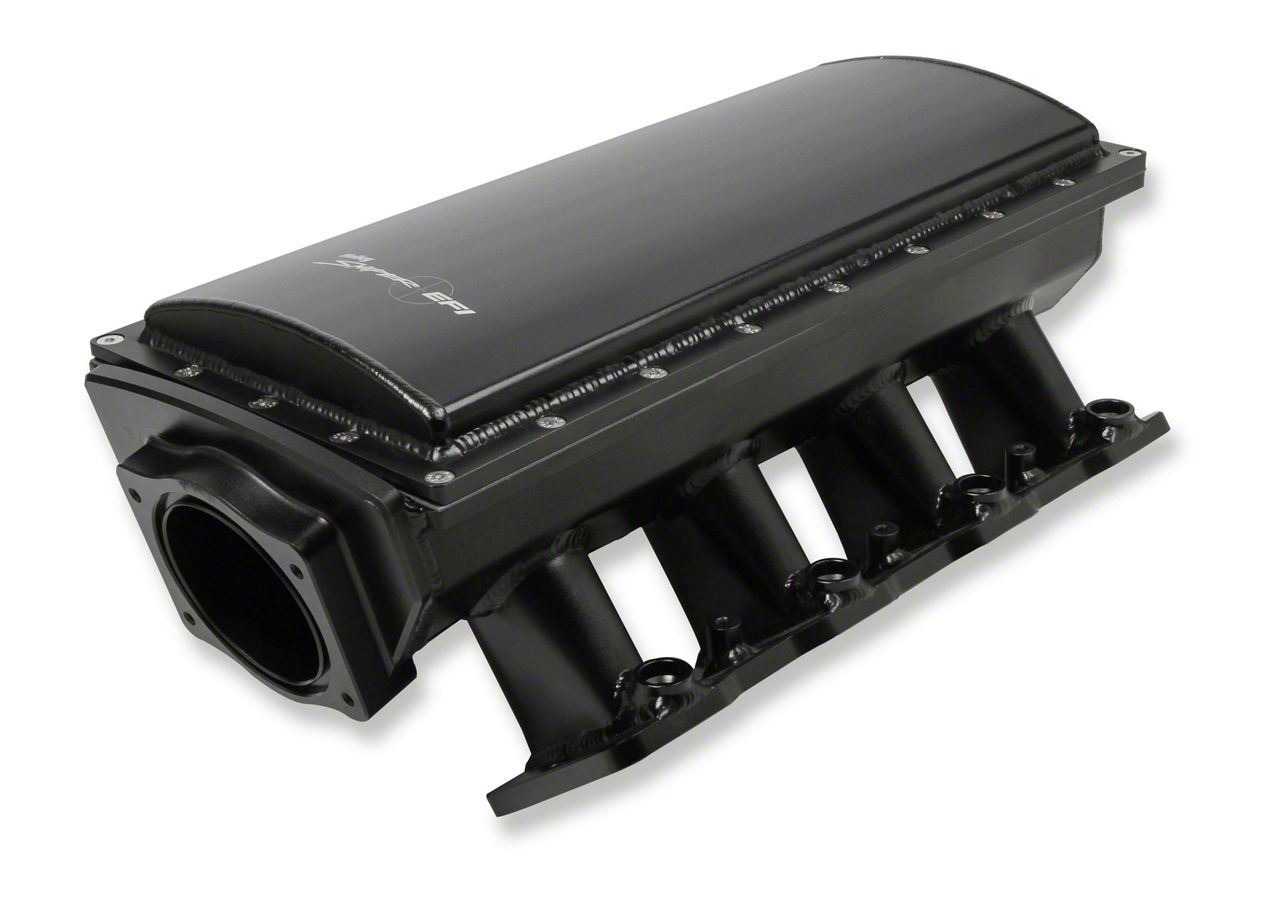

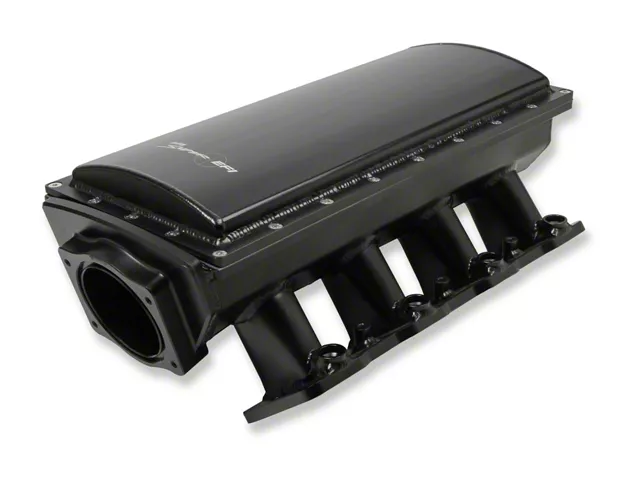

Sniper Hi-Ram EFI Fabricated Intake Manifold with 90mm TB Opening; Black (08-13 6.2L Corvette C6)
Find parts that fit my vehicle Item CV1011
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 90mm Race Series W/ Removable Top, Throttle Body Spacer & Fuel Rail Kit W/ Sniper EFI Logo - Black
- Legal For Sale Or Use On Racing Use Only Vehicles
- Designed To Accept Sniper High-Flow Throttle Bodies
- Includes High Flow Fuel Rail Kit, TB Spacer, And Removable Top
- Precision Fixtured And Welded For Perfect Fit And Maximum Structural Integrity
- More Robust And Perform Above And Beyond Original Sniper EFI Series
- Competitive Alternative To Much Higher Priced Offerings In The Marketplace
- Includes All Gaskets And Hardware For Hassle-Free Installation
- 90mm Throttle Bore Opening For Increased Air Flow
- Larger Intake Plenum Vs Standard Sniper EFI Manifolds For Max Effort Engines And Boosted Applications
- Intake Runners With Tapered Top Designed To Increase Air Velocity And Evenly Distribute Airflow To All 8 Cylinders
- Black Finish For Stealthy Under-Hood Styling
- Removable Top For Ease Of Inspection, Modification, And Addition Of Sensors
- 100% TIG Welded For Strength And Durability
- 5mm Thick T6061 Sheet Aluminum Construction For Maximum Durability
- Longer Intake Runner Lengths Offering Wider RPM Operating Range Of 2400-8200 RPM
- Welded Seams Inside And Out For Added Strength And Durability On High Horsepower, Max-Effort Engines And Boosted Applications
- Includes 3/8" Fuel Rail Kits With Sniper Logo Laser Engraved
- Basic Operating RPM Range 2400-8200 RPM
- Carburetor Flange Not Applicable
- Carburetor Quantity Not Applicable
- Carburetor Studs Not Included
- Category Sniper EFI Intakes
- CNC Ported No
- Color Black
- Construction Fabricated
- Cylinder Head Port Shape Rectangle
- Deck Height 9.24 In
- EGR Port No
- Emission Code 4
- Engine GM LS3/L92
- Flange Style Not Applicable
- Front Maximum Height 9.62 In
- Fuel Injectors Not Included
- Fuel Rail(s) Included Yes
- Fuel System Type EFI
- Gasket Or Seal Included Yes
- Grade Type Performance
- Injector Style Provision LS3/L92 EV6 USCAR
- Intake Port Gasket(s) Included Yes
- Manifold Type Fabricated
- Material Aluminum
- Nitrous Bung(s) Not Included
- Plenum Finish Black
- Product Type Intake Manifold
- Rear Maximum Height 9.015 In
- Recommended Use Forced Induction
- Removable Runners No
- Runner Length 5.512 In
- Single Or Dual Plane Type Single
- Style EFI
- Throttle Body Bore Diameter 90mm
- Throttle Body Gasket Included Yes
- Throttle Body Not Included
- Throttle Bore 90mm
- Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
- Warranty Manufacturer's Limited 90 Day Warranty
- Fits 08-13 6.2L Corvette C6
Description
The Sniper Hi-Ram EFI Fabricated Intake Manifold with 90mm throttle body opening is designed to enhance engine breathing for high-performance GM LS3/L92 engines. This intake manifold increases airflow efficiency and throttle response, ideal for racing and max effort applications. Its design supports forced induction and improves engine power and responsiveness.
Crafted from 5mm thick T6061 sheet aluminum, this fabricated manifold features 100% TIG welding for maximum strength and durability. It has a sleek black finish for a stealthy under-hood look, a larger intake plenum, and tapered runners to optimize airflow distribution. The removable top allows easy inspection and modifications.
Installation is straightforward and hassle-free with included gaskets and hardware. No special modifications are required for proper fitment with compatible throttle bodies.
This product is backed by a manufacturer's limited 90-day warranty.
Designed to fit GM LS3/L92 engine platforms, including 2008 to 2013 6.2L Corvette C6 applications, this intake manifold delivers enhanced performance specifically for these models and engine combinations.
Application. Designed to fit the 2008 to 2013 6.2L Corvette C6, this intake manifold delivers enhanced performance specifically for this model and engine combination.
Sniper 838232
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Install Details & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold
- (1) Fuel Rail Kit
- Installation Hardware
4.5
Reviews of Sniper Intake Products (40)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Corvette
- Base - 08, 09, 10, 11, 12, 13
- Grand Sport - 10, 11, 12, 13
- ZR1 - 09, 10, 11, 12, 13
