(approx) 4 Hours
Mechanical expertise or professional installation required.
- Customer Submitted:

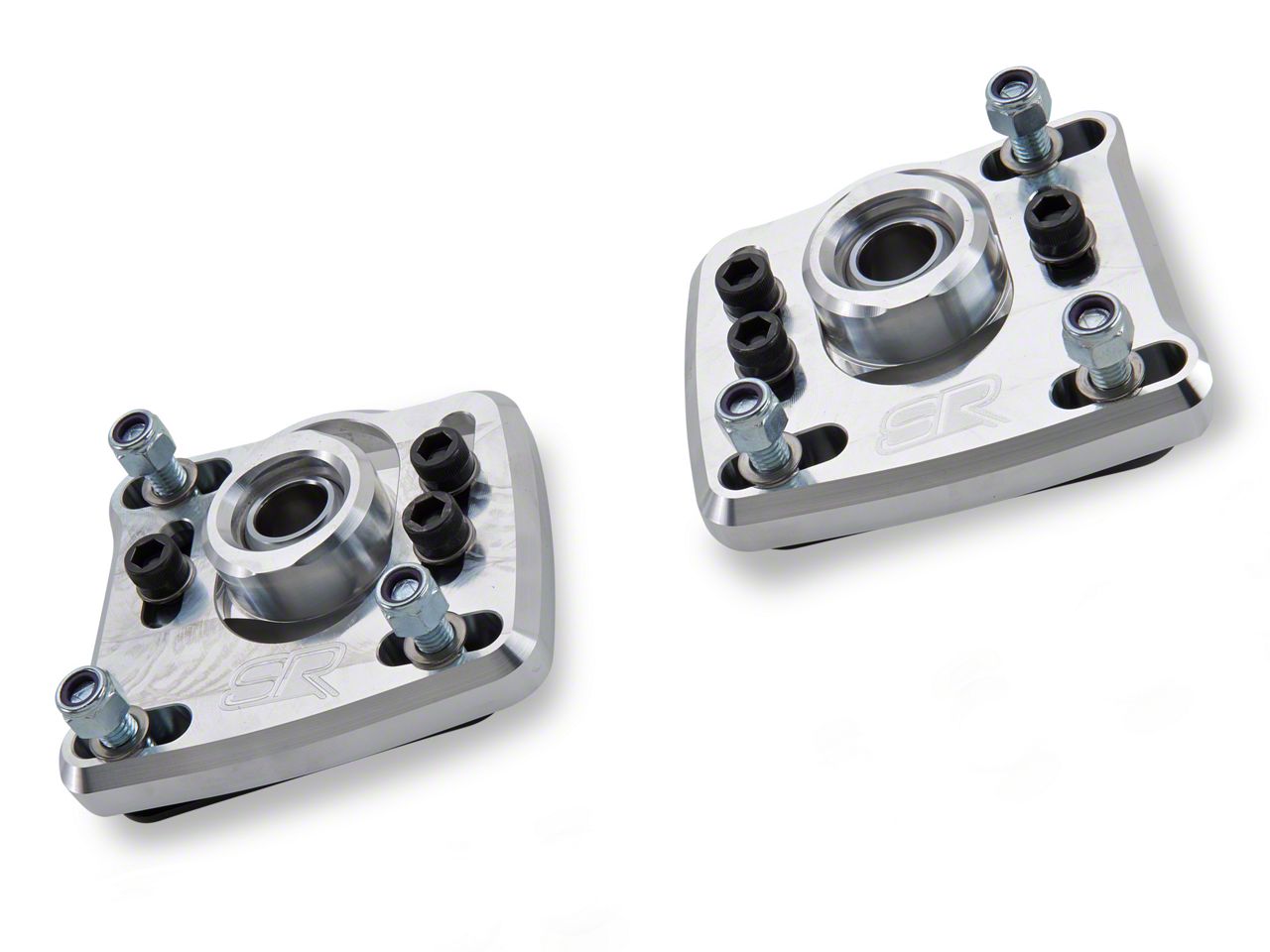

- How to install SR Performance Caster Camber Plates on your 1994-2004 Mustang
Justin: The SR Performance Caster Camber Plates that we have here will be one of your most affordable ways to properly correct both the caster and the camber on your lowered '99 to '04 Mustang. Now, this highly-rated product will deliver a quality billet aluminum build and will allow for up to six degrees of total camber adjustment for right around 150 bucks. Site's gonna call this one a soft three out of three wrenches on the difficulty meter here gang as those front strut assemblies will need to come out. So, therefore expect about four hours or so to complete from start to finish. And if you hang with me for a little bit, we'll show you more on that job later in the video.So, if you're watching this video, then chances are you've already lowered your Mustang or are thinking about it here in the near future and wanna make sure that alignment is gonna be in great shape. I don't blame you, it's a good thought to have. Now, the problem here is guys that depending on how low you go, your factory components might not be able to get your car and the alignment back into spec. And sometimes even those aftermarket camber bolts really aren't going to be up to the task. At that point, it's time to start thinking about or looking into an aftermarket caster camber plate such as the SR Performance options here. Now, on the surface, the SR Performance options here do utilize the very popular three-bolt design as you can see. And that's something majority of your options here in the category will use as well, your only exceptions being from Eibach and Maximum Motorsports which feature a more multi-bolt design and therefore a little bit more fine-tuning. However, guys, if you're not competitively road racing your car the simple three-bolt design of the SR options here will give you all of the adjustment needed to get you back into spec and of course, correct both the caster and camber easily by allowing for up to six degrees of total adjustment for your camber, both positive and negative.Now, I do wanna point out that the SR plates here are compatible with most if not all stock and aftermarket struts, but will not be compatible with a lot of coil-overs, which typically already include some sort of caster camber plate built into the top hat. So, if you are planning on buying these for your set of coil-overs at home, you might wanna make sure they are compatible first before pulling the trigger. Now, the SR plates have been made right here in the USA from high-quality billet aluminum and then feature the engraved SR logo on the top. Finally, guys, I do wanna point out that these caster camber plates are one of the most popular here on the site with well over 100 5-star reviews. So, feel free to read up on some of those if you haven't already and actually hear from owners, SN95 owners that is, who have actually pounded the pavement with these installed and will give you the real-world feedback. But now we wanna show you just how to get everything installed and to do so, as promised here's that detailed walkthrough along with a quick tool breakdown.Man: The tools used for this install are a half-inch impact gun, a 3/8 impact gun, 24-millimeter socket, 21-millimeter socket, 17-millimeter socket, 15-millimeter socket, a drill and a large drill bit. So, the first step of this install is gonna be to get the front into your vehicle up off the ground and pull the front wheels. This will give you the access to remove your caliper and your rotor. Once you do that, then you can start disassembling the rest of the front suspension to get your front spring out. Next, I'm gonna unhook the sway bar end link and then I'm gonna put some support underneath the lower control arm while I disconnect the shock. Now, I put a floor jack underneath my lower control arm to support my spring while I disconnect my shock assembly here at the front. This is gonna keep the spring from unloading uncontrollably while you're unbolting the state assembly from the knuckle. Now, I'm gonna use a little bit of leverage to get underneath the coil spring, push down on the lower control arm and remove the spring. Now, keeping a hand on the shock, I can take the bolts out and remove it from the vehicle.With my shock moved out of the way, I can take a drill and drill out the heads of these rivets if you still have them on your vehicle. The size doesn't matter as long as it's big enough to just get rid of the size of the head for the rivet to get the plate off. Now, I'm gonna use a 21-millimeter socket on an impact gun to get the top of the shock off. So, because this car is gonna be riding at factory height, we're only gonna be using the tall spacer for the bottom and the small spacer for the top so that our caster camber plate will bolt down securely. These spacers keep everything aligned centered so that there's no play in the top of the bolt and then you can just use your factory bolt to hold it all together. Now, I can pre-install the caster camber plate into the vehicle and then install my shock into the caster camber plate as you see here.So, I'll put my bracket in from the bottom side and then I can install the caster camber plate on top. Now, I'm gonna use the 17-millimeter socket and just tighten up the bolts for the caster camber plate. Right now I'm leaving them in a basically a neutral location and I'll make all of my adjustments when I do my alignment. All right. Now, you can just put the bottom back together and repeat this entire process on the other side. And that's gonna wrap up this review and install for the SR Performance Caster Camber Plates for your 1994 to 2004 Mustang. Thanks for watching and for all things Mustang keep it right here at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details
SR Performance 41293
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 4 Hours
Mechanical expertise or professional installation required.
What's in the Box
May 04, 2020
My car looks much better, I love it
I highly recommend it, I installed it myself very easy thanks to the attached instructions. the appearance of the engine improved. When installing the lower springs I needed the adjuster too.Helpful (1)
April 01, 2020
Would be great if they were actually restocked.
Along with the SR front struts, I've been waiting weeks with these in my cart so that I can finally get my alignment after lowering my car. However, American Muscle never seems to restock these. It's extremely frustrating. Supply and demand, fellas! If these sell out quickly, STOCK MORE. I'm a loyal customer and this have never happened to me before on this site, so I'm a little surprised. Please fix this, guys.Helpful (3)
March 26, 2020
Excellent product. Great fit, easy to install. Looks awesome.Helpful (3)
March 20, 2020
Perfect price range and quality with these plates you won't be disappointed comes with a lot of spacers and custom spacers for different size shock tubesHelpful (3)
February 23, 2020
Easy install. Step by step instructions. They work perfectly and look great too!Helpful (5)
February 08, 2020
My 02 drives straighter now than when I first got the carHelpful (4)
January 19, 2020
pieces look great
Parts looks great easy enough to install, haven’t had the time to dial everything in yet but lm sure they will work fine.Helpful (3)
January 13, 2020
Just installed the SR caster camber plates and it was an easy install. I have much more alignment adjustment over my old Steeda plates. Install took about an hour. And they look great.Helpful (5)
January 09, 2020
CAster CAmber Plates
Awesome product. Set front end alignment perfect with new springs and struts. Koni struts and springs and Lowering springs.Helpful (4)
November 08, 2019
it fixed my camber and caster very well but...
one of the studs did strip once i tried putting it onHelpful (4)
How much camber adjustment is available with this kit? My 01 mustang gt is lowered at least 2 inches on 19 inch saleens.
The SR Performance Caster Camber Plates can adjust your camber about six degrees in or out.
are these plates compatible with Vogtlang sport lowering springs?
The SR Performance Caster Camber Plates can be used with the stock struts equipped with Vogtland Lowering Springs.
Will I need to get a alignment after installation of this product.
We do recommend getting an alignment after installation.
Will these work with koni set.ts struts and Ford performance lowing b springs
Yes the SR Performance Caster Camber Plates will be compatible with the Koni STS Struts and Ford Performance Lowering B-Springs.
Will these work with the upr coilovers on the k member kit?
It's possible that you need more adjustment than these offer, though unlikely. The shop themselves would have to determine if these can be used ultimately or not.
For cars with a stock ride height, a tall strut bushing and a spacer should be used, For cars lowered .5”-.75”, a tall strut bushing should be used. For cars lowered 1-2” the bump stop needs to be cut just under the ‘u’ shaped grooves. You should use one small strut bushing and a spacer for this setting.
No, these will not lower the vehicle.
Unfortunately these have not been tested with the Raceland coil overs, so we would be unable to guarantee fitment.
These caster camber plates are compatible with any front struts and springs that are not coil-overs.
The SR Performance Caster Camber Plates will fit with Eibach Sportline Lowering Springs on the stock and most aftermarket struts.
Unfortunately, we do not sell replacement parts or kits for the SR Performance caster camber plates. If it was purchased within 30 days and was missing a part we can exchange them for you.
We are unable to confirm fitment on any caster camber plates since you have modified the design of the springs.
We have not tested the SR Performance Caster Camber Plates with Racland coilovers, but we do not believe these to be compatible.
