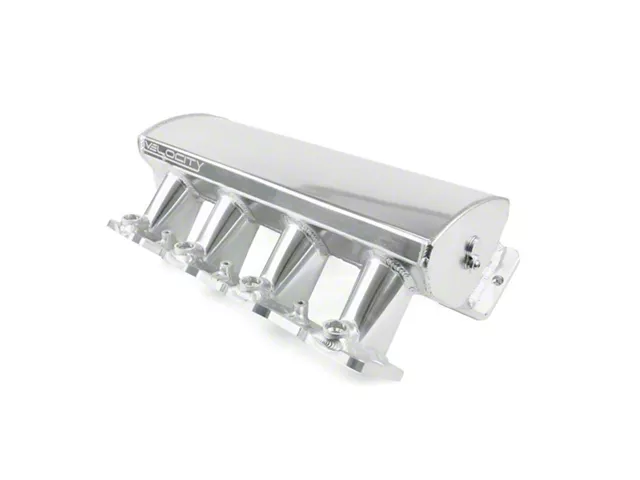

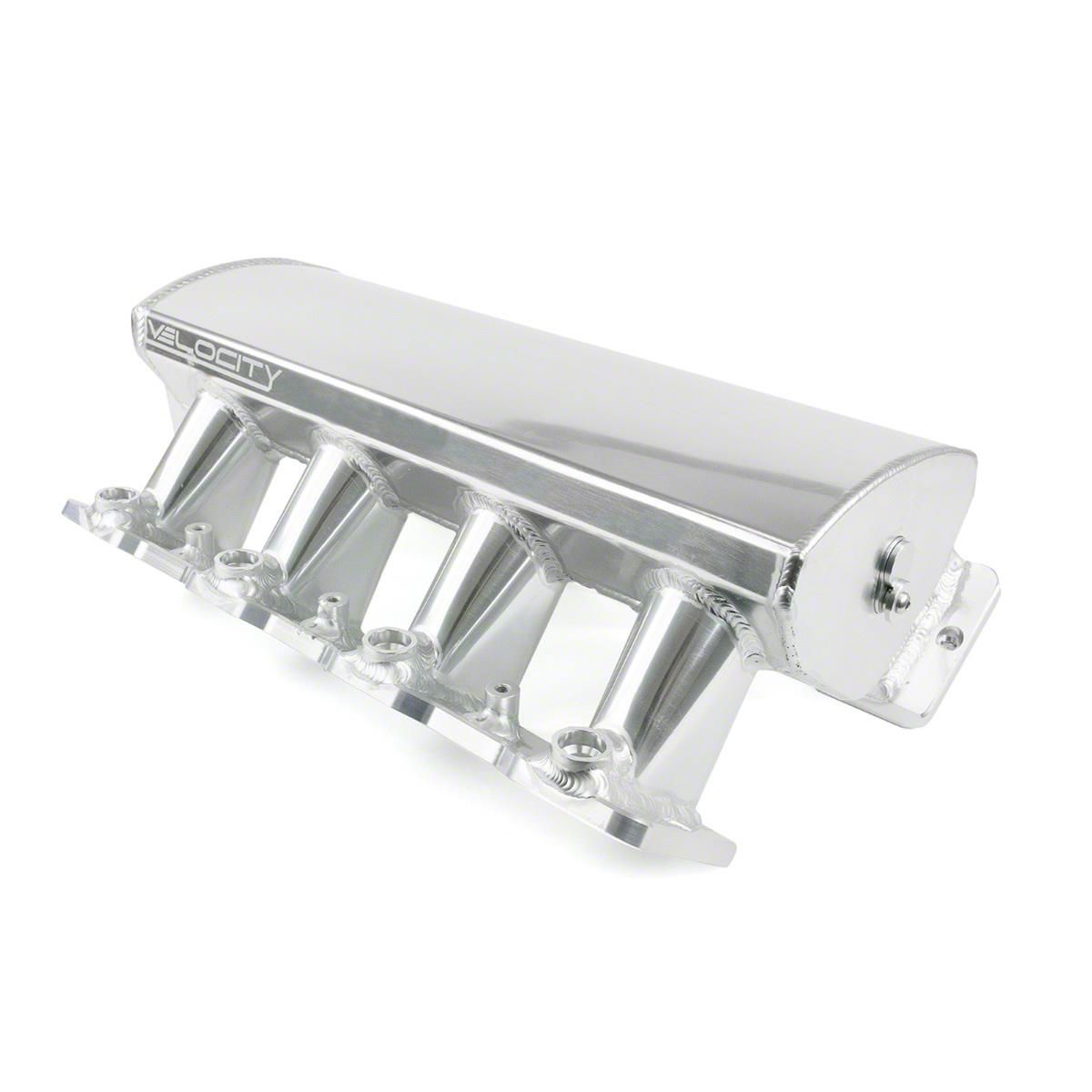

Top Street Performance 102mm Fabricated Aluminum Angled Low Profile Intake Manifold; Clear Anodized (97-04 Corvette C5; 05-07 Corvette C6 Base)Find parts that fit my vehicle
Item CV4615
Our Price
$771.60 each
Military, Medical & First Responders
$38.58 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Fits GM LS Cathedral-Port Engines
- 102mm Throttle Body Opening
- Fabricated Aluminum Construction for Strength and Light Weight
- Supports High-Horsepower EFI Builds and Boosted Applications
- TIG-Welded T-6061 Aluminum for Durability
- Large Center Plenum with Short Runners and Velocity Stack Runner Entries to Maximize Airflow
- Individual Port O-Rings for Reliable Seal at Intake Runners and Throttle Body
- Clear Anodized Finish Provides Corrosion Resistance and Clean Appearance
- Designed for Multi-Port EFI Systems with EV1 Injector Provisions
- LSA/LS9-Style MAP Sensor Bung Included
- Gasket or Seal Included
- Operating RPM Range: 1,500 to 6,500 RPM
- Standard Deck Height with 5.000 Inch Runner Length
- Includes 4 Supplemental Bosses for Additional Sensor or Component Mounting
- Fits 97-04 Corvette C5; 05-07 Corvette C6 Base Models
Description
Performance Intake Solution. The Top Street Performance 102mm Fabricated Aluminum Angled Low Profile Intake Manifold with Clear Anodized finish is designed to enhance airflow and throttle response for LS cathedral-port engines. Ideal for street performance and racing applications, this manifold supports high-horsepower naturally aspirated and boosted builds by increasing air capacity and improving cylinder distribution.
Construction and Appearance. Crafted from TIG-welded T-6061 aluminum, this intake manifold features a robust and lightweight design. The clear anodized finish provides corrosion resistance while maintaining a sleek, professional appearance suited for high-performance engine bays.
Installation. Installation is straightforward with no drilling required, fitting directly onto LS cathedral-port intake ports. It is recommended to verify hood clearance and compatibility with fuel system components and throttle bodies prior to installation.
Application. This intake manifold fits 97-04 Corvette C5 and 05-07 Corvette C6 Base models, providing improved airflow for these specific LS cathedral-port engines without modifications to the intake ports.
Top Street Performance 81001CA
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Intake Manifold
