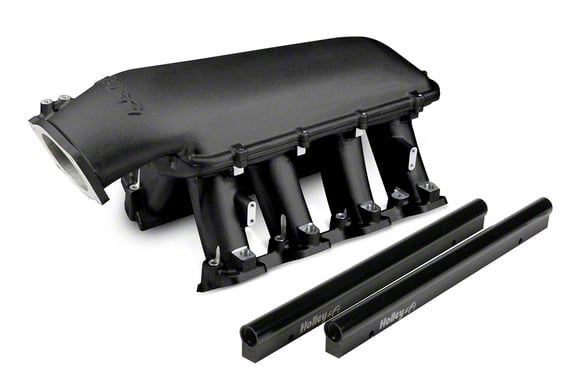

Holley Corvette Hi-Ram EFI Intake Manifold with 105mm Throttle Body Mount; Black 300-123BK (97-04 Corvette C5; 05-07 6.0L Corvette C6)

Name: Holley Hi-Ram EFI Intake Manifold with 105mm Throttle Body Mount; Black (97-04 Corvette C5; 05-07 6.0L Corvette C6)
Brand: Holley
SKU: CV5213
Price: 1249.95 USD
Availability: InStock

Product Information

Features, Description, Q&A, Specs & Installation

Features

Ls1/Ls2/Ls6 Cathedral Port Efi Fits 1 X 105Mm Throttle Body
Intended For Use On N/A Or Forced Induction Engines In The 6.0 To 7.0+ Liter Range, Max Power At 7000-8000+ Rpm
Cost Effective Alternative To Fabricated Sheet-Metal For High-Performance Applications Where Induction System Height Is Not Limited
Aggressive, Bold, Race-Bred Styling Suitable For Drag Race, Muscle Car, Marine, Off-Road, Sandrails, Pulling Trucks, Track, Street-Rod Applications
Throttle Body Flange Location With 102Mm Efi Plenum Top: Height ï¿½ 8.42" From Engine Block Lifter Valley Cover Flange
Total Height With 92/105Mm Efi Plenum Top ï¿½ 12.32" To The Lifter Valley Cover Flange On Engine Block
Port Size ï¿½ 2.49" Height X 1.21" Wide
Runner Length ï¿½ 6.58", As-Cast Runner Cross-Sectional Area ï¿½ Tapered 4.25 Inï¿½ To 2.53 Inï¿½
Plenum Top Gasket Type ï¿½ 3/32" Round O-Ring Cord
Mounting Flange Gasket Type ï¿½ Standard LS3 Molded O-Ring
Basic Operating Rpm Range 3500-8000 Rpm
Construction Cast Aluminum
Cylinder Head Port Shape Cathedral
Deck Height 9.24 In
Egr Port No
Emission Code 4
Fuel System Type Efi
Gasket Or Seal Included Yes
Plenum Finish Black
Fits 97-04 Corvette C5; 05-07 6.0L Corvette C6

Description

High-Performance Intake. The Holley Hi-Ram EFI Intake Manifold with 105mm Throttle Body Mount; Black is designed to optimize air flow for naturally aspirated or forced induction engines from 6.0 to 7.0+ liters. It supports high power output at elevated RPMs, making it ideal for racing and muscle car applications where maximum engine breathing is critical.

Construction and Appearance. This intake manifold is precision cast from durable aluminum for strength and performance reliability. It features a black ceramic coating that not only enhances corrosion resistance but also gives it a sleek, aggressive look suitable for race and street vehicles.

Installation. Installation is straightforward with no drilling required, facilitating an efficient upgrade process. It mounts directly to the engine using provided gaskets, ensuring a secure and sealed fit.

Warranty. Covered by a manufacturerï¿½s limited 90-day warranty.

Application. Specifically designed to fit the 97-04 Corvette C5 and 05-07 6.0L Corvette C6 models, providing a direct fitment solution for enhancing intake performance in these vehicles.

Holley 300-123BK
