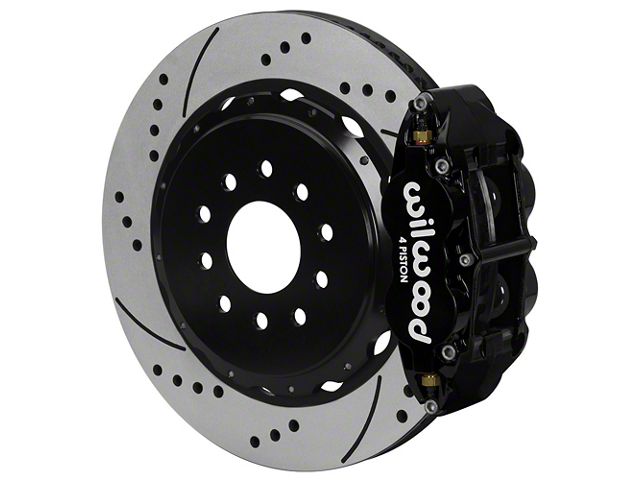

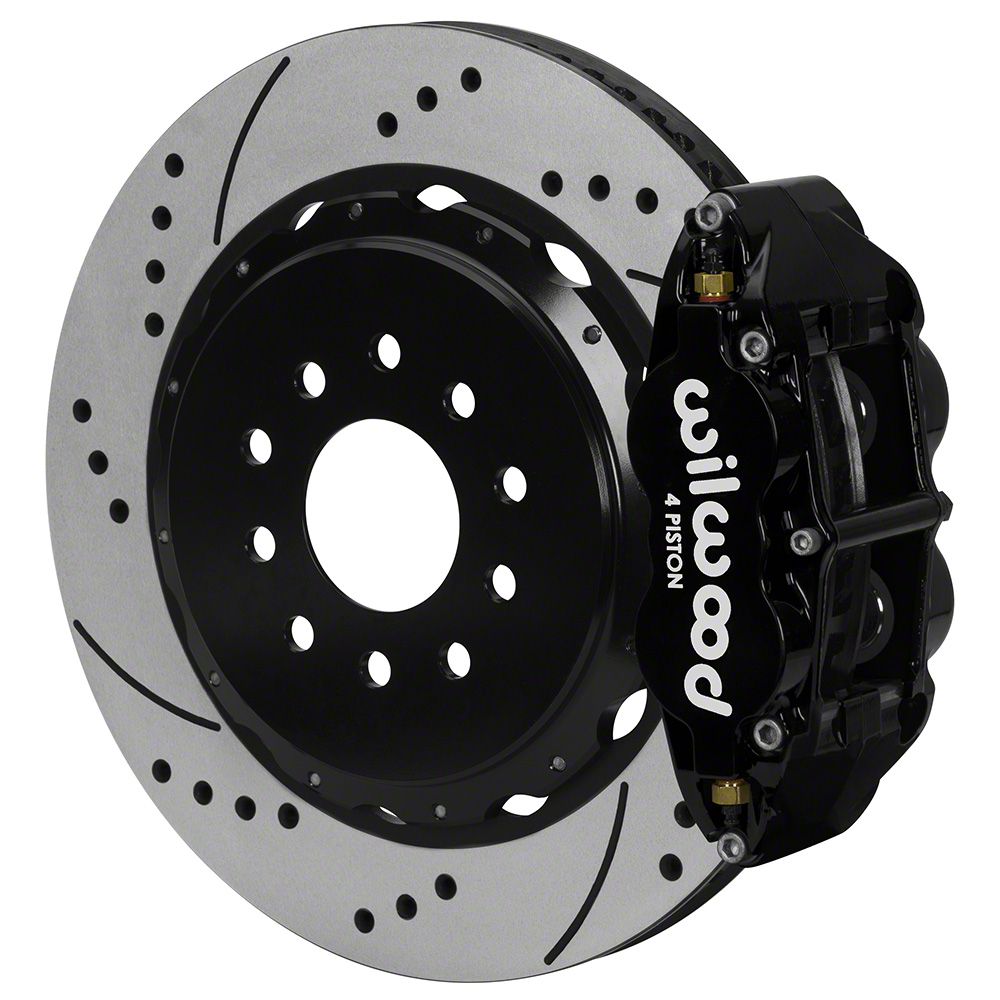

Wilwood Forged Narrow Superlite 4R Rear Big Brake Kit with 14-Inch Drilled and Slotted Rotors for OE Parking Brake; Black Calipers (97-13 Corvette C5 & C6)Find parts that fit my vehicle
Item CV7185
Our Price
$2,330.34 kit
Military, Medical & First Responders
$116.52 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Item Options
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Forged Narrow Superlite 4R Four Piston Calipers
- Brake Pads With BP-10 Compound
- 13 To 14 Inch Rotors
- Retains Full Use Of OE Parking Brake
- Compatible With Master Cylinder Output And ABS
- Designed For Custom High Performance Street And Show Machines
- Complimentary Style And Performance With 13 Inch And Larger Front Brake Upgrades
- Optional Caliper Finishes And Rotor Designs Available
- Rear End Axle: OEM
- Axle Offset: 0.00
- Mount Type: Radial
- Caliper Type: 4 Piston Black Powder Coat
- Rotor Diameter: 14.00 Inch
- Minimum Wheel Diameter Required: 18 Inch
- Requires Aftermarket Wheel Spacers Of 1/8 Inch For Installation With OE Wheels
- Disc Material: Spec-37 Iron
- Rotor Style: SRP Drilled And Slotted Black Electro Coat
- Rotor Width: 1.10 Inch
- Hat Material: Aluminum With Black E Coat Finish
- Hat Bolt Circle: 5 x 4.50 And 5 x 4.75 Inch
- Caliper Piston Sizes: 1.12 Inch Bore (x4)
- Brake Pad Area: 8.2 Square Inch
- Brake Pad Volume: 3.8 Cubic Inch
- Brake Pad Type: BP-10 Compound
- Fits 97-13 Corvette C5 & C6
| Brand | Wilwood |
| Brake Kit Location | Rear |
| Brake Kit Rotor Type | Drilled and Slotted |
| Brake Kit Minimum Wheel Size | 18 Inch |
Description
HIGH PERFORMANCE BRAKING. The Wilwood Forged Narrow Superlite 4R Rear Big Brake Kit with 14-Inch Drilled and Slotted Rotors for OE Parking Brake; Black Calipers is designed to upgrade the rear brake system of vehicles retaining the original equipment parking brake mechanism. This brake kit delivers enhanced stopping power, improved heat dissipation, and the durability required for high-performance street and show vehicles, providing improved braking confidence and style.
QUALITY MATERIALS AND FINISH. The kit features forged aluminum Narrow Superlite 4R calipers with four stainless steel pistons and a black powder coat finish for corrosion resistance and aesthetics. The rotors are constructed from Spec-37 iron with a drilled and slotted surface, finished in black electro-coat to enhance durability and heat management. A machined aluminum rotor hat with black e-coat finish securely mounts the rotor and integrates the parking brake assembly.
EASY INSTALLATION. This kit bolts directly onto the OEM axle housing flange with radial mount calipers, requiring no drilling or modifications. Installation requires aftermarket 1/8 inch wheel spacers for use with original equipment wheels to ensure the correct clearance.
APPLICATION. This brake kit fits 1997-2013 Corvette C5 and C6 models, designed to maintain compatibility with OE parking brake, master cylinder output, and ABS functions. It is intended for vehicles with OEM rear axle flanges and zero offset.
Wilwood 140-9119-D
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Brake Kit
