Wilwood SRP Drilled Performance Brake Rotor; Rear Passenger Side (97-04 Corvette C5; 05-13 Corvette C6 Base)Find parts that fit my vehicle

Item CV9119
Product Image
194 Reviews of Wilwood
Our Price

$145.57

Military, Medical & First Responders $7.28 Available in AM Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Width 1.03 In
      • Diameter 12.01 In
      • Mount Side R/H
      • Material Iron
      • Vane Count Vented
      • Weight 16.20 Lbs
      • Type SRP-BLK
      • Style SRP Dimpled & Slotted
      • Surface Finish Black Electro Coat
      • Bedded No
      • Balanced No
      • Lug ID / Registration 2.78 In
      • Far Side Inside Diameter 8.80 In
      • Offset Dimension 0.590 In
      • Shoe Inside Dimension 7.48 In
      • Clearance Inside Diameter 6.17 In
      • Wheel Bolt Circle 5 x 4.75 In
      • Stud Diameter 0.52 In
      • Face Thickness 0.25 In
      • Fits 97-04 Corvette C5; 05-13 Corvette C6 Base

      Description

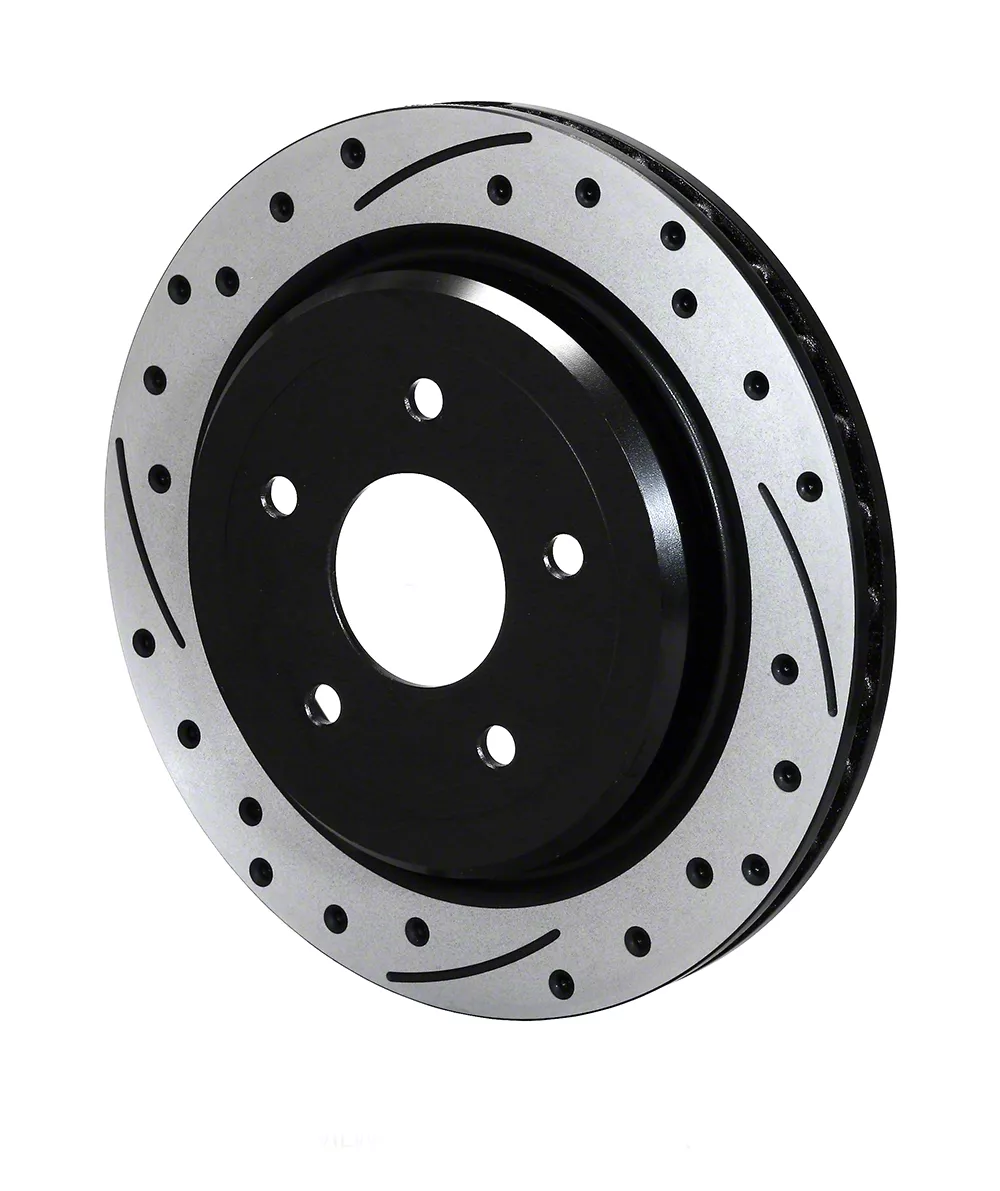

      Performance Brake Rotor. The Wilwood SRP Drilled Performance Brake Rotor; Rear Passenger Side is engineered to enhance braking efficiency and pedal feel under demanding driving conditions. Its vented design with directional cross-drills and face slots helps reduce pad glaze and uneven build-up, ensuring consistent pad engagement and improved brake response.

      Construction and Appearance. Manufactured from long grain carbon iron with precision machining to tight tolerances, this rotor delivers durability and performance. It features a vented rotor design finished with a durable black electro coat for corrosion resistance and a sleek, professional appearance.

      Installation. Installation is straightforward and requires no additional drilling, making this rotor suitable for custom, show, and high-performance applications without the need for modifications.

      Application. This rotor is specifically designed to fit the rear right-hand brake assemblies of 97-04 Corvette C5 and 05-13 Corvette C6 Base models.

      Wilwood 160-14040-BK

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Reviews of Wilwood Brakes Products (194)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Corvette

      • Base - 05, 06, 07, 08, 09, 10, 11, 12, 13
