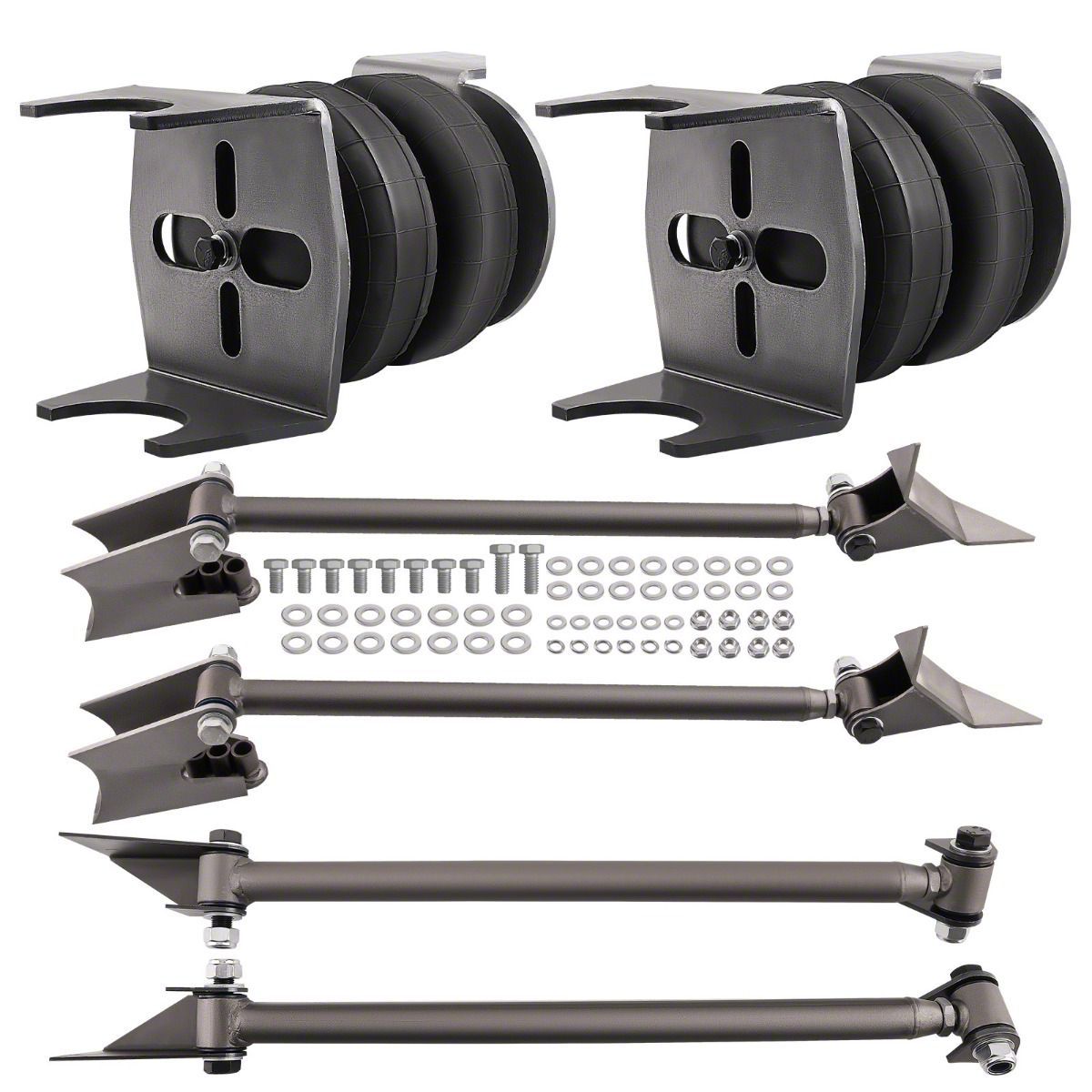

Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required)
Item CC48088
Our Price
$419.99
Military, Medical & First Responders
$21.00 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- 4 Heavy Duty Steel Bars
- 4 Zinc Plated Steel Rod Ends With Urethane Bushings
- 2 Steel Weld-On Triangulated Frame Mounts
- 2 Steel Weld-On Lower Axle Tube Mounts
- 4 Steel Weld-On Center Link Axle Mounts
- 2 Steel Weld-On Side Frame Mounts
- 8 Button Head Bolts With Nyloc Nuts
- 2 Weld-On Lower Axle Bag Mounts
- 2 Weld-On Upper Frame Bag Mounts
- 2 Standard 2500 Single 1/2 Inch NPT Port Air Bags
- DOM Tubing Outside Diameter 1.25 Inch
- DOM Tubing Wall Thickness 0.156 Inch
- All Bars 24.00 Inch Center-To-Center When Adjusted Fully In
- Air Bag Capacity 2500 LBS
- Air Bag Diameter 6 Inch
- Air Bag Extended Length 8 Inch
- Air Bag Closed Length 2.75 Inch
- Two Top Mounting Holes Approximately 1-3/4 Inch Eye to Eye
- Bottom Has One Mounting Hole in Center
- All Mounting Holes Are 3/8-16 UNC Thread
- Instructions Not Included
- Professional Installation Recommended
- Rod Ends Available In Silver And Black
- Fits Universal Applications; Some Adaptation May Be Required
Description
Heavy Duty Suspension Kit. The Weld-On Triangulated 4-Link Air Ride Suspension Kit offers a rugged solution to improve vehicle suspension performance. Engineered for air ride suspension systems, this kit enhances rear axle control and overall ride quality. It is ideal for setups requiring precise axle movement and adjustable ride height.
Construction and Appearance. Made from heavy-duty steel and DOM tubing with a 1.25-inch outside diameter and 0.156-inch wall thickness, every component ensures strength and reliability. Zinc plated rod ends with urethane bushings provide corrosion resistance and smooth articulation. The kit includes raw steel weld-on mounts, ready for custom paint or powder coating.
Installation. This kit requires professional weld-on installation to guarantee proper fitment and function. Welding and precise alignment are necessary; drilling is not specified.
Application. Designed for universal fitment, this kit may require some adaptation to suit different vehicle configurations. It is well suited for custom or off-road builds without specifying exact vehicle models.
