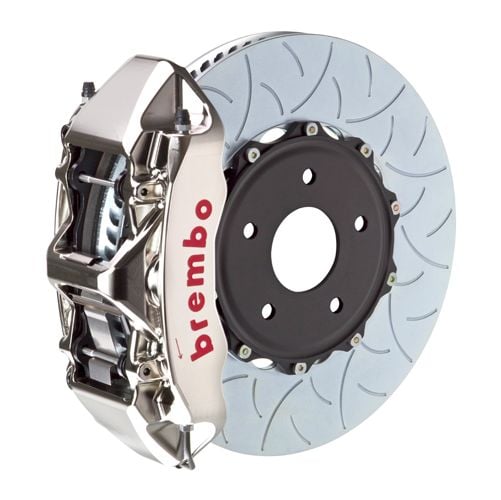

Brembo GT-R Series 6-Piston Front Big Brake Kit with 350x34mm 2-Piece Type 3 Slotted Rotors; Nickel Plated Calipers (20-26 Corvette C8 Stingray)Find parts that fit my vehicle

Name: Brembo GT-R Series 6-Piston Front Big Brake Kit with 350x34mm 2-Piece Type 3 Slotted Rotors; Nickel Plated Calipers (20-26 Corvette C8 Stingray)
Brand: Brembo
SKU: CV21800
Price: 9095.00 USD
Availability: OutOfStock
Rating: 5.0 (2 reviews)

Item CV21800

2 Reviews

Our Price

-0% $9,095.00 kit Was $9,095.00

Military, Medical & First Responders $454.75 Available in AM Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features & Specs

6-Piston Billet Monobloc Calipers with Radial Mount
350x34mm 2-Piece TY3 Discs
Complete Front Axle Set
Pre-Assembled for Easy Installation
All Necessary Hardware Included
Caliper Piston Design: Inner Pressure Seal, Recessed Dust Boot, Ventilated Stainless Steel Insert
Disc Material: Advanced High Carbon Alloy with Corrosion Resistant Plating
Disc Air Gap: 17mm
Disc Annulus: 60mm
Disc Vane Design: Vented Curved 72 Vane
Disc to Hat Mounting System: Floating D-Bobbin with Anti-Rattle Spring
Pad Compound: Brembo High Performance FM1000
Pad Volume and Surface Area: 107.3 | 95.4
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters
Fits 20-26 Corvette C8 Stingray

Brand

Brembo

Brake Kit Location

Front

Brake Kit Rotor Type

Slotted

Brake Kit Minimum Wheel Size

18 Inch

Description

High-Performance Brake System. The GT-R-1N-.8022A is a complete front axle brake upgrade designed to enhance stopping power, heat management, and durability for street, track, and race use. It delivers exceptional braking performance through advanced caliper and disc technology, ensuring reliable control in demanding driving conditions.

Construction and Appearance. This brake system features billet monobloc radial mount calipers with six pistons, engineered for optimum rigidity and pedal feel. The discs are made from advanced high carbon alloy with corrosion-resistant plating and ventilated with 72 curved vanes for superior heat rejection. The two-piece design incorporates a floating D-bobbin mounting system with an anti-rattle spring, which reduces noise and enhances thermal capacity.

Installation. The system comes pre-assembled with all necessary hardware included for ease of installation, utilizing Brembo-engineered CNC billet caliper adapters. It is designed to fit without modifications or drilling, facilitating a straightforward upgrade process.

Application. Specifically designed to fit 20-26 Corvette C8 Stingray.

Brembo 1N3.8022AR
