Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Integrated Thermostat Housing Assembly; 160-Degree (16-18 Camaro SS)Find parts that fit my vehicle
Item CC40961
Our Price
$109.99 each
Military, Medical & First Responders
$5.50 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Save with Open Box
From $60.49
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- High Grade Stainless Steel, Copper, and Plastic Construction
- Meets Or Exceeds OEM Standards
- Consistent And Precise Response To Cooling System Needs
- Original Equipment Design For Worry-Free Direct Fit Replacement
- 100% Tested And Calibrated
- Seal Quantity: 1 (Rubber O-Ring)
- Bypass Hose Connection Type: Barbed
- Inlet Hose Connection Type: Bolt On
- Bypass Quantity: 1
- Valve Type: Disk
- Bypass Length: 0.97 In / 24.64 Mm
- Outlet Hose Connection Type: Barbed
- Includes Sensor: No
- Inside Diameter: 2.07 In / 52.58 Mm
- Gasket Or Seal Included: Yes
- Outlet Port Inside Diameter: 1.07 In / 27.18 Mm
- Material: Plastic, Stainless Steel, Copper
- Mounting Hole Quantity: 3
- Grade Type: Standard Replacement
- Bolt Hole Center To Bolt Hole Center: 2.80 In / 71.12 Mm and 3.02 In / 76.71 Mm
- Mounting Hardware Included: No
- MAP Controlled: No
- Inlet Outside Diameter: 2.61 In / 66.29 Mm
- Gasket Or Seal Required: Yes
- Inlet Quantity: 1
- Terminal Quantity: 0
- Flange Width: 3.40 In / 86.36 Mm
- Includes Jiggle Pin Check Valve: No
- Outlet Port Quantity: 2
- Bypass Inside Diameter: 0.08 In / 2.03 Mm
- Bypass Outside Diameter: 0.35 In / 8.89 Mm
- Flange Length: 3.38 In / 85.85 Mm
- Outlet Port Length: 1.23 In / 31.24 Mm
- Inlet Inside Diameter: 2.07 In / 52.58 Mm
- Bleeder Hole: No
- Actuator Type: Mechanical
- Flange Thickness: 0.41 In / 10.41 Mm
- Start To Open Temperature: 160.0 Deg. F / 71.11 Deg. C
- Outlet Port Outside Diameter: 0.31 In / 7.87 Mm and 1.75 In / 44.45 Mm
- Mounting Hole Diameter: 0.25 In / 6.35 Mm
- Fits 2016-2018 Camaro SS
Description

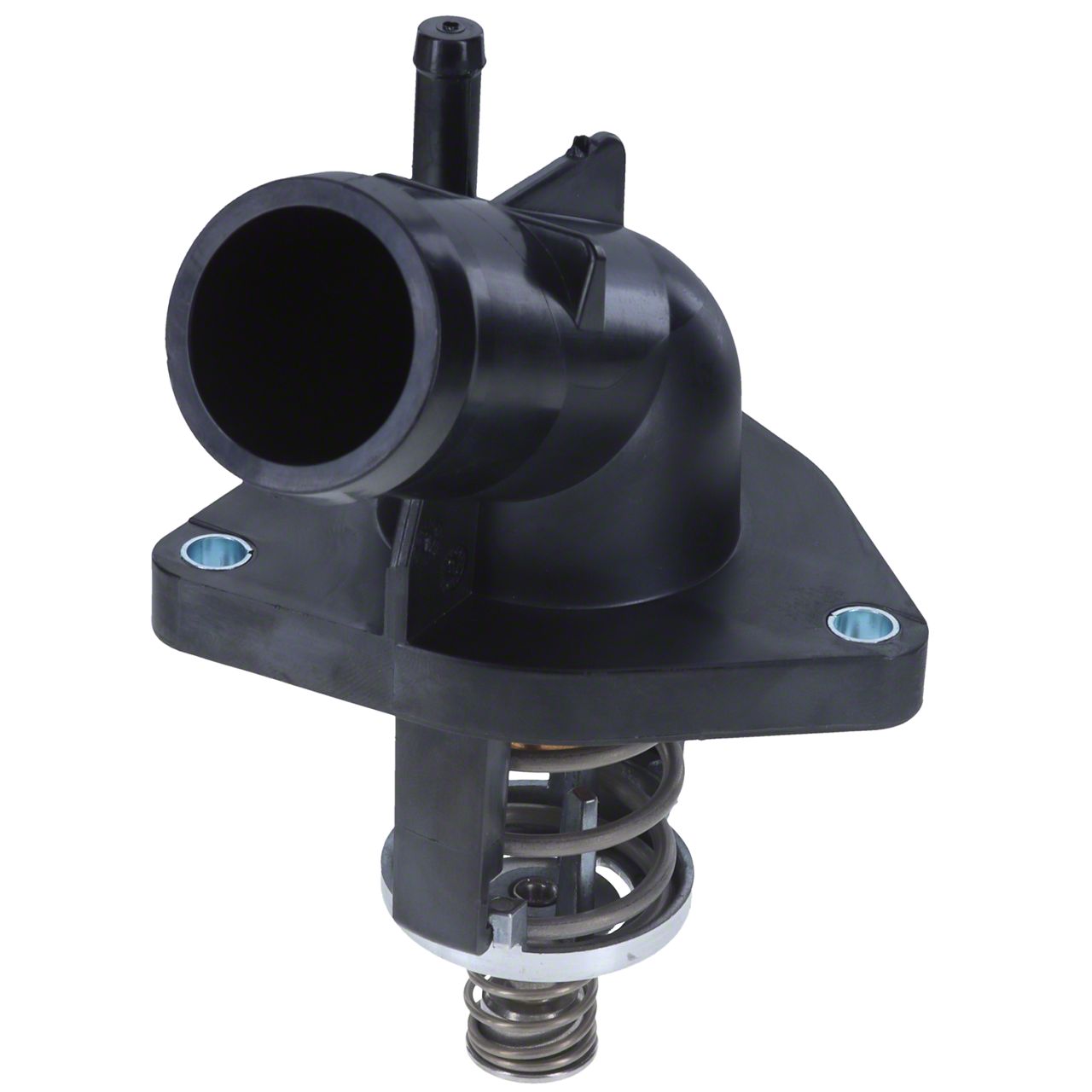

Integrated Thermostat Assembly. The Integrated Thermostat Housing Assembly with a 160-degree Fahrenheit start-to-open temperature regulates engine temperature by controlling coolant flow within the cooling system. It ensures the engine maintains optimal operating temperature, preventing overheating and promoting efficient performance. This thermostat assembly is a critical component that maintains engine reliability and performance.
Construction and Appearance. Crafted from high-grade stainless steel, copper, and sturdy plastic, the thermostat housing provides durability and corrosion resistance. It features a robust plastic flange with a black finish for a professional appearance. The assembly includes rubber O-ring seals to ensure a secure and leak-free fit.
Installation. Designed as a direct-fit replacement, this thermostat housing requires no drilling or modifications. Its original equipment design enables straightforward installation suitable for professional mechanics and experienced enthusiasts.
Application. This thermostat assembly fits the 2016-2018 Camaro SS models, meeting OEM standards for seamless integration within the vehicle’s factory cooling system.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Thermostat
- (1) Thermostat Housing
- (1) Gasket
Tech Specs
Tech Guides:
4.0
Reviews of similar Engine Products (9)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Camaro
- SS - 16, 17, 18
