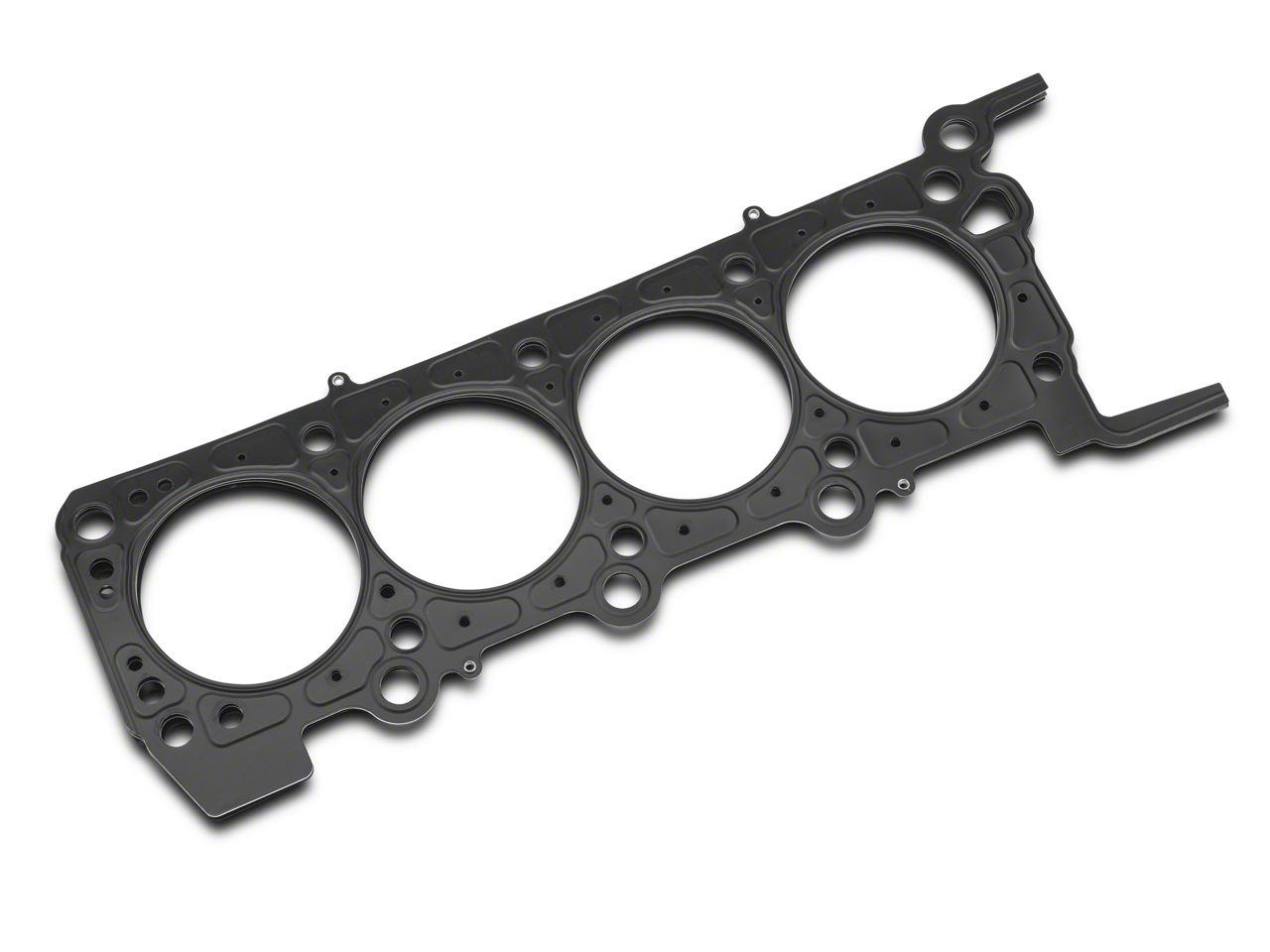

Cometic Multi-Layer Steel Head Gasket - Left - 92mm Bore (96-04 4.6L; 07-12 GT500)

Market Price $133.38 You Save 12% ($15.35)
Our Price

$118.03 (each)

FREE Shipping
  • Item 388895
  • MPN# C5118-030

In Stock Ships same business day.
Ship to: ASHBURN - 20146
Please enter a valid Postal Code
We're sorry, zip can't be updated at this time.
Choose options to add to cart
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Multi-Layer Steel (MLS)
    • 92mm Custom Bore Head Gasket
    • Increased Strength
    • Resists Corrosion
    • Stainless Steel Construction
    • Embossed/Coated with Viton
    • Left Side - Driver Side Gasket
    • Fits 1996-2004 4.6L and 2007-2012 5.4L Mustangs
    Maximum Seal Performance. Modding the heads in your 4.6L or 5.4L Pony just got a bit easier with this Cometic Multi-Layer Steel 92mm Bore Head Gasket. This driver side MLS Head Gasket won't need to be re-torqued and won't need any sealants. The embossing design of this gasket provides even clamp load, allowing for measurable reduced bore distortion.

    Quality Construction. Crafted from multi-layer stainless steel for increased strength and corrosion resistance, this left side Cometic MLS Head Gasket will provide maximum sealing performance for your 2V or 4V customized Pony. The outer layers have been embossed as well as coated on both sides with Viton, which is a flouroelastomer rubber based material that can resist heat up to 250°C / 482°F. The center shim layer of stainless steel is uncoated and measures 0.030" thick.

    Application. This driver side Cometic 92mm Bore Multi-Layer Steel Head Gasket is designed for modular 1996-2004 4.6L and 2007-2012 5.4L Mustangs, including GT, Bullitt, Mach 1, Cobra and GT500 models, that have a custom 92mm diameter bore engine.

    Note. The stock 4.6L and 5.4L engines both have a 90mm diameter bore from the factory.

    Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 2007 2008 2009 2010 2011 2012 Details

    What's in the Box
    • (1) Head Gasket
    Installation Info
    Will it fit my Mustang?
    • Bullitt - 01
    • Cobra - 96, 97, 98, 99, 01, 03, 04
    • GT - 96, 97, 98, 99, 00, 01, 02, 03, 04
    • GT500 - 07, 08, 09, 10, 11, 12
    • Mach 1 - 03, 04

    For custom 92mm Bore Heads

    Customer Photos

    You Might Also Like

    1 Questions / 1 Answers

    Ask a Question

    what is the compressed thickness of this gasket ? i am building my motor and need to know to calculate my compression ratio. thanks.

    alex

    • The compressed operating thickness of this Cometic Multi-Layer Steel Head Gasket is .030".

      AMJEFF

    Helpful (0)

    More Products You Might Like

    Customer Reviews (1) Write a Review

    Overall Rating 5.0

    out of 5 stars




    • 5/5

      June 30, 2016

      Direct fit

      This was perfect! I usually don't like to order these kind of parts off line because they usually aren't the right ones, but I gave it a shot and let me tell you I was not disappointed. Great quality.

      Devilpup

      Year: 2006 Submodel: GT

      Helpful (1)
