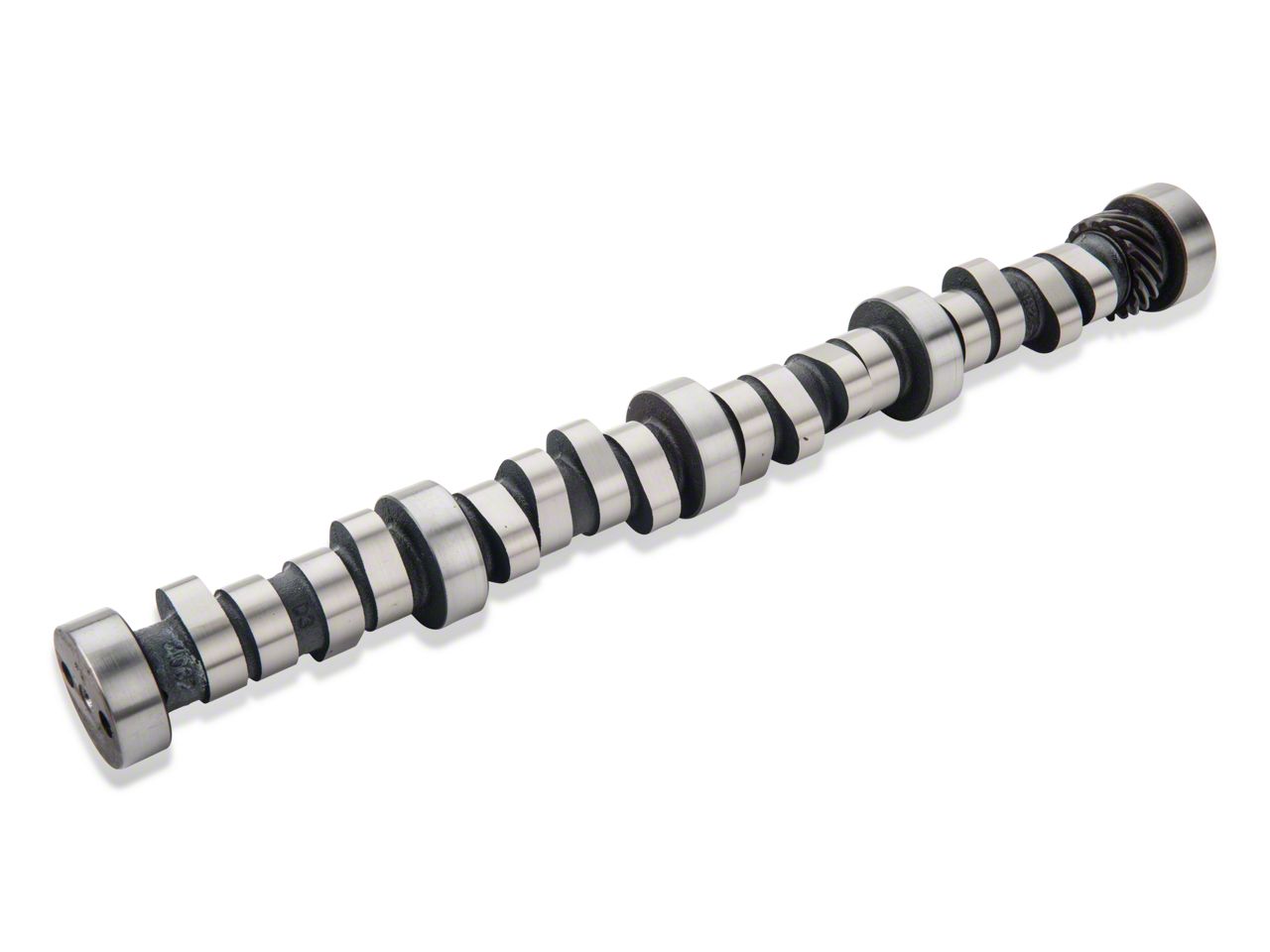

Comp Cams Stage 1 Xtreme Energy XE264HR Camshaft (86-95 5.0L)

Item 30145
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $307.99 You Save 12% ($36.00)
Our Price

$271.99 (each)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Mild Upgrade Over Stock
      • Increased Street Performance
      • Smooth Idle
      • Good HO Replacement Cam
      • Hydraulic Roller Lifter
      • For 1986-1995 5.0L Mustangs with Stock ECU and Injectors

      Description

      Street Performance. This Comp Cams Xtreme Energy cam is a good replacement choice for the High Output (HO) 5.0 that was featured in the later Foxbody Mustangs for mild street performance gains. Perfect for bolt on modifications to make good overall power without sacrificing any daily driveability.

      Smooth Idle. Give your 5.0 Pony a nice smooth idle that is comparable to stock.

      Application. This Comp Cams XE264HR Camshaft is designed for use in Mass Air equipped 1986-1995 5.0L V8 Mustangs with the factory computer and injectors.

      Fitment: 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 Details

      MPN# 35-349-8

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Customer Reviews (2)

      Write a Review

      Ratings Summary

      5 out of 5 overall rating from 2 customers

      Installation Time: Afternoon





      • March 21, 2017

        5 1994 Cobra - JamieC

        Happy with my purchase

        Great cam for the price. very happy with the short time it took to arrive.

        Helpful (11)
      • November 13, 2015

        5 1990 GT - propan27 Installation Time: Afternoon

        Nice sound

        Good pull after 1800 nice sound make sure you change springs to prevent coil bind use tfs2500100. Kit comes with all you need to do over heads can be done on eng but might as well pull heads fresh gaskets and inspect cylinders for wear

        Helpful (14)

      Questions & Answers (10 answers)

      5 Top Rated Questions

      Will this cam work with my 19lb injectors or is it recommended to use 24s?

      • TheComp Cams Stage 1 Xtreme Energy XE264HR Camshaft is designed for use in Mass Air equipped 1986-1995 5.0L V8 Mustangs with the factory computer and factory injectors.

      Helpful (2)

      Would this cam work well with my 88 gt or would I had to convert to maf setup

      • This Comp Cams XE264HR Camshaft is designed for use in Mass Air equipped 1986-1995 5.0L V8 Mustangs with the factory computer and injectors. You will need to convert your vehicle to MAF if it is already not equipped.

      Helpful (2)

      according to the tool at top of page, this camshaft will not fit my 1994 Cobra. Is this because it has 1.7 Roller Rocker Arms? If so can I install 1.6’s while doing my top end build and use this cam? Thanks in advance, Zach

      • The Comp Cams Stage 1 Xtreme Energy XE264HR Camshaft will be compatible with your 1994 Cobra, though due to production tolerances, piston to valve clearance should be checked when installing any cam. This cam is designed for 1.6 roller rockers and would work better with 1.6 rockers compared to 1.7 rockers.

      Helpful (2)

      Installed on a 90 5.0 would this be a good choice with oem heads T Moss ported oem lower 1 5/8 shorty headers 75mm pro-m mass air 65mm throttle body 65mm egr spacer 19lb injectors what hp and torque gain can be expected

      • The Comp Cams Stage 1 Xtreme Energy XE264HR Camshaft will work well with your setup. This cam is designed to work best in the 1500rpm-5500rpm range, which is right where your heads and intake will make the best power. This will also allow you to keep a more streetable setup, as opposed to more aggressive cams which may make street driving more difficult with your setup.

      Helpful (2)

      Is there a carb #? Is this ca emissions legal?

      • This Cam would be Carb legal and will come with the Carb Eo sticker yes!

      Helpful (2)
      Post Your Question
      5 More Questions
      Is a stall convertor recommended with this cam and are valve springs also recommended? What kind of power gains are to be expected? 1 answer
      what other parts a required for this cam? lifters, springs, etc... 1 answer
      Will this cam work with the stock pushrods “length wise” with the factory E7TE heads? I’ve already updated the valve springs... Will this cam work with factory length hardened pushrods for this cam? 0 answer
      Will this cam work well with my 1997 Ford Explorer gt40p 5.0 with torque monster headers, a/c, egr and clutch fan delete. 0 answer
      What are the specifications of this cam? I don't see them posted, looking for Lift, Duration, and Overlap,, Thanks. 1 answer

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Camshaft

      Tech Specs

      Comp Cam Data Sheet
      Part Number: 35-349-8 Grind Number: XE264HR
      Lifter Type: Hydraulic Roller Lifter Engine Type: FORD 5.0 (1982-2001)
      RPM Range: 1500 to 5500 Valve Timing : 0.006
      Lobe-Center Angle 114 Intake Center Line: 110

      Intake Exhaust
      Valve Lash: Hyd. Hyd.
      Duration: 264 270
      Duration @ .006" Lift: 212 218
      Valve Lift: 0.512 0.512
      Lobe Lift: 0.321 0.321

      Valve Timing @ 0.05" Lift: Open Close
      Intake: 22 BTDC 62 ABDC
      Exhaust: 73 BBDC 17 ATDC

      Will It Fit My Mustang

      • GT - 87, 88, 89, 90, 91, 92, 93, 94, 95
      • LX - 87, 88, 89, 90, 91, 92, 93
      • Other - 86
