Corvette ProTwin Dual Disc Carbon Clutch Kit with Billet Steel Flywheel; 26-Spline (97-13 Corvette C5 & C6, Excluding 427 & Z06)

Product Information

Features, Description, Q&A, Specs & Installation

Features & Specs

ProTwin LS Engine 168 Tooth 6 Bolt Steel Flywheel
Twin Discs Rated for 400-1100 Ft/Lbs Torque
26-Spline 1-1/8-Inch Input Shaft
Includes Flywheel, Pressure Plate, 2 Solid Hub Discs, Floater, ARP Fasteners, Pilot Bearing, and Alignment Tool
Fully Balanced Assembly for Precision
Smooth and Comfortable Pedal Operation with Lighter Pedal Feel Than Most Twin Discs
Quiet Operation Without Floater Rattle
Light Solid Hub Design Discs for Improved Shift Capability
Superior Steel-Backed Carbon-Based Friction Material
Fits 1997-2013 Corvette C5 & C6, Excluding 427 and Z06 Models

Clutch Usage

Performance/Track

Clutch Disc Material

Carbon

Clutch Flywheel Included

Yes

Clutch Flywheel Material

Steel

Description

High Performance Clutch. The ProTwin Dual Disc Carbon Clutch Kit with billet steel flywheel and 26-spline input shaft is engineered to handle torque loads ranging from 400 to 1100 ft/lbs, making it ideal for high-performance LS engine applications. This twin disc clutch kit provides reliable power transmission and enhances driving and shifting performance on both street and strip by focusing on smooth engagement and quiet operation to improve overall drivability.

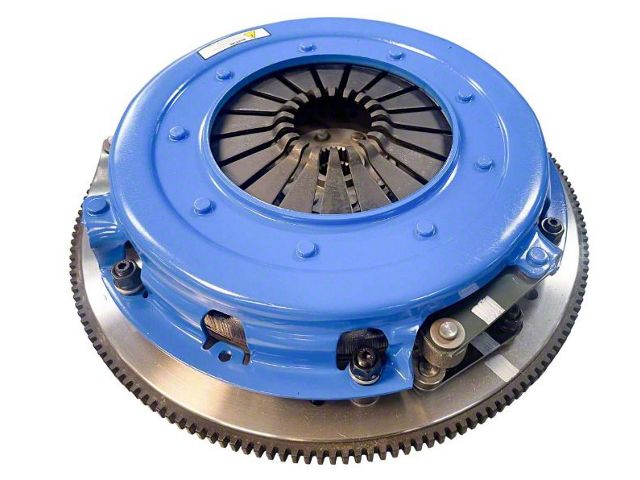

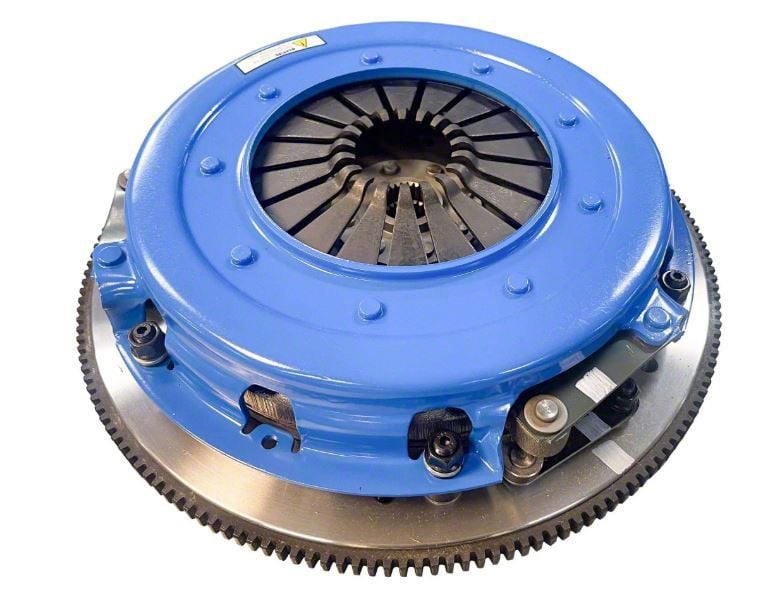

Construction and Appearance. Featuring a billet steel flywheel, two solid hub discs, and a floater, the kit uses superior steel-backed carbon-based friction material to provide durability and long-lasting wear. The complete assembly includes ARP fasteners, pilot bearing, and alignment tool, and is fully balanced for precision, combining strength with a refined appearance.

Installation. Installation typically requires standard clutch replacement procedures without the need for drilling or additional modifications. This kit is designed for direct bolt-on compatibility with 6-bolt LS engine flywheels and 26-spline input shaft transmissions.

Application. This clutch kit fits 1997-2013 Corvette C5 and C6 models, excluding the 427 and Z06 versions due to different drivetrain requirements specific to those variants.
