Edelbrock Camaro Pro-Flo 4 EFI Kit for Small Block Chevy with Vortec/E-Tec Heads 35780 (96-02 5.7L Camaro)

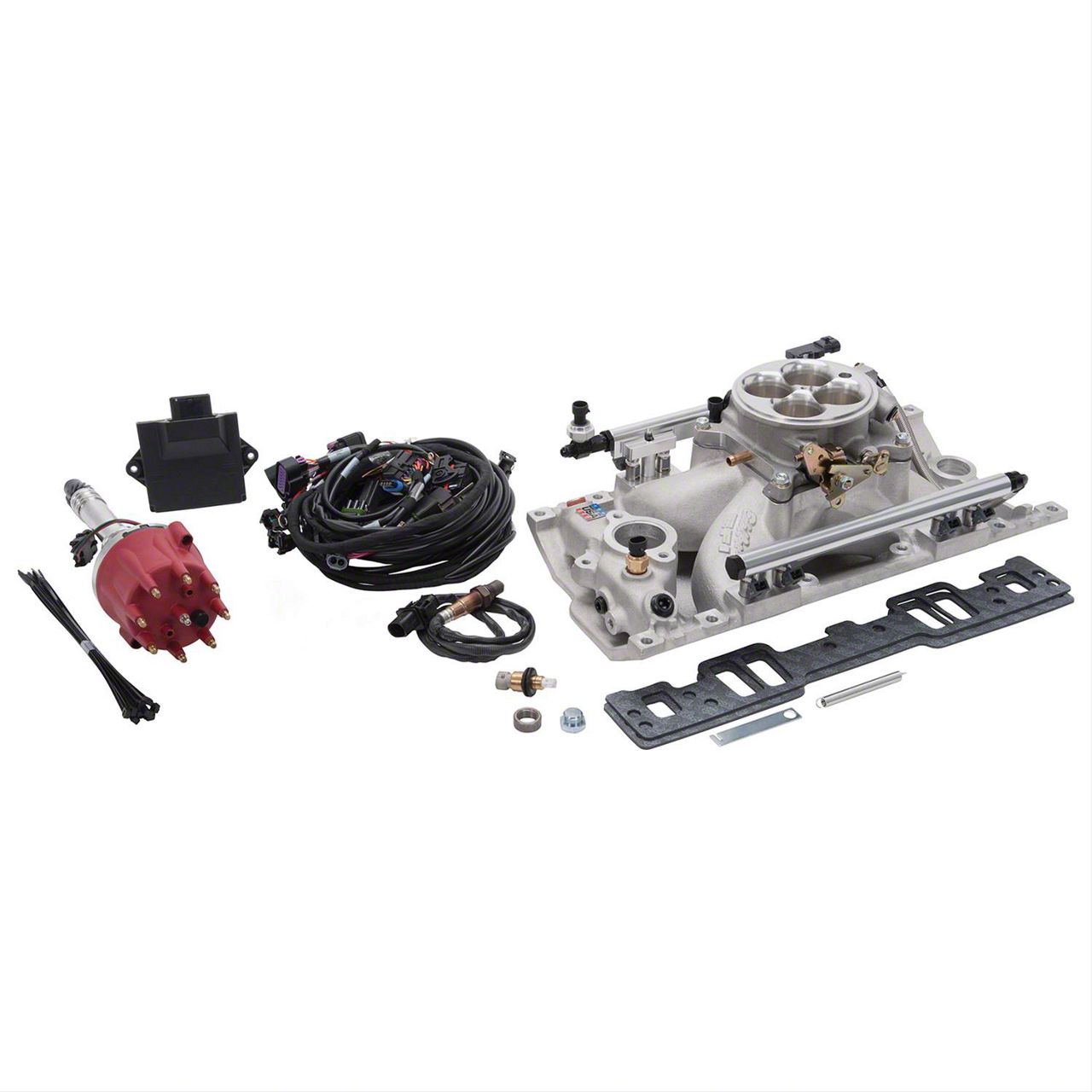

Name: Edelbrock Pro-Flo 4 EFI Kit for Small Block Chevy with Vortec/E-Tec Heads (96-02 5.7L Camaro)
Brand: Edelbrock
SKU: CC18808
Price: 2481.95 USD
Availability: InStock

Product Information

Features, Description, Q&A, Specs & Installation

Features

Pro-Flo 4 EFI System For Small-Block Chevy With Vortec/E-Tec Cylinder Heads
Fully Sequential Multi-Port Injection System
Fuel Injector Positioned In Each Runner Of The Intake Manifold
High Performance Victor-Style Single Plane Intake Manifold
Preassembled With High Flow Injectors, Fuel Rails, And 4150-Flange Throttle Body
Includes All Supporting Sensors, Wire Harnesses, And ECU
Larger Cross-Sectional Area In Plenum And Larger Runners For High-Horsepower Applications
Manifold Is 0.75 Inch Taller Than Standard LS3 Version
Uses 29 Lb/Hr Injectors Rated For 450 Horsepower At 58 PSI Fuel Pressure
Calibration With Setup Wizard Through E-Tuner Application
E-Tuner App Provides Self-Learning And Advanced Tuning Options
E-Tuner 4 App Is Free And Available For Android And IOS Devices
Kit Includes Gasket, Wiring Harness, Idle Air Control Motor, And Distributor Cap
Fuel Pressure Port Is 1/8-27 NPT
Bore Diameter Is 1.75 Inches
Throttle Body Type Is 4 Barrel
Installation Requires High-Pressure EFI-Compatible Fuel Delivery System (Sold Separately)
Manifold Height Is 4.63 Inches
Finish Is Satin
Fits 96-02 5.7L Camaro

Description

Advanced Fuel Injection. The Edelbrock Pro-Flo 4 EFI Kit for Small Block Chevy with Vortec/E-Tec Heads is a sophisticated fuel injection system engineered to deliver precise fuel atomization and even distribution across all cylinders. Designed for optimal performance, this system enhances efficiency and power output in high-horsepower Chevy Small-Block engines equipped with Vortec or E-Tec cylinder heads.

Construction and Appearance. The system features a high-performance Victor-style single-plane intake manifold constructed with an increased plenum cross-sectional area and larger runners for enhanced airflow. The manifold is finished in satin and stands 0.75 inches taller than standard options to promote smoother airflow into rectangular-port heads. The kit includes high-flow 29 lb/hr injectors, fuel rails, and a 4150-flange throttle body all preassembled for ease of use.

Installation. Installation is straightforward for users familiar with EFI systems. A high-pressure EFI-compatible fuel delivery system is necessary and sold separately to ensure proper functionality.

Warranty. This product comes with a 24-month warranty providing coverage against defects.

Application. Specifically designed to fit 96-02 5.7L Camaro models, ensuring compatibility with the Vortec/E-Tec cylinder heads utilized in these engines.

Edelbrock 35780
