(approx) 2 Hours
Light to Moderate mechanical skill required.
- Customer Submitted:
- How to install a Ford Racing Aluminum Driveshaft - 28 Spline on your Mustang
Hey, everybody, I'm Justin with AmericanMuscle.com, here with my quick review of the 28 Spline Ford Racing One-Piece Aluminum Driveshaft, fitting all '79 and '95 5.0 L Mustangs and all '94 to '04 V6 Mustangs. The Ford Racing Aluminum Driveshaft would be a solid upgrade to any Fox Body or SN95 owner out there who is looking for a strong, lightweight, and affordable option from a trusted name like Ford Racing. This option might be for the owners out there who is suffering from some driveline vibrations and need an affordable fix or maybe for some owners out there who plan on subjecting his or her ride to some abuse at the drag strip, where the factory steel driveshaft can oftentimes be a weak link when paired with a sticky tire.Again, guys, this is Ford Racing's 28 Spline option. Again, it will fit the early 5.0 L V8s and all SN95 V6 Mustangs equipped with a T5, C4, or Tremec transmission. Essentially, guys, this is going to be a factory replacement for you here. Now, I do want to point out also that this driveshaft is compatible with both seven and a half and 8.8-inch rear ends. Now, one of the big benefits when making the switch to a lightweight aluminum driveshaft here, like the Ford Racing option, is the overall weight savings. Now, the Ford Racing option is going to be constructed from a high-quality T6 6061 aluminum, and besides being much stronger than that factory driveshaft, is also going to be far lighter. In fact, guys, the Ford Racing option is going to weigh in around the 13 or 14-pound range, as opposed to the heavy steel option, which is going to weigh in around 19 or 20 pounds. So this is a 6 to 7-pound weight savings or over 25%, which might not seem like a big deal to some of you guys, but you have to keep in mind this is rotational mass, big difference than just shedding dead weight from the car. Since the engine doesn't have to work as hard to spin the lighter driveshaft, it's going to be a little bit more efficient. So, overall, the car should rev a little quicker, should pull through the gears a little bit faster as well, and overall, you might even notice an improvement in your sixty-foot times, maybe even a tenth or two off of your quarter-mile time. So we do know that the Ford Racing option will be lighter than your factory driveshaft, and we know there's going to be some benefits along with that, but that's only one part of the equation here. This thing is also going to be a little bit stronger than that factory steel driveshaft, thanks, again, to that T6 6061 aluminum construction and the three and a half inch diameter seamless, too. Along with that T6 construction, the Ford Racing option is also packing some pretty burly 1330 U-joints here, which can sometimes be the weak spot with the factory driveshaft, definitely shouldn't be a concern here with the Ford racing option. Another big benefit when using the Ford Racing aluminum option here is the reduction in driveline vibrations that I see a lot of Fox Body or SN95 owners complain about here on the site. Now, with that factory steel driveshaft, sometimes it can become unbalanced or even slightly twisted, which does cause some driveline vibrations that do increase with speed. Now, by making the switch to this Ford Racing option, most, if not all, owners report back with great results and no more vibrations. Another benefit with going with an aluminum driveshaft from Ford Racing is the reduction in driveline vibrations that I see a lot of Fox owners or SN95 owners complain about here on the site. Now, what happens is a lot of times that factory steel driveshaft can be slightly unbalanced or even slightly twisted, which does cause some pretty nasty vibrations that do increase with speed. Now, when using this driveshaft or making the switch to this driveshaft, most, if not all, owners I see report back with great results and no more vibrations.But, perhaps, one of the best things about this particular driveshaft is the price. To get a brand new, well-built, one-piece aluminum driveshaft from a name like Ford Racing for around $300 is pretty solid overall and will be your most affordable option here on the site. Installing a new driveshaft for your Fox Body or SN95 is a pretty straightforward task overall, but, of course, all of your work is done underneath the car, so just make sure you have your jack and jack stands ready to go, race ramps or a lift if you have access to one. You're really only going to need some basic hand tools here, guys, including a 12 mm wrench, torque wrench is always a good idea, of course, and finally some blue Loctite for those driveshaft bolts. Now, to remove that factory driveshaft, you're really only going to remove the 4 12 mm bolts then get the new guy in place here. So, again, very straightforward stuff, pretty easy task overall. It should only take you about a couple of hours in the shop or garage, and so for that reason alone, we'll call this one a one out of three wrenches on my overall scale of difficulty. Just a quick heads up here on fitment, guys, this driveshaft will also work with all '96 to '04 automatic V6 Mustangs as long as the factory yoke is removed and reused with the new Ford Racing driveshaft. The one-piece Ford Racing Aluminum Driveshaft is going to be a solid upgrade for your street or strip Mustang, and here's why. The strength and weight savings benefits are a huge improvement over your factory steel driveshaft, and the price is going to be very hard to beat. So be sure to check out a driveshaft option for your ride right here at AmericanMuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

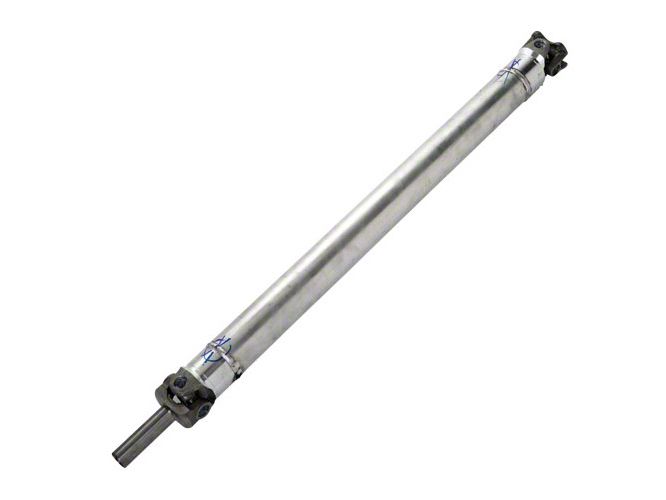

Less Weight, More Power. Ford Racing's Light Weight Aluminum Driveshaft for 1979 through 1995 5.0L and 1994 through 2004 V6 Mustang's is designed to reduce stress on your car by reducing the rotating mass of your drive train. Less weight means better power transfer allowing you to put more horse power to the ground.
Superior Construction. Constructed of light-weight, high-strength seamless 3.5" diameter aluminum tubing. Ford Racing's Light Weight Aluminum Driveshaft is built to last and is the perfect replacement for your street or strip car.
Specifications. This Ford Racing drive shaft is made from lightweight aluminum and features a 28 spline that is compatibility with 7.5" or 8.8" Differentials.
Application. The Ford Racing drive shaft fits 1979-1995 5.0L Mustang's with T-5/SROD/C-4/A0D Transmission, 1979-1993 5.0L's with Tremec Transmissions, 1994-2004 3.8/3.9L V6 Mustangs with a T-5 Transmission.
Technical Note. This driveshaft will also fit 1996-2004 Automatic Transmission V6 Mustangs if the factory yoke is removed and reused. The yoke is located on the end of the driveshaft attaching it to the transmission with two spring clips and a pressure fitting. Special tools maybe required for removal.
Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
January 21, 2020
Pony propulsion shaft a.k.a flux capacitor
I am not good at changing u joints. I got new u joints and a lighter drive shaft. Win win.Helpful (0)
November 19, 2019
Exelente producto ajusto perfecto en Mustang 3.8
Material aluminio muy liviano,solo cambié el yugo como recomiendan y no hubo ninguna complicaciónHelpful (0)
October 12, 2019
i like it
Noticed a difference immediately and was very easy to install... just a quick swapHelpful (0)
October 07, 2019
Now I can have a conversation in the car at 60-80 MPH and it has smoothed out the car with no more Noise/light vibration that i was feeling before. Made this 25 year old stang ride like new and is a must have after everything else on the caris checked/upgraded/or replaced. Installed it at the same time as Ford Performance 3.55 Gear set.Helpful (0)
September 20, 2019
79-95 5.0L FRPP Aluminum Driveshaft
I was having trouble with vibrations in my 89 mustang coupe 5.0 T5. I had rear end done recently with spool and 4.10 gears with 35 splines axles and I had a loud humming noise at about 65 mph and up. Changed the driveshaft out with this one and now it doesnt even make any noise now. So happy with this purchase wish I bought it along time ago! You wont regret it.Helpful (0)
May 05, 2019
Driveshaft looks and feel really good once installedHelpful (0)
March 17, 2019
Great product. Fixed my vibration issues and it saves weightHelpful (0)
January 30, 2019
Great product at a great price and really fast shipping.Helpful (2)
January 19, 2019
My car had that nasty vibration after installing 3.73's, I changed everything from trans mount to opening the rear. Finally decided to pull the trigger on this ds and Boom she's as smooth as ice. After getting this part I'm starting to rethink Ford performance parts. I may end up getting those x2 heads.Helpful (3)
January 11, 2019
I received my driveshaft, the workmanship seems to be excellent, I haven't put in in the car as the car is in storage. I am excited to put in and see if takes the slight vibration I have in the drive-line out. I have also been told that it will increase my ability to reach a certain RPM quicker.Helpful (3)
Will this be a direct bolt on for a 2003 3.8l v6 with an original automatic transmission?
Hello! The Ford Performance Aluminum Driveshaft - 28 Spline will fit 1996-2004 Automatic Transmission V6 Mustangs if the factory yoke is removed and reused. The yoke is located on the end of the driveshaft attaching it to the transmission with two spring clips and a pressure fitting. Special tools maybe required for removal.
will this fit a 1994 cobra help
Yes, this aluminum driveshaft will fit your 1994 Cobra without any problems!
how much does this weigh compared to the stock driveshafts in fox bodys?
I believe the weight of the Ford Racing Aluminum Driveshaft - 28 Spline (79-95 5.0L; 94-04 V6) comes in roughly around 18 pounds whereas the factory set up came in at a whopping 46lbs on a calibated scale. So the difference being more than double the weight of the aluminum driveshaft. Hope that helps.
At what speed (in RPM) is this driveshaft balanced?
What kind of modifications if any will be need for an install in '00 by manual?
Unfortunately this will not fit the 2000 Mustang GT Manual. For a 2000 GT, you would need this one: https://www.americanmuscle.com/96gtand96coa.html.
The Ford Racing drive shaft fits 1979-1995 5.0L Mustang's with T-5/SROD/C-4/A0D Transmission, 1979-1993 5.0L's with Tremec Transmissions and 1994-2004 3.8/3.9L V6 Mustangs with a T-5 Transmission. Unfortunately, this would not have fitment for a 2.3L,
Ford Performance does not provide horsepower ratings for their driveshafts.
Yes, this driveshaft will fit automatic 95 GT Mustangs.
The Ford Performance Aluminum Driveshaft may be too long for your setup using the 94+ Bell housing, as this will push the transmission back some.
The stock steel driveshaft weighs around 40lbs, whereas this Ford Performance Driveshaft weighs approximately 16 lbs.
The Ford Performance Aluminum Driveshaft will not require any changes for use in the 1994 and 1995 V6 Automatic Mustangs.
The Ford Performance Aluminum Driveshaft - 28 Spline is compatible with 7.5" or 8.8" differentials only.
This Ford Performance Aluminum Driveshaft would not fit a 2004 Mustang GT equipped with an automatic transmission. Due to your automatic transmission, you would need to purchase the Ford Performance Aluminum Driveshaft, or SR Performance Aluminum Driveshaft for 1996-2004 GT, and swap the yoke from your existing driveshaft onto the new driveshaft for proper fitment. Both driveshafts are linked below: https://www.americanmuscle.com/aluminum-driveshaft-9604gt.html https://www.americanmuscle.com/96gtand96coa.html
The Ford Performance Aluminum Driveshaft - 28 Spline will be able to handle up to 600 HP.
No this will not be a direct fit for that set up. Feel free to call or chat in with a mustang expert and we can help get you the correct parts to complete your swap.
(approx) 2 Hours
Light to Moderate mechanical skill required.
What's in the BoxHardware included:
Fits 1979-1995 5.0L V8's with T-5/SROD/C-4/A0D Transmission and 1979-1993 with Tremec Transmissions. Also 1994-2004 3.8/3.9L V6 Mustangs with a T-5 Transmission
