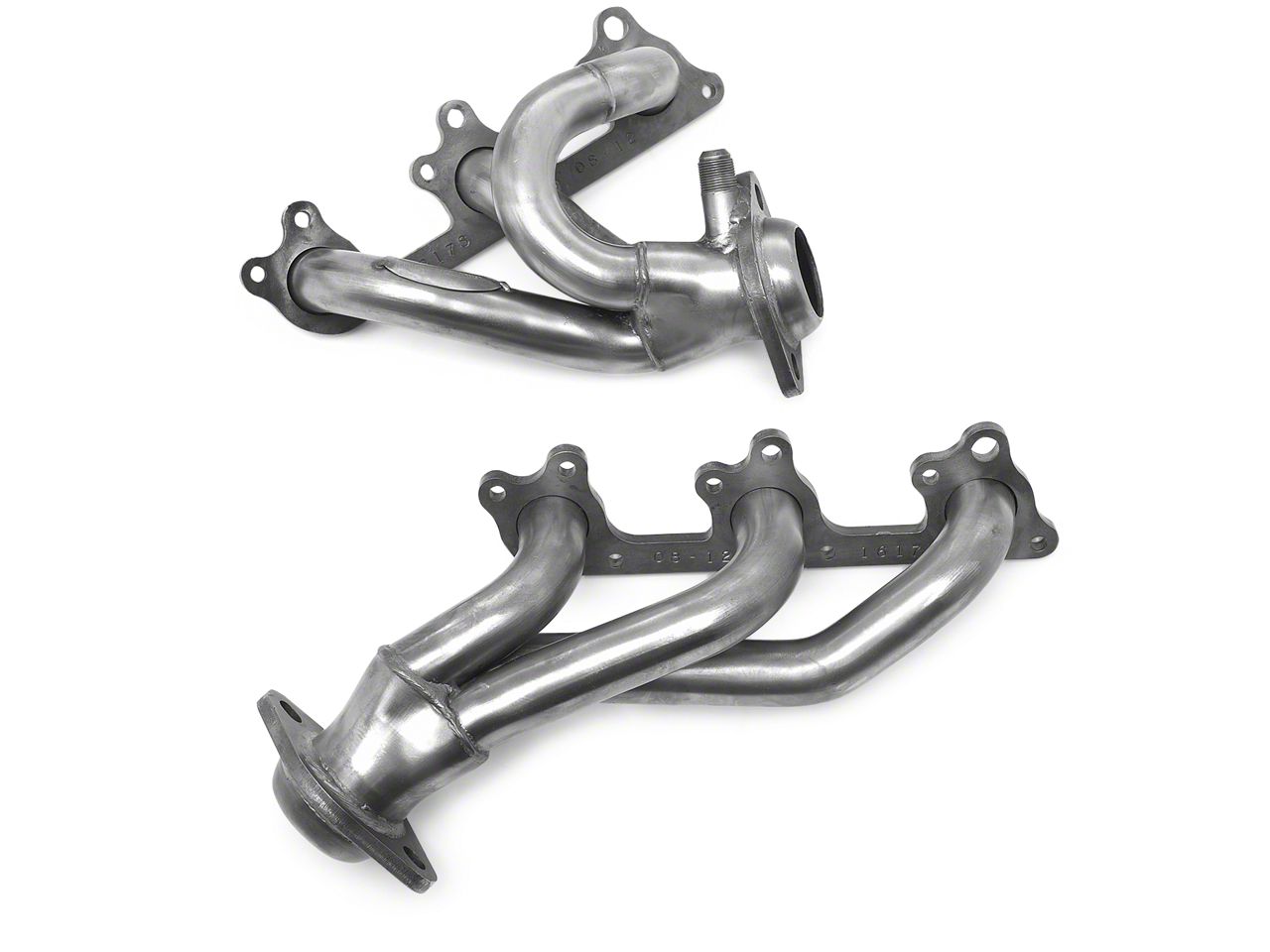

JBA 1-1/2 in. Cat4ward Shorty Headers (05-10 V6)

AmericanMuscle no longer carries the JBA 1-1/2 in. Cat4ward Shorty Headers (05-10 V6). Please check out 2005-2009 Mustang Long Tube Headers for an updated selection.
Market Price $483.99 You Save 30% ($143.02)
Our Price


FREE Shipping
  • Item 23107
  • MPN# 1617S

Choose options to add to cart

AmericanMuscle no longer carries the JBA 1-1/2 in. Cat4ward Shorty Headers (05-10 V6). Please check out 2005-2009 Mustang Long Tube Headers for an updated selection.

Features & Details

  • Increases Horsepower and Torque.
  • Free Flowing Mandrel-Bent Stainless Steel.
  • Natural Finish.
  • Features JBA Sealing Dome® Collector.
  • CARB EO Number: D-216-28.
  • Fits 2005-2010 V6 Mustangs.
Increase horsepower and torque. Add extra horsepower and torque that you can feel throughout the entire RPM range with a set of JBA Natural Shorty headers. These JBA Shorty headers improve your mustangs exhaust flow helping to increase your pony's horsepower, torque, and throttle response.

Quality Construction. These Mustang JBA Shorty headers are made to last using 3/8" thick laser-cut flanges, free flowing mandrel-bent 1-1/2" stainless steel tubing, and JBA's Sealing Dome® collectors.

Natural Finish. These JBA Headers feature a natural stainless steel finish, which provides an aggressive appearance to your engine bay. This is not a heat-resistant coating, AmericanMuscle recommends the use of Exhaust Heat Wrap for high performance applications.

Application. Designed to fit the new 2005-2010 S197 V6 Mustangs. These JBA shorty headers include high-quality mounting hardware, gaskets, and complete instructions, so that they will bolt right up to your Mustangs stock Mid Pipe.

Fitment: 2005 2006 2007 2008 2009 2010 Details

What's in the Box
  • (1) Driver side header
  • (1) Passenger side header
  • (1) gasket kit
  • Installation hardware
Installation Info
Tech Specs
Header Specifications
Header Type: Short Tube Finish : Natural Stainless steel
Type Mid Pipe Required: Standard Fitment: 2005-2010 V6
Will it fit my Mustang?
  • V6 - 05, 06, 07, 08, 09, 10

Most Helpful Reviews


Sounds like a V8, the rumble, the power, its a must have after an air intake

Helpful (1)

JBA Shorty Headers (V6)

Sound, with Dual Magnaflow CatBack, was noticeable throatier (even got a second opinion on this). Vibrations at idle felt smoother, and throttle response felt quicker. Installation was easy, and took ...

Read More
Helpful (19)

Overall Rating 4.7 out of 5 stars
Read All 12 Reviews

Customer Photos (6) Submit Your Photo

View All 6 Photos

You Might Also Like

7 Questions / 6 Answers

Ask a Question

California smog legal?


  • Hello! Yes the JBA Cat4ward Shorty Headers are CARB Legal. CARB EO Number: D-216-28

    Doug P

Helpful (0)

Are these California smog legal


  • Hello! The JBA Cat4ward Shorty Headers are CARB legal. CARB EO Number: D-216-28 Thanks!

    Doug P

Helpful (0)

Do these come with new header bolts or are you supposed to use the OEM studs holding the manifold?


  • Do not reuse your old bolts. Probably not. Ask the vender you are purchasing. But I would recommend you purchase a nice stainless steel set of bolts


Helpful (0)

JBA are 1 1/2 primaries, everyone else seems to be at 1 5/8. Any advantage or disadvantage either way? Anything I should be concered with? Thanks.


  • The JBA Cat4ward Shorty Headers (05-10 V6) are great for a naturally aspirated application. Getting the larger primaries (i.e. the 1 5/8) would be preferred for a boosted application to help open up that airflow, however getting that with a naturally aspirated application can be overkill and you can actually lose out on horsepower.


Helpful (0)

Will these work with Pypes cut and clamp X pipe? I have a 2005 v6 and have these headers installed. I want to change my exhaust around and put in a Pypes Muffler Delete, and Cut and Clamp X- Pipe. Would the X pipe fit with these headers?


  • The JBA Cat4ward Shorty Headers (05-10 V6) will not affect the fitment on the cut and clamp X-pipe. They mount to your motor and there is manifold piping that will down from the headers to the X-pipe.


Helpful (0)

Will these work with the X pipe on the Ford Racing Dual Exhaust?


  • Yes these should hook up fine. They are meant to replace the factory manifolds and pick up in the same place.


Helpful (0)

More Products You Might Like

Customer Reviews (12) Write a Review

Overall Rating 4.7

out of 5 stars

Installation Time:Full Day

Installation Cost:$100-$250

  • Performance Gain 4.333333 4.3
  • Fit 4.166667 4.2

  • 5/5

    Installation Time: Shop Install

    Installation Cost: $100-$250

    November 14, 2016


    Sounds like a V8, the rumble, the power, its a must have after an air intake


    Year: 2007 Submodel: V6

    Helpful (1)

  • 4/5

    January 19, 2010

    JBA Shorty Headers (V6)

    Sound, with Dual Magnaflow CatBack, was noticeable throatier (even got a second opinion on this). Vibrations at idle felt smoother, and throttle response felt quicker. Installation was easy, and took about a weekend due to cold weather slowing down the process (more slowed down the installer). Several notes though!! 1.) Reinstallation of the EGR was rather difficult, so use anti-seize, makes a the job much easier. Also 1 1/16 crowfoot wrench is the only way to access the EGR by the exhaust manifold. 2.) The 15mm bolt on the Pax side required an overnight soak in WD40 to be removed. 3.) Pax side removal of the catalytic converter from the exhaust manifold requires a rather lengthy set up on running extenders over the catalytic converter to remove the upper bolt. Recommend when installing new headers to install the supplied bolt and nut so that it can be tighten from above, instead of below. 4.) When re-installing the oil dipstick, the original bolt is too short when installed with new headers. The hardware kit comes with a bolt that works as a replacement, but its original for the PAX side of the headers. Basically you have two holes which require two of the same bolts, but only one is included. Good news is that this bolt can be obtained easily at a local hardware store. Installation Instructions that are provided are well written and easy to follow. Note: Remember to clean, wash out, and dry the new headers as metal shavings are still present inside of them.


    Helpful (19)

  • 4/5

    June 23, 2010


    the headers cost me $200 to install professionally. i have a magnaflow catback plus x-pipe installed before this and the headers make it sound a lot deeper. and throttle response very noticable. Good product

    Ricky Parmar

    Helpful (9)

  • 5/5

    Installation Time: Afternoon

    December 07, 2011

    Amazing Headers

    I bought my boyfriend the headers as a gift. During the install he had a huge smile on his face because he was excited to get them on. Once on, he was like a kid in a candy store, he has so much more fun with his mustang now. He is so happy with the headers and we definitely can't wait to install a set in my mustang.


    Year: 2005 Submodel: V6 North Bergen, NJ

    Helpful (5)

  • 4/5

    June 13, 2010

    JBA Shorty Headers

    Not a bad mod. The sound is nice and there is a moderate gain in performance. Considering I had no real experience with engine mods before this, it came out rather well. Just to note: Removing the battery and battery harness on the passenger side made the installation easier.


    Helpful (5)

  • 5/5

    Installation Time: Afternoon

    April 02, 2012

    It open the car right up and is a worthy upgrade

    The headers was one of the last mods I did to my Mustang. I shouldn't have waited as it should have now been one of the first. The performance gain was truly felt and noticed as much as the tune and CAI I got from Bama and AM. The quality build of these headers is nice and the finish stays intact and is very heat resistant and looks good under the hood. I am suprised the gain I got from having these headers installed and I would recommend anyone to do this as one of your first modifications to your car. The sound is not overbearing and is pleasant to the hear and gives the exhaust note a beautiful pur. And at WOT it makes your car sound like a deadly V8 coming at you. JBA is CARB certified and the shop that installed it said I would have no problem passing the CARB smog check which is important in CA. These are the only headers CARB certified for the 4.0 and fortunately they are top notch high quality and worth the higher price tag. Pay the extra money for this set as you do get what you pay for!


    Year: 2007 Submodel: V6 Redwood City, CA

    Helpful (3)

  • 5/5

    Installation Time: Full Day

    May 29, 2013

    Great Product, really got the boost that was needed

    The JBA shorties really gave my V6 some power. I have it matched up with a true duel exhaust. It sounds just like a V8, deep and throaty. I truly recommend this product to anyone looking to beef up their V6.


    Year: 2008 Submodel: V6 Emmaus, PA

    Helpful (1)

  • 5/5

    May 27, 2010

    JBA Shorty Headers

    This is one of the best upgrade anyone can do to their V6 stangs! You definitely feel the increase in power, especially in the low-end torque. This is a great buy and a must!


    Helpful (2)

  • 5/5

    Installation Time: Weekend

    May 13, 2014

    Great product just took a while to install

    Took two full days to install. Not so straight install. Getting studs out were not fun.


    Year: 2008 Submodel: V6

    Helpful (0)

  • 5/5

    February 10, 2010

    JBA shorty headers

    Awesome item, makes my car sound even louder! performance is better now!!!!!


    Helpful (0)

  • 5/5

    July 18, 2009

    Pypes Headers

    These headers Are amazing. Great sound. I mix it with the pypes axel back. Made my exuast sound more beefy less high pitch. Allot more torque in lower rpms. Can tell the diffrence in higher rpm. Great buy


    Helpful (0)

  • 4/5

    April 17, 2017

    Nice headers

    They were ok headers was not what I really expected but they seemed to workout fine you can feel the difference when you install them screws didn't really fit but we made it work


    Year: 2008 Submodel: V6

    Helpful (0)
