HD 9-Inch Ford Axle Housing with Mounts and Housing Ends (79-04 Mustang)Find parts that fit my vehicle

Description
Strange HD Ford 9″ bolt-in housing
Custom widths available at no additional charge

Information Required
Type of housing ends
Housing width

Pinion Offset – .625″ To The Passenger Side
Same as OEM 8.8 housing

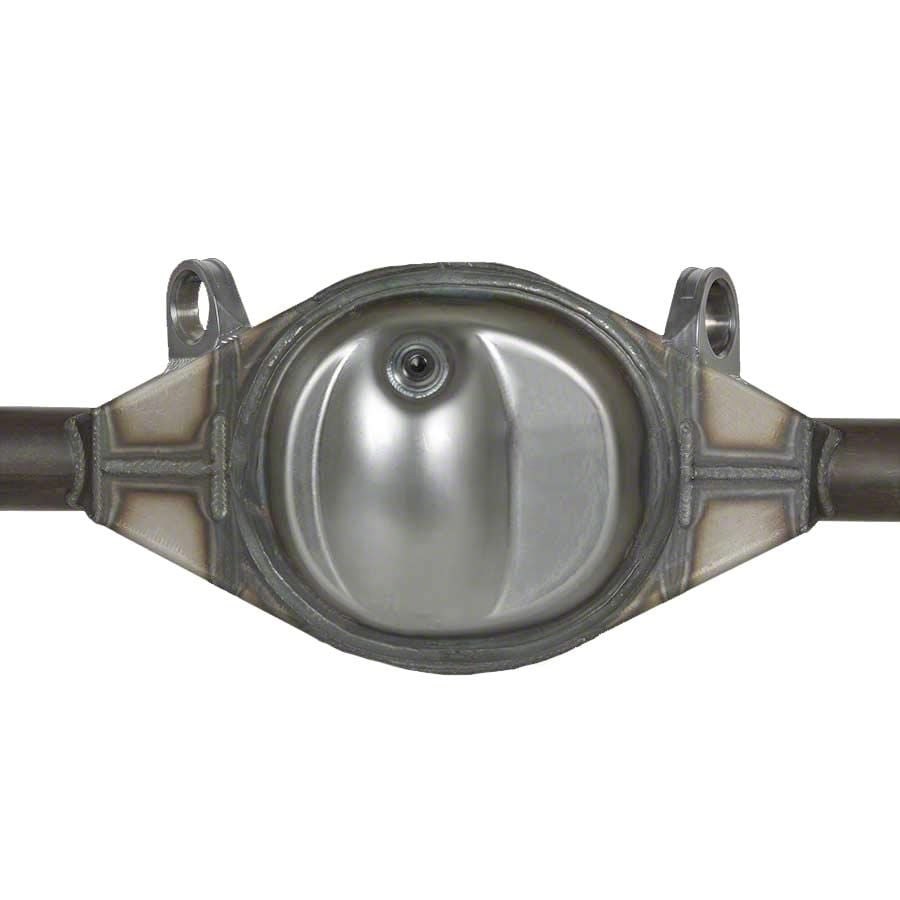

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application
Fill & Drain plugs – H1116 / H1116
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

1979-2004 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts with multiple hole locations

Adjustable Shock Mounts
• 6 positions with .375″ increments
• 1.875″ of adjustment
• Allows ride height adjustments without affecting stroke

Choice of Housing Ends – H1138 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange ends are available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Options
Powder coat housing… H1199P-BLK
Install back brace…………. H1128N

Related Components
Gasket
Lube Locker……………….. H1111S

Axle Packages
Alloy 35…………………. P3502 / P350258
Pro Race 35…………… P1007 / P100758
Pro Race 40…………… P1016 / P1014

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
