HD 9-Inch Ford Axle Housing with Upper and Lower Mounts (79-04 Mustang)Find parts that fit my vehicle

Description

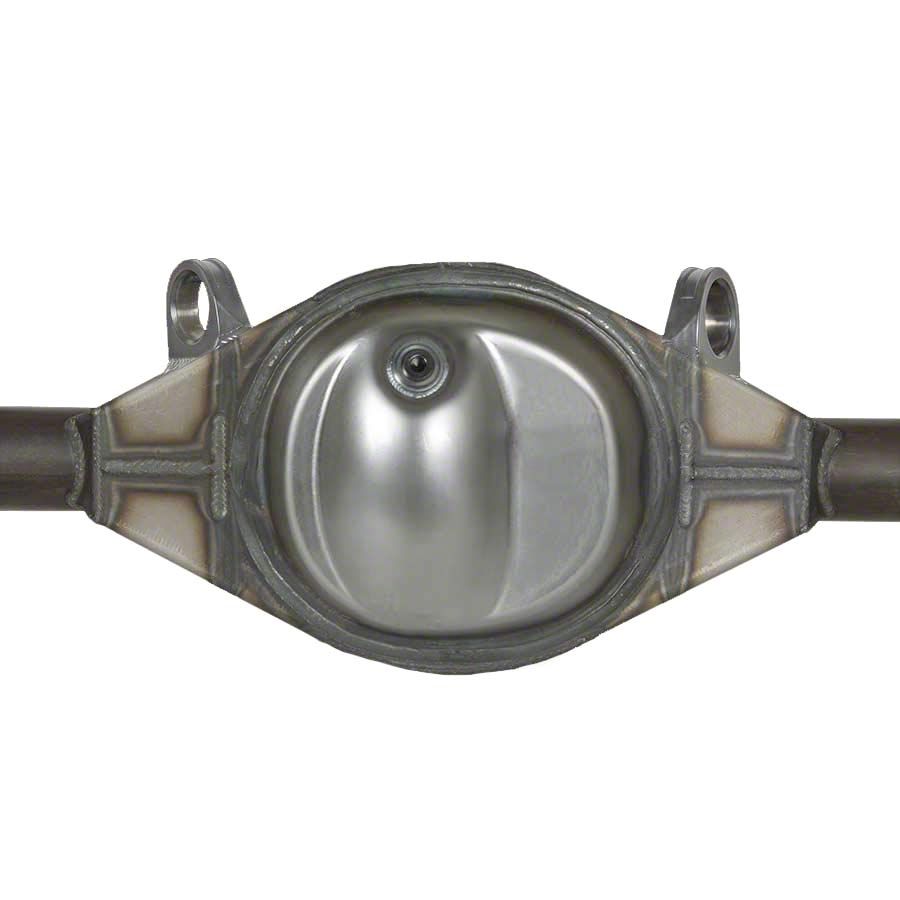

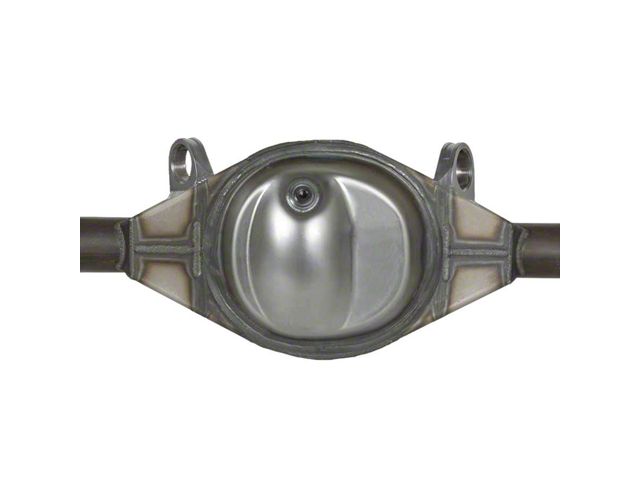

Strange HD Ford 9″ housing
With upper & lower control arm mounts – No housing ends

Custom widths available at no additional charge

Information Required
Tube to tube width
Pinion Offset – .625″ To The Passenger Side
Same as OEM 8.8 housing

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application

Fill & Drain plugs – H1116 / H1116
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

1979-2004 Mustang Mounts
• Strange HD upper control arm mounts
• Lower control arm mounts with multiple bolt hole locations

Adjustable Shock Mounts
• 6 positions with .375″ increments
• 1.875″ of adjustment
• Allows ride height adjustments without affecting stroke

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Related Components
Floater Kit
Pro Touring………… F5010

Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Mustang 8.8……….. H1138

Gasket
Lube Locker………. H1111S

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
