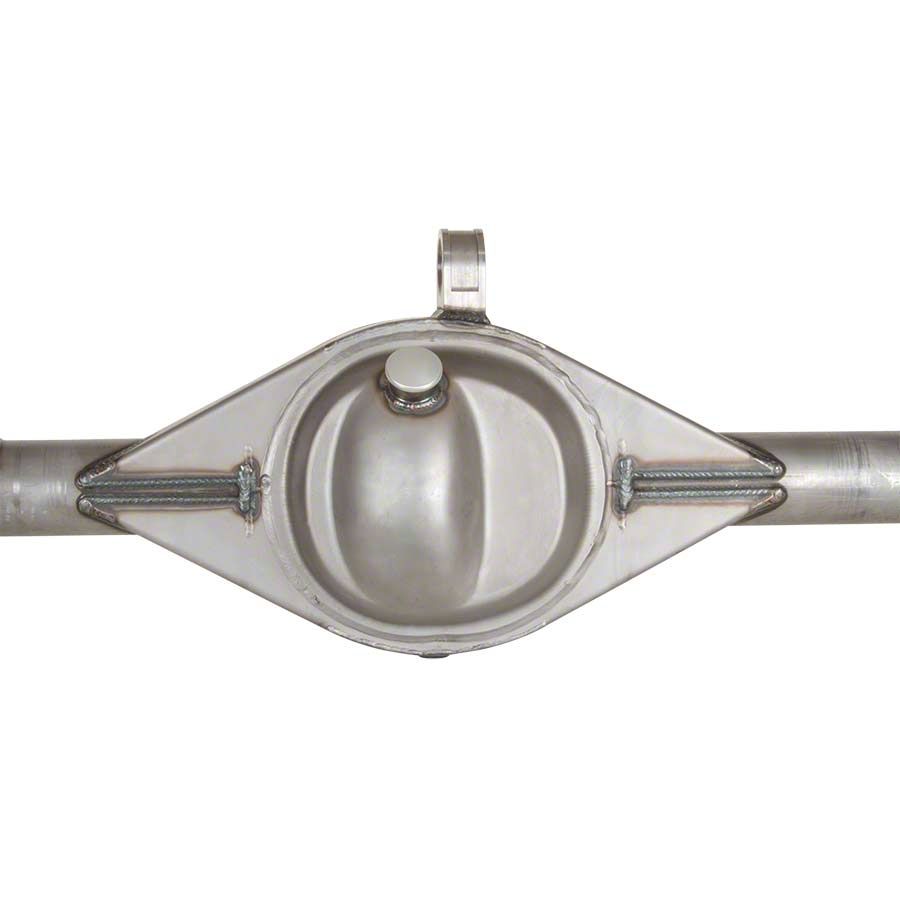

HD 9-Inch Ford Axle Housing with Upper Mount (05-14 Mustang)Find parts that fit my vehicle

Description
Strange HD Ford 9″ housing
Tubed with upper control arm mount
No lower control arm mounts or housing ends

Note
Upper mount is moved forward .400″ and upward .400″
Aftermarket adjustable upper control arm must be used

Pinion offset is .125″ to passenger side

Information Required
Tube to tube width

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets

* Modified for this application

Fill & Drain plugs – H1116 / H1117D
• Facilitate fluid changes
• Allows for inspection of ring gear

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Related Components
Housing Ends
Late Big Ford……… H1137
Big Ford……………… H1135
Mustang 8.8………. H1138

Gasket
Lube Locker………. H1111S

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
