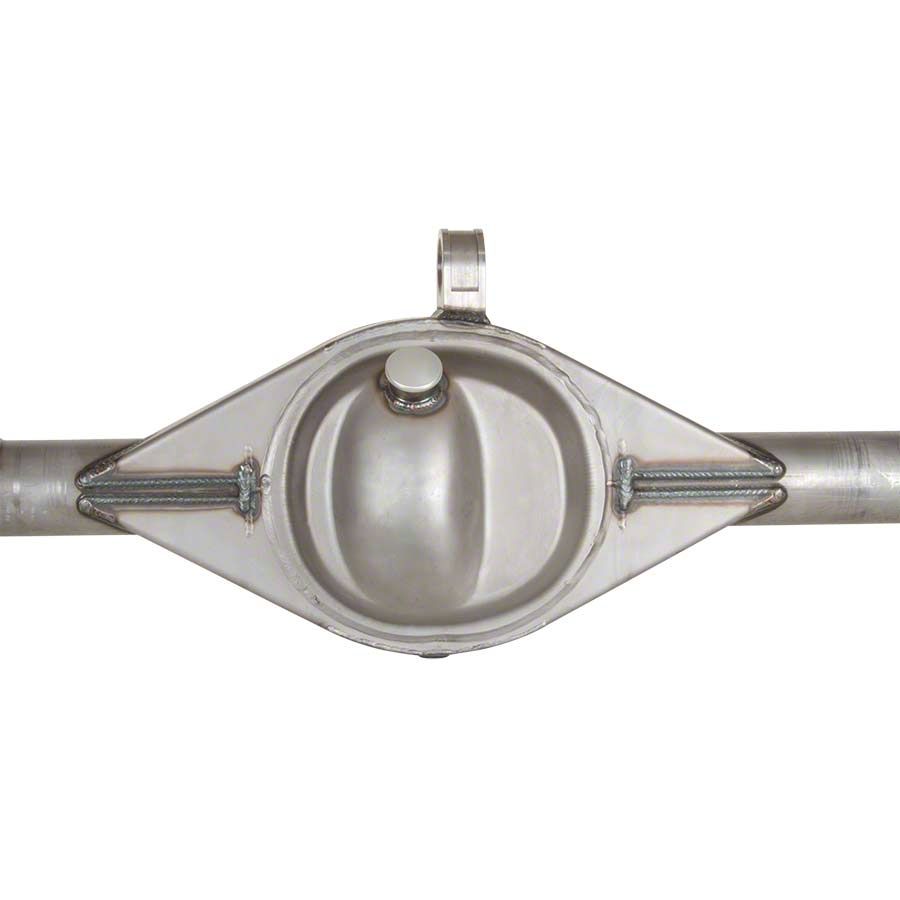

HD 9-Inch Ford Axle Housing with Upper Mount and Housing Ends (05-14 Mustang)Find parts that fit my vehicle

Item 465721
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$1,109.99 each

Military, Medical & First Responders Earn $55.50 in AM Cash Rewards. Get Verified

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • HD 9‑Inch Ford Axle Housing
      • Features Upper Mount and Housing Ends
      • Upper Mount Moved Forward at .400-Inch and Upward .400-Inch
      • Aftermarket Adjustable Upper Control Arm Required
      • Pinion Offset at .125-Inch to Passenger Side
      • Center Housing Featuring .141-Inch Mild Steel and .282-Inch Thick Face Plate
      • Housing Tubing Made of DOM 1026 Steel
      • With 3.250-Inch OD × .250-Inch Wall Thickness
      • Professionally Jig‑Welded
      • Tubes Internally and Externally Welded
      • Internal Gussets and Slots for Weld Contact
      • Extended Cover for 9-Inch and 9 1/2-Inch Gear Sets
      • Fill and Drain Plugs (H1116 / H1117D) for Fluid Changes and Ring Gear Inspection
      • Vent (H1112B) to Prevent Internal Pressure Build‑Up
      • Straightforward Bolt-On Installation
      • Fits 2005-2014 Ford Mustang Models

      Description

      Heavy‑Duty Mustang Axle Housing. The HD 9‑Inch Ford Axle Housing with Upper Mount and Housing Ends is engineered for 2005–2014 Ford Mustang applications. It provides a robust foundation for high‑performance rear‑end builds, with specific adjustments for the upper control arm location to enhance fit and geometry.

      Construction and Appearance. Constructed from .141‑inch mild steel with a .282-inch-thick face plate, the center housing features internal gussets and welding slots, plus an extended cover for gear clearance. The axle tubes are made of DOM 1026 steel (3.250-Inch OD × .250-Inch wall), and the housing ends are forged chrome‑moly compatible with 3.150-Inch bearings. All welds are professionally jig‑aligned for maximum structural integrity.

      Installation. Installation is moderately challenging: it requires aftermarket adjustable upper control arms (due to the .400-inch forward/upward mount shift) and may necessitate welding. No lower control arm mounts are included, so additional fabrication or parts may be required.

      Application. This HD 9‑Inch Ford Axle Housing with Upper Mount and Housing Ends fits 2005–2014 Ford Mustang models.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) HD 9‑Inch Ford Axle Housing Assembly

      Questions & Answers

      No questions about this product yet. Ask the First Question
