HD 9-Inch Ford Axle Housing with Upper Mounts and Ends Lower Control Arm Mounts (79-04 Mustang)Find parts that fit my vehicle

Description

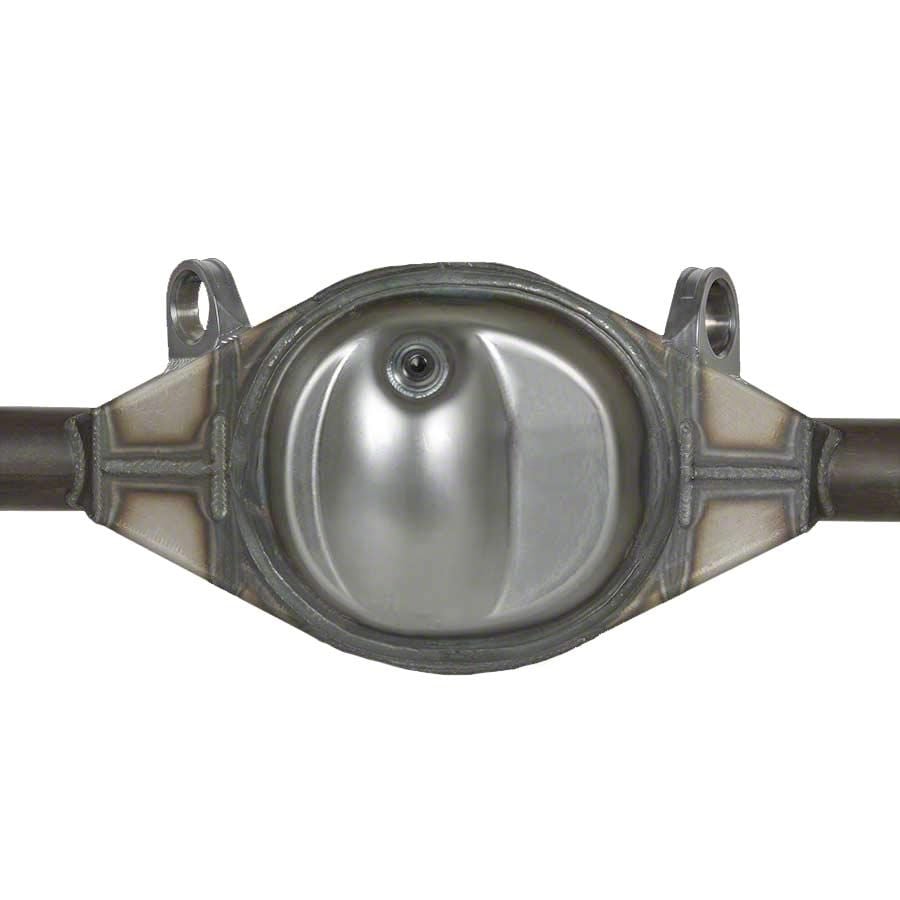

Strange HD Ford 9″ housing
With upper control arm mounts & choice of ends
Lower control arm mounts are not included
Ordering a housing in this state is not recommended
Great care must be taken when performing any further welding
Housing end alignment should be re-checked once completed

Information Required
Type of housing ends
Housing width

Pinion Offset Is .625″ To The Passenger Side
Same as OEM 8.8 housing

Center Housing – H1112 *
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes
• Extended cover provides clearance for 9″ & 9 1/2″ gear sets
* Modified for this application

Fill & Drain plugs – H1116 / H1116
• Facilitate fluid changes
• Allows for inspection of ring gear

Vent – H1112B
• Prevents build-up of internal pressure
• Ensures sealing integrity

Housing Tubing – H1141
• DOM 1026 steel
• 3.250″ OD x .250″ wall thickness

1979-2004 Upper Control Arm Mounts
• Strange Heavy Duty

Choice of Housing Ends – H1138 / H1137
• Forged chrome moly
• Accept 3.150″ bearings
• Other Strange housing ends are also available

Professionally Welded
• Jig welded to ensure proper alignment
• Tubes internally & externally welded to housing
• Provides maximum support & rigidity

Related Components
Gasket
Lube Locker………. H1111S

Axle Packages
Alloy 35………… P3502 / P350258
Pro Race 35….. P1007 / P100758
Pro Race 40….. P1016 / P1014

See Our Full Line of Center Sections
Available for Drag Race Only, Street / Track, and Performance Street Vehicles
