Find Axles for your Mustang

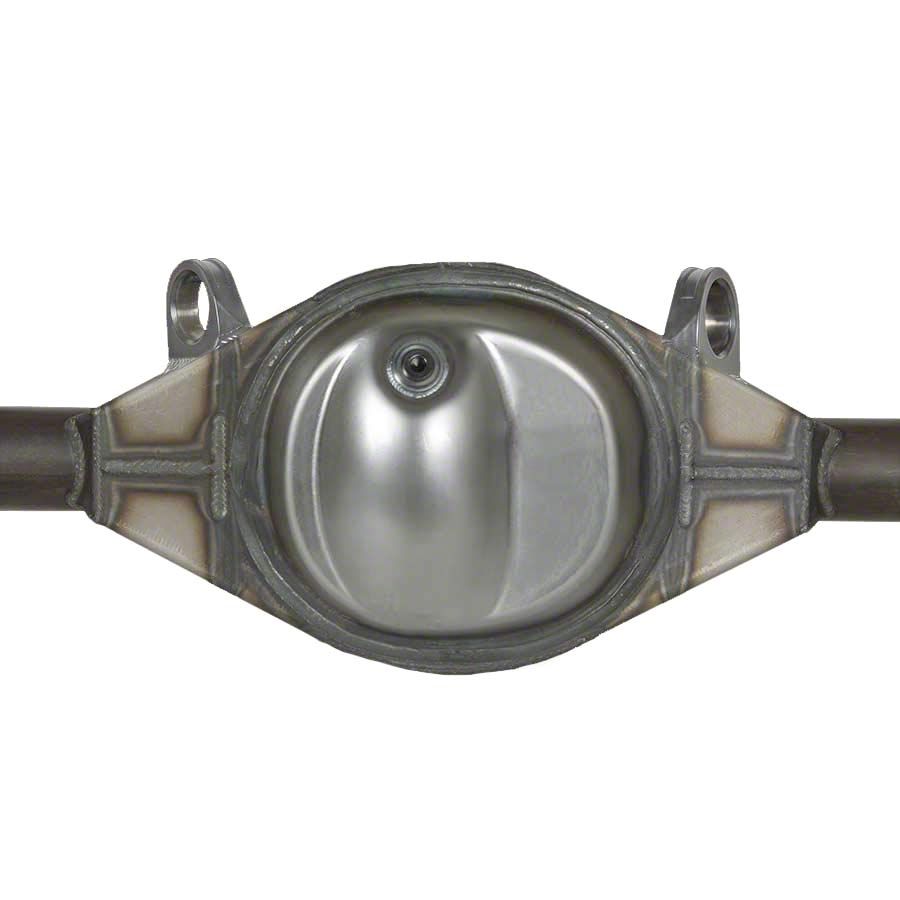

HD 9-Inch Ford Axle Housing with Upper Mounts (79-04 Mustang)Find parts that fit my vehicle

Item 465722
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$1,024.99 each

Coupon
Apply 5% Discount
One coupon per order | Details
Military, Medical & First Responders Earn $51.25 in AM Cash Rewards. Get Verified

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Heavy Duty 9‑Inch Ford Axle Housing
      • Upper Control Arm Mounts Included
      • Constructed from .141-Inch Mild Steel With .282-Inch Face Plate
      • Internal Gusset Plates For Rigidity
      • Slots For Weld Contact To Axle Tubes
      • Extended Cover Provides Clearance For 9-Inch and 9 1/2-Inch Gear Sets
      • DOM 1026 Steel Tubing (3.25-Inch OD x .250-Inch Wall)
      • Fill and Drain Plugs For Easy Service
      • Pinion Offset .625-Inch To Passenger Side (OEM 8.8‑Style)
      • Straightforward Bolt-On Installation
      • Fits 1979‑2004 Ford Mustang Models

      Description

      Performance Bolt‑In Rear Housing. The HD 9‑Inch Ford Axle Housing with Upper Mounts bolts directly into 1979–2004 Mustangs, delivering serious strength for high‑power builds. It replaces the weaker 8.8-inch housing with a rugged 9-inch platform, ideal for withstanding higher torque and abuse.

      Construction and Appearance. Built from .141-Inch mild‑steel center section with a .282-Inch faceplate and thick DOM 1026 tubing (3.25-inch OD, .250-inch wall), the housing features internal gussets and welded tube‑to‑tube seams. The extended cover clears 9-inch and 9 1/2-Inch gearsets, and the overall finish is shop‑ready bare weldable steel.

      Installation. Installation requires regular mechanical skills—jig‑welded alignment ensures accuracy. Drilling is not needed, but welding is required to fuse housing ends and axle tubes; upper mounts are preinstalled, but lower arms and housing ends must be added separately.

      Application. This HD 9‑Inch Ford Axle Housing with Upper Mounts fits 1979–2004 Ford Mustang models.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) 9‑Inch Ford Axle Housing

      Questions & Answers

      No questions about this product yet. Ask the First Question
