Installation Time
(approx) 6 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
On3 Performance Single Turbo System with 88mm Cast Wheel Ceramic Ball Bearing Turbo (86-93 Mustang w/ 351 Swap)Find parts that fit my vehicle
Item 483427-F
Our Price
$2,423.00 - $2,982.00
Military, Medical & First Responders
$149.10 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Type Turbo Kit
- Vendor On3 Performance
- Turbocharger Options Include 70mm Cast Wheel Journal Bearing, 70mm Billet Wheel Journal Bearing, 6766 Billet Wheel Journal Bearing, 6766 Billet Wheel Dual Ball Bearing, 6870 Billet Wheel Dual Ball Bearing, 76mm Cast Wheel Journal Bearing, 76mm Billet Wheel Journal Bearing, 78mm Cast Wheel Journal Bearing, 78mm Billet Wheel Journal Bearing, 76mm BMF Billet Wheel Journal Bearing, 76mm BMF Billet Wheel Ceramic Ball Bearing, 88mm Billet Wheel Journal Bearing With Requirement To Make Downpipe, 88mm Billet Wheel Ceramic Ball Bearing With Requirement To Make Downpipe
- Wastegate Options Include On3 Performance 44mm And Turbosmart 45mm Hypergate
- Intercooler Options Include 3 Inch Standard Intercooler, 4 Inch Race Core Intercooler, 5 Inch Race Intercooler That May Require Trimming The Bumper
- Hotside Upgrades Include Standard Black, Standard Black Stainless Steel Ultra Thick Wall 304 Upgrade, Ceramic Coating For Mild Steel Headers Upgrade
- Option To Add Second Wastegate Includes No Additional Wastegate, On3 44mm Wastegate, And Turbosmart 45mm Hypergate
- Boost Controller Options Include No Controller, On3 Performance Billet Manual Boost Controller, Boost Leash Electronic Boost Controller, Boost Leash Electronic Boost With Bump Box Controller, Turbosmart Eboost3 Electronic Boost Controller
- Y-Pipe Option Available As No Or Yes
- Injector Options Range From No Injectors To Ford Racing 47lbs, FID 725cc, FID 850cc, 210lb Bosch EV1 Injectors, Fuel Injector Clinic 1000cc, Fuel Injector Clinic 1200cc, Injector Dynamics 1050x, Injector Dynamics 1300cc, Injector Dynamics 1700cc, Injector Dynamics 2600cc
- Performance Upgrades Include On3 Performance 320lph Gasoline / E-85 Safe Fuel Pump, 450lph Fuel Pump, 525lph Fuel Pump, Billet Oil Filter Relocation, Brisk Low Boost Spark Plugs, On3 Performance Turbo Blanket, On3 Performance Downpipe Blanket, WideBand Gauge Kit, Transmission Temp Gauge Kit, Electric Water Temp Gauge Kit, Electric Oil Temp Gauge Kit, Electric Boost Gauge Kit, Oil Pressure Gauge Kit, CNC Billet Vacuum Distribution Block, Custom Urethane Stainless Air Filter, MAF Kit Calibrated To Injectors And Flange, Custom Tig Service For Welding On MAF Flange, Velocity Stack Black Or Polished, High Quality Silicone Vacuum Lines In Various Sizes And Lengths
- Optional Drop In 320 Fuel Hat Available
- Designed For Typical 500 Or Less HP Builds
- Recommended Turbo Option 67mm Premium Ceramic Ball Bearing
- Not Designed For High Port Heads Or Twisted Wedge Heads
- Includes Most Hard Components Needed For Single Turbo Installation
- Supports Blow Through Carb Applications With Required Carb And Bonnet For 3 Inch Inlet
- Fits 86-93 Mustang w/ 351 Swap
Description
Single Turbo Performance. This single turbo system offers a versatile approach to turbocharging the 5.0 Foxbody Mustang, supporting multiple turbocharger and component options for customization to various build goals. It enhances engine power and efficiency by delivering increased airflow and boost pressure.
Construction and Appearance. The kit includes options fabricated from premium billet and cast materials, with turbochargers available in journal bearing and ceramic ball bearing configurations. Key components such as headers and downpipes feature optional upgrades including ceramic coatings and stainless steel thick wall tubing for durability and heat management. Intercooler options come in various thicknesses to optimize cooling performance based on application needs.
Installation. Installation requires moderate mechanical skill with some welding and modifications, such as making or trimming downpipes or bumper areas for larger intercoolers. The system integrates with existing engine components but is not compatible with high port or twisted wedge heads to ensure proper fitment.
Application. Specifically designed to fit 86-93 Mustang with 351 Swap.
On3 Performance 351.88cbb.3
351.88cbb.4
351.88cbb.5
351.88cbb.3.TS
351.88cbb.4.TS
351.88cbb.5.TS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

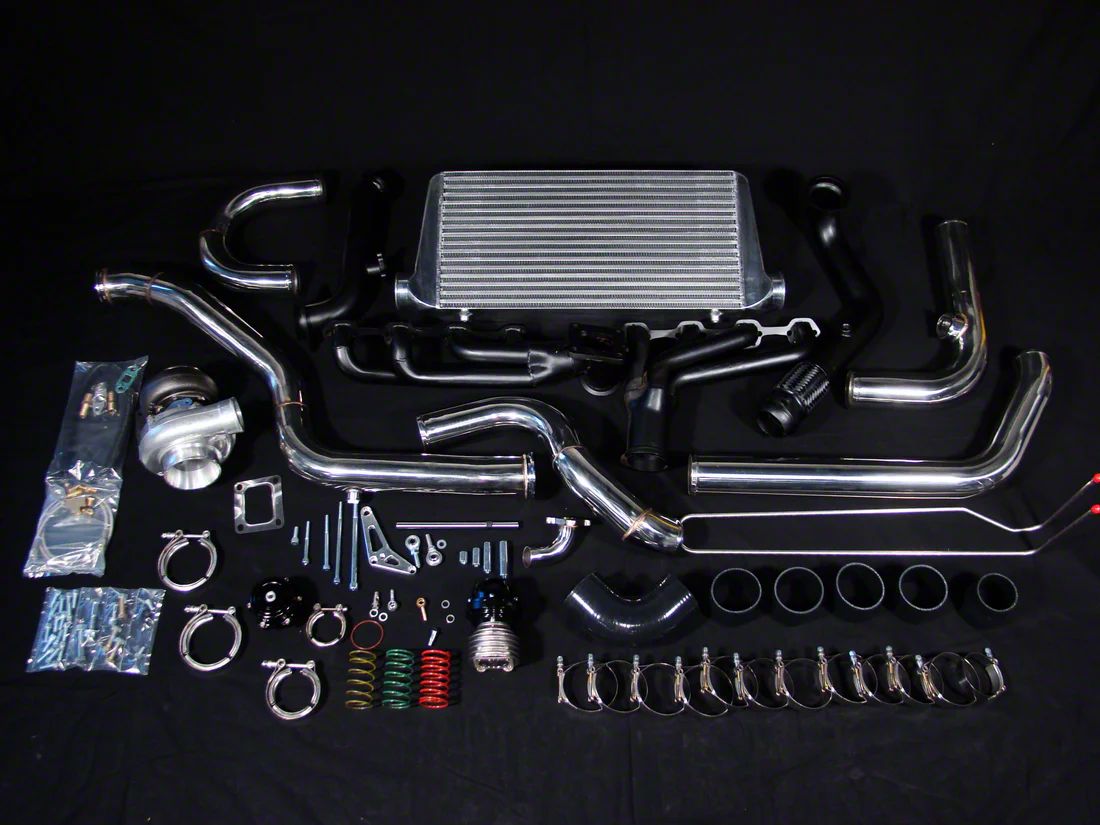

What's in the Box
- (1) Turbocharger
- (1) Exhaust Manifold
- (1) Front Mount Intercooler
- (1) Charge Piping
- (1) Wastegate
- (1) Blow Off Valve
- Oil Lines
- Hardware
Tech Specs
