Pypes Exhaust Hanger Kit (99-04 All)

Item 20020
Call a Mustang Enthusiast at 1-877-887-1105
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $74.99 You Save 14% ($10.31)
Our Price

$64.68

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Review & Installation Video

      The Pypes exhaust hanger kit is available for any 1999 to 2004 Mustang owner who is looking to replace the rusted or worn-out factory hangers in order to safely hang their exhaust. It's also a perfect match for any V6 owner looking to convert to a true dual-exhaust, in which case these will be required. This set is inexpensive at about $50 for what you see here. The install is just a few bolts, so expect one out of three wrenches on our difficulty meter, which I'll touch on more later in the video. The New Edge Mustangs are quickly closing in on two decades old. So naturally, the stock materials under the body will start to need some TLC. One of the things that tends to rust out first is going to be the exhaust hangers and isolators. After so many years of holding up the exhaust and muffler rods, it's just bound to happen. The worst scenario is to have them finally give out when you're driving on a highway. So you want to make sure you have a reliable replacement before that time comes. If you're looking to pick up an aftermarket exhaust, to beef up the sound, and have a little more fun with your Mustang, it's always a good idea to grab some new hangers, since you'll be down there doing the exhaust work anyway. If your Mustang has got a single exhaust, essentially, V6 models, then you might be considering picking up a true dual conversion. If that's the case, then you'll absolutely need to get a set of exhaust hangers like these for the opposite side in order to hold up the new pipes.This will do the trick, and the kit offers everything you need in one convenient package. These are made from a high-quality 304 stainless steel, which is super rust and corrosion-resistant, great for the guys located in wintery weather areas who see a lot of road salt. The grommets, exhaust strap isolators, as well as the tieback bolts are all included, all made of top-quality materials, unlike the factory stuff that falls apart faster. You can pick up everything I just mentioned for between $50 and $60, which I think is totally worth it if you need to pick up a replacement. Grabbing a single hanger replacement from Pep Boys or Autozone, or your local auto parts store, can run you about $40 in some cases just for a single one. So this is all around just a better deal. The installation, as you can imagine, is pretty straightforward. All you need is a jack and jack stands, as well as a ratchet and socket set for the bolts. It should take about 30 minutes or so from start to finish. We give it a one out of three wrenches on our difficulty meter. You first want to get the car in the air and support it on jack stands. Next, I would place a jack underneath the exhaust where the first hanger needs to be replaced. This way, when you pull the hanger off of the isolator, the exhaust just won't drop down to the ground. From here, you'll need to pull the rod out of the isolator, and unbolt the hanger from the body of the car using your socket set and your ratchet. Pick up the new hanger and isolator assembly from the kit, and bolt it down the same way the stock one was in the factory location. Slip the exhaust hanger rod into place and repeat for the next one, and you're good to go. If you're the owner of a 1999 to 2004 Mustang, you might want to check out the Pypes exhaust hanger kit available right here at americanmuscle.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • 304 Stainless Steel Construction
      • Perfect for Aftermarket Exhaust Systems
      • Required for True Dual GT Cat-Back on V6's
      • Improves Undercarriage Appearance
      • Sold as a Set of Two
      • Fits All 1999-2004 Mustangs

      Description

      Durable, rugged construction. Replace your Mustang's rusty factory exhaust hangers with durable Stainless Steel. These Mustang exhaust hangers feature OEM style construction, but ditch the rust-prone factory steel for gleaming 304 Stainless Steel.

      Versatile. These hangers work with any aftermarket or stock cat-back exhaust system and will be the last hangers your Mustang will ever need. The kit fits all 1999-2004 V6 and V8 Mustangs, and is also the required hardware for installing a True Dual GT Cat-Back on V6 Mustangs.

      Application. This Stainless Steel Exhaust Hanger Kit is designed for use on the 1999 to 2004 V6 and V8 Ford Mustangs. Required for 1999-2004 V6 Mustangs converting to a True Dual Cat-back exhaust.

      Fitment: 1999 2000 2001 2002 2003 2004 Details

      MPN# HFH30

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.3

      Customer Reviews (88)

      Write a Review

      Ratings Summary

      4.3 out of 5 overall rating from 88 customers




      • January 07, 2020

        4 2002 V6 - SydneyR

        !!

        It was difficult to get the exhaust into the rubber part but over all easy to do

        Helpful (0)
      • November 10, 2019

        4 1999 V6 - AlexanderT

        One clip was a little short for each side

        Overall, great kit. Took away the hassle of going to a junkyard and trying to find a GT with the correct hardware. Only complaint is that the clips were 1/4-inch too short to reach one of the frame holes on each side, nothing some quick drilling couldn’t fix though. I didn’t use the smaller, squarer hangers, as my exhaust dumps right before the rear axle, so I can’t comment on those pieces of this kit.

        Helpful (0)
      • September 05, 2019

        5 2002 V6 - Lazy4now1054

        Great product

        Fit right were it should easy install. The screw clips were much nicer than having to try and feed bolts through the holes good material

        Helpful (0)
      • August 30, 2019

        5 1999 V6 - Littlepony

        Perfect fit

        No modifications to car or parts they bolted rt into place.

        Helpful (0)
      • August 25, 2019

        5 2002 GT - Anonymous

        Awesome

        Great product and fast service. Will definitely order again.

        Helpful (0)
      • June 01, 2019

        5 2000 V6 - Mel

        Great will give A

        Just what we needed to finish up. They fit and our mustang looks and sounds great.

        Helpful (0)
      • April 27, 2019

        5 2000 V6 - DonH

        Great buy

        This product worked awesome! Fit right where it was suppose to, worked great.

        Helpful (0)
      • April 18, 2019

        5 2001 Cobra - Shady

        Great Quality

        Easy to install, lined up perfectly, no complaints here... would recommend to anyone needing to replace missing/worn out exhaust hangers!

        Helpful (0)
      • February 15, 2019

        1 2000 GT - Jdy2kgt

        Did not work with 2000 GT and Borla exhaust

        These new hangers only come with one "rod" coming off the plate to hold one rubber piece. The new Borala ATAK exhaust system requires two "rods" just like the factory Ford muffler hangers have. Do a google search for "99-04 factory muffler hangers" and you'll see what I mean.

        Helpful (1)
      • January 28, 2019

        5 2004 V6 - AnthonyG

        Exhaust Hanger Kit

        Fits nicely and keeps the exhaust tip in place would recommend.

        Helpful (0)

      Questions & Answers (7 answers)

      5 Top Rated Questions

      Will the exhaust tips fit underneath a V6 bumper If i get these hanger will the exhaust fit underneath a V6 bumper without any modifications?

      • yes, I just put them on and they fit perfectly... the hanger kit can be adjusted either large (v6 bumper), or small (gt).

      Helpful (2) Show 2 more answers

      Hello I ordered this kit but it didn’t come with any of the bolts or clips. I was wondering what size the bolts are so I can install my exhaust this weekend

      • Please reach out directly to our customer service department via our live chat feature, email at support@AmericanMuscle.com, or by calling 1-855-209-8876 we would be glad to get you set up with a hardware request for this and apologize for any inconvenience.

      Helpful (0)

      Was wondering if these hangers will work with the MAC Boom Tube Cat-Back Exhaust for a 2002 v6.

      • Yes, this will work with the MAC exhaust for your Mustang.

      Helpful (0)

      I would like to know where you install the passenger side hanger (The bigger one, not the box one) underneath the car. I do not have exhaust tips with the rod. The are long. I need to hold up the pipe. I presently have a clamp near the bumper. I have a V6. Thank you.

      • The Pypes Exhaust Hanger Kit will install on the passenger side near your control arm mount. Installation with pictures can be seen in the Mac exhaust install guide, linked below: https://lib.americanmuscle.com/files/40048-cust.pdf

      Helpful (0)

      Is welding required to use this kit when converting to a dual exhaust on V6s?

      • You will not need to weld this kit when converting to a dual exhaust with your V6.

      Helpful (0)
      Post Your Question
      2 More Questions
      There is a hex-head screw at the rear end of the exhaust. It's not making up properly. What size is it i.e. 1 1/4" 8/32? 1 answer
      Will the pypes hanger kit also work with the flowmaster thunder series mufflers for my v6. I was looking for some hangers for my flowmaster catback thunder series that i recently purchased and was wondering if they would work for not only a pypes but also flowmasters 1 answer

      Installation & What's in the Box

      Installation Info

      What's in the Box

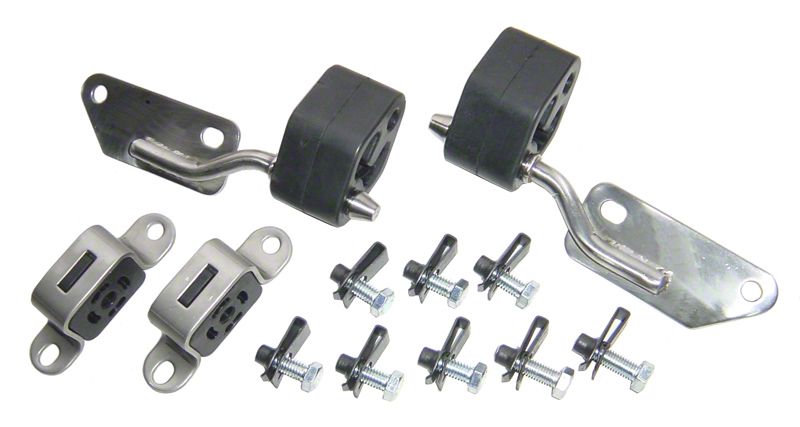

      Hardware included:
      • (2) muffler rod grommet / hangers
      • (2) exhaust strap grommets
      • (8) tieback bolts

      Tech Specs

      Will It Fit My Mustang

      • Bullitt - 01
      • Cobra - 99, 01, 03, 04
      • GT - 99, 00, 01, 02, 03, 04
      • Mach 1 - 03, 04
      • V6 - 99, 00, 01, 02, 03, 04
