Speedmaster 225cc Intake Runner Full CNC Aluminum Bare Cylinder Head; 64cc Chamber (97-04 Corvette C5; 05-07 6.0L Corvette C6)Find parts that fit my vehicle

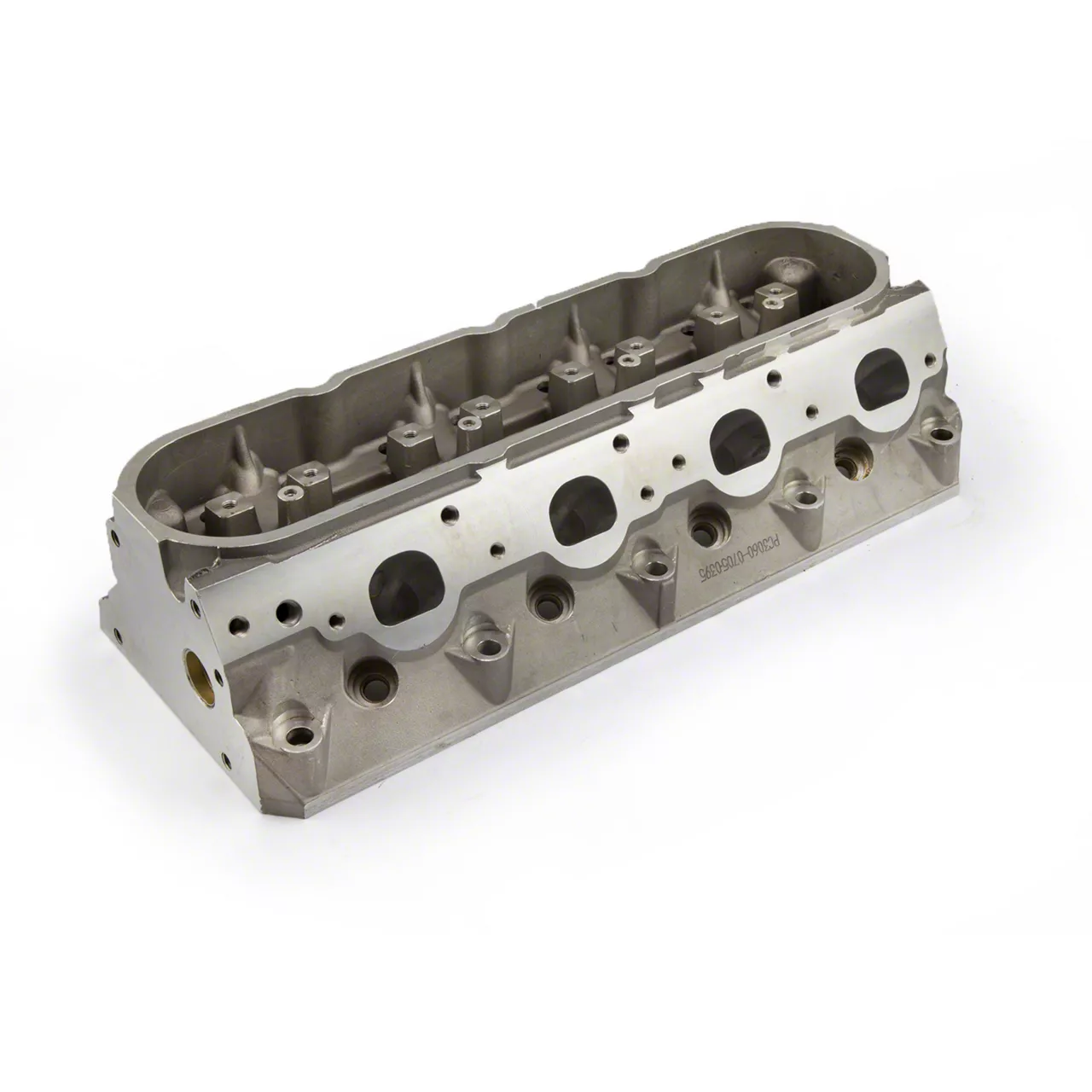

Name: Speedmaster 225cc Intake Runner Full CNC Aluminum Bare Cylinder Head; 64cc Chamber (97-04 Corvette C5; 05-07 6.0L Corvette C6)
Brand: Speedmaster
SKU: CV38325
Price: 755.00 USD
Availability: InStock

Item CV38325

1 Reviews of Speedmaster

Our Price

-0% $755.00 Was $755.00

Military, Medical & First Responders $37.75 Available in AM Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Brand Speedmaster
Part Type Cylinder Head Bare
Cylinder Head Material Aluminum
Cylinder Head Finish Natural
Combustion Chamber Volume 64 cc
CNC-Machined Combustion Chamber Yes
Intake Runner Volume 225 cc
CNC-Machined Intake Runner Yes
CNC-Machined Exhaust Runner Yes
Intake Port Shape Cathedral
Intake Port Location Standard
Exhaust Port Shape Oval
Exhaust Port Location Standard
Comp Valve Job No
Intake Valve Diameter 2.020 In.
Exhaust Valve Diameter 1.550 In.
Valve Springs Included No
Damper Spring Included No
Retainers Included No
Locks Included No
Valve Stem Seals Included No
Rocker Arm Studs Included No
Rocker Arms Included No
Rocker Arm Nuts Included No
Guideplates Included No
Valve Cover Mounting Style Perimeter Bolt
Accessory Bolt Holes Drilled Yes
Intake Valve Angle 15 Deg.
Exhaust Valve Angle 15 Deg.
Valve Guides Included Yes
Valve Guide Material Bronze
Valve Seats Machined Yes
Valve Seat Machine Style 3-Angle
Valve Seat Material Ductile Iron
Steam Holes Drilled No
Oiling Style Through Pushrod
Machined For O-Ring No
Heat Crossover No
Sold Individually
Fits 97-04 Corvette C5; 05-07 6.0L Corvette C6

Description

Performance Cylinder Head. The Speedmaster 225cc Intake Runner Full CNC Aluminum Bare Cylinder Head with 64cc chambers is designed to provide enhanced airflow for improved engine performance. Compatible with LS1, LS2, and LS6 engines, this cylinder head is suitable for builders looking to increase airflow capacity for street or track use.

Construction and Appearance. Made from high-grade aluminum using a gravity casting process, this cylinder head offers durability and uniformity. It has a natural finish and features precise CNC machining on the combustion chambers, intake, and exhaust runners to promote consistent port flow.

Installation. Installation is straightforward for experienced builders. Accessory bolt holes are pre-drilled, eliminating the need for additional drilling. This bare cylinder head requires assembly with valves, springs, and other components, making it ideal for custom engine builds.

Warranty. This cylinder head includes a 12-month limited worldwide warranty. Application. Fits 97-04 Corvette C5 and 05-07 6.0L Corvette C6 engines. Compatibility with LS1, LS2, and LS6 engines is generally noted; however, final fitment depends on the overall engine setup.

Speedmaster PCE281.1460
