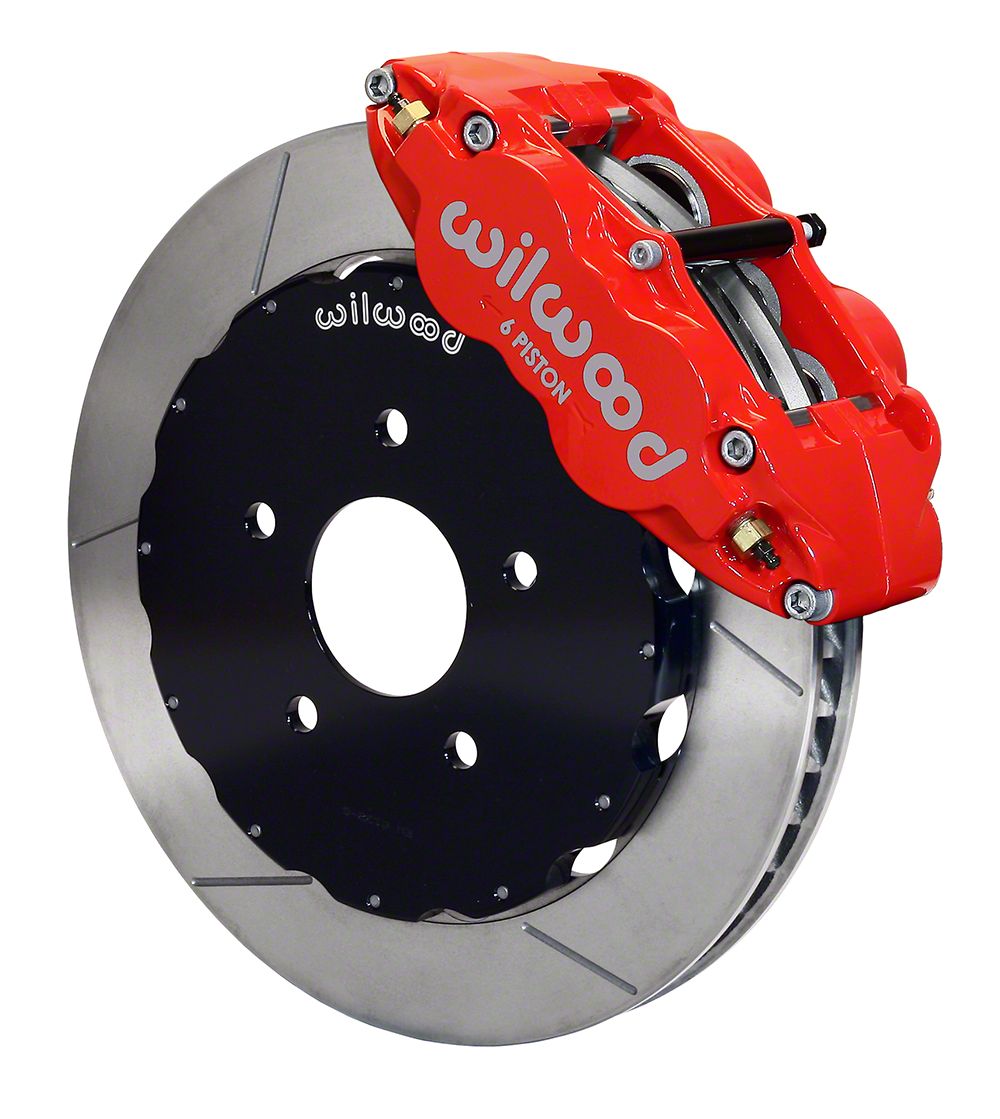

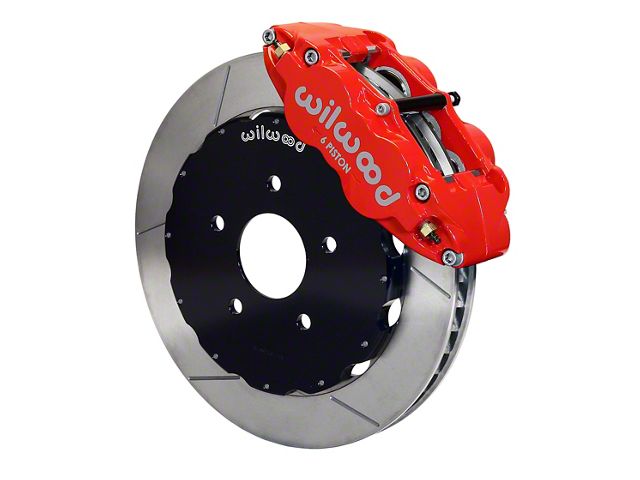

Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 13.06-Inch Slotted Rotors; Red Calipers (97-13 Corvette C5 & C6)Find parts that fit my vehicle
Item CV7192
Our Price
$2,155.71 kit
Military, Medical & First Responders
$107.79 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Item Options
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Forged Narrow Superlite 6R Six-Piston Caliper Provides Unsurpassed Braking Capacity
- Kit Designed For 13.06-Inch Big Rotor Applications On Late Model Vehicles
- Engineered For Simplified Installation And Compatibility With OE Master Cylinder Output And ABS Functions
- Includes 13.06 Inch Diameter GT Slotted Rotors With Black Electro Coat Finish
- Calipers Feature Radial Mount Type With Stainless Pistons
- Brake Pads Utilize BP-20 Compound With An 8.2 Square Inch Pad Area
- Rotor Hats Made From Aluminum With Black E-Coat Finish And Short Offset
- Minimum Wheel Diameter Requirement Is 17 Inches
- Compatible With Drop Spindle And Factory Disc Spindle Types
- Intended For Increased Brake Capacity On Show Cars And High Performance Street/Track Machines
- Optional Caliper Finishes And Rotor Designs Available For Personalization
- Includes Comprehensive Kit Components With Relevant Part Numbers For Calipers, Rotors, Hats, And Hardware
- Wheel Clearance Diagram Available To Verify Fitment
- Fits 97-13 Corvette C5 & C6
| Brand | Wilwood |
| Brake Kit Location | Front |
| Brake Kit Rotor Type | Slotted |
| Brake Kit Minimum Wheel Size | 17 Inch |
Description
HIGH-PERFORMANCE BRAKE KIT. The Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 13.06-Inch Slotted Rotors and Red Calipers offers exceptional stopping power for performance-oriented vehicles. This kit enhances braking capacity, delivering precise control and improved heat dissipation during aggressive driving or track use. It is ideal for enthusiasts upgrading from stock components to a more robust and reliable braking system.
CONSTRUCTION AND APPEARANCE. The kit features forged aluminum Narrow Superlite 6R six-piston calipers with stainless steel pistons engineered for rigidity and weight savings. Rotors are crafted from Spec-37 iron with a GT 48 curved vane design, finished in black electro coat for corrosion resistance and heat management. The rotor hats are billet aluminum with a durable black e-coat finish, providing a sleek, functional appearance that complements vehicle aesthetics.
INSTALLATION. Installation is straightforward with no drilling required, engineered for compatibility with both aftermarket and factory disc spindles. The kit includes detailed assembly instructions and a wheel clearance diagram to verify fitment, supporting skilled enthusiasts and professional installers alike.
APPLICATION. This brake kit fits 97-13 Corvette C5 & C6 models, providing a direct upgrade path to enhance braking performance and appearance without compatibility concerns.
Wilwood 140-8921-R
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Big Brake Kit
