Hey guys, Adam here with americanmuscle.com and today we're taking a closer look at, installing and dyno-testing the Bama X4/SF4 Power Flash Tuner from SCT available with two custom tunes for your '05 to '10 Mustang GT or Bullitt. You should be checking this out if you're looking for a handheld custom tuner that can maximize the performance of your vehicle whether it be stock, mildly modified or even heavily modified. This guy comes with two custom tunes, an 87 and a higher octane at 93 race tune from Bama. It also comes with a number of other features that I'll break down in this video. And again, I'll show you how to use it. And we'll talk about dyno numbers. So, before we jump into all the details of the tuner itself, why don't we take a look at the dyno graph?So we strapped down our S197 to the dyno to establish a baseline run here. Keep in mind, guys, that we had 87 octane in the tank for our baseline, completely bone stock otherwise, walked away with 269 horsepower and 296-pound-feet of torque at the rear wheels. We then, of course, uploaded our 93 octane tune, loaded the tank with 93 octane, ran under the same conditions and walked away with 283 horsepower, 310-pound-feet of torque at the rear wheels, good for peak gains of about 14 horsepower and 14 torque at the rear wheels. Now, those gains alone are pretty impressive from just a simple tune, but looking at the curve gains, it gets just a little bit better there. Now under the curve we see as much as 17 horsepower and as much as 18 torque in gains at the rear wheels, which, guys, that's really what you're gonna feel out on the road. Now, from a simple 93 octane tune, switching from 87 to 93, this is a pretty decent gain, I'm pretty impressed with it, but it only gets better when you add those power adders into the mix.All right. So, let's talk about the X4 tuner here from SCT. Now it comes with two custom tunes from Bama Performance and those tunes, again, are the 87 octane, the lower octane fuel, and the 93 race option. Now, running off of pump gas here, if you guys are looking for just a simple upgrade and a little bit of performance when it comes to a daily driver or weekend warrior, the 87 tune is a great option to have. If you're just looking for a small bump in power without being too overwhelming and without having to rely on 93 octane, the 87 is there for you on your device. Now, if you're looking to boost performance, really maximize your gains, 93 octane is gonna be the way to go using the 93 race tune from Bama. That guy is gonna take into consideration things like timing, spark, air-fuel ratio, all while maintaining the safety of your vehicle and maximizing its output. Even with automatics, you'll see a firmer shift point there drastically changing the drivability of your vehicle, and that's gonna be the case whether it is a daily driver or if you're taking your vehicle to the track, this tune is definitely going to maximize that performance.Aside from the tunes themselves, you are going to reap a whole lot of benefits with a number of other features on the device, including the DTC code reader, DTC being the Diagnostic Trouble Code. Anytime check engine light comes up, can plug this guy in without needing a separate OBD2 dongle. You'll be able to read the code, get a brief description, and you can clear it right on the device as well which can come in handy. Now, aside from that, you also have the gauges and datalog screen. You can monitor live engine vitals on the fly, things like air-fuel ratio, intake temp, coolant temp, and a number of other options. You can customize the gauge screen to show two gauges, a single, or up to eight. There's so many options with that screen. And if you pick up the SCT windshield mount sold separately, you can mount this guy on your windshield and monitor it on the fly within arm's reach of the driver seat at all times, which I think is definitely a huge thing to take advantage of. With that in mind, you can also datalog the vehicle. If you wanna monitor the performance and communicate that back to Bama for possible revisions to even improve upon the tune, you can do that right on the device. You can record the datalog on the device plugged into your OBD2, stop recording, upload it to your computer with a simple plug included in the kit and communicate that back to the tuner.Speaking of revisions, you're automatically enrolled in the Bama Free Tunes for Life program with the purchase of a Bama tune and corresponding tuner like the X4 or the Rev-X. Now, anytime you add a power adder, something like a cold air intake, long tubes or even a cat-back to your vehicle, you can just hit up Bama, they'll revise your current tune to include your new mod, really maximizing that performance, all for free, of course, no extra charge. So, that is a huge value included in this tuner. If you see yourself building these vehicles, which let's be honest, we all do, that's something to take advantage of as well. Now, that is all gonna be included in this package for right around 400 bucks and the install I'm gonna give one out of three wrenches on our difficulty meter. Anybody can tackle this in the driveway at home, I'd say about 20 to 30 minutes from start to finish. No real tools are needed for that install. All you need is the harness included in the kit, plug it in, and you can get going. I'm going to show you every step of the process. Let's get started.First off, guys, of course, grab the OBD2 harness included in the kit and your X4, hop in the driver seat. We're gonna plug this into the OBD2 port where it's located under the left side on your driver dash. So, you'll find that clutch, come right up above it, plug that guy in. Then, of course, the other end is gonna go into the top of the X4. From there we can shut the door, put the key in the ignition and get the tuning. Next step once you plug it in, you wanna take your key, put it in the ignition. Now, you're gonna start your ignition but you're not gonna start your engine. So, turn the ignition on. From the main menu, we're gonna jump right into tuning the vehicle. So, select Program Vehicle. You wanna hit Continue on that street notice basically letting you know it's not legal for sell or use in pollution controlled vehicles. Again, just a notice to turn your key on. From there, it may prompt you to connect to Wi-Fi. From there, it may prompt you to make updates to the device, especially if it's a brand new one right out of the box. Ours is not, so it does have the device updates already on it. So, we're gonna jump right into Program Vehicle but it is required to go through that tuning update process via Wi-Fi. So, from here, we're gonna select the tune that we want to go with. For you guys, you'll have the 87 octane option and the 93 option if you've loaded that to your X4. We're focusing exclusively on the 93, so that's the only option we're showing today, but it's the same concept if you're picking 87. So, we'll go ahead and select our 93. From here, you can adjust some options. In this case, you can adjust the global spark, wide-open throttle, air-fuel, axle ratio, a couple of different parameters. We're gonna hit Approve and keep it as is. It will also let you know it's disabling the pre-loaded tune that the X4 comes with. That you wanna hit Confirm. That's inevitable when using a custom tune. And again, just continue to confirm all the options.So, now it prompts you to turn the key off, and you just wanna wait until it prompts otherwise. Key back on. But again, you're not starting the engine. At this point, it's gonna load 0 to 100 maybe a couple of times and it's saving your stock file to the device. What that means is anytime you wanna revert back to the stock tune, you can do so right on the device following the same steps we have been in this process, return to stock will then be an option. All right. So, once it saves your stock tuned to the device, it will then begin preparing the data, it will then begin flashing the vehicle. Once it's done, it will let you know that program is complete. But again, during no part of this process do you wanna unplug your device especially after it pulls the stock tune. Once the process has started, let it do its thing. Now, if you noticed during this process, some lights have come on the dashboard like our check engine light, there's the battery light, there's the airbag light. So, a couple of those things come on during the tuning process, that's just communication with the ECU. It'll clear the DTCs which it just did, Diagnostic Trouble Codes, and from there it's gonna process data and let us know the tune is complete. There you go. Download complete. You can hit Done. Takes you right back to the main menu and you're good to go.From here, guys, I wanna show you everything else about the X4 device aside from tuning the actual vehicle. Now, I know we talked about the gauges and datalog, the DTC code function. Let's take a look at how that works. So, directly under Program Vehicle at the main menu, you'll see gauges and datalog. If you select this guy, turn your key on, you can hit Continue and you'll be able to track live engine vitals. What we're gonna have to do is select the proper configuration depending on our gen. What we're gonna do is go down to Ford Gas 2007 and Prior Years. From there, it processes that configuration and loads up those gauges. Now right off the bat, we start off with the default of two gauges, but you have full control over what displays on the screen. So, if you wanna change battery voltage, you just select it, select Item, and then there's a number of options to choose from. We have Battery Voltage, Coolant Temperature, Desired Idle RPM, Fuel Pump Duty Cycle, Intake Air Temp, Engine Load, and there's a ton more options. So, what we're gonna do is let's select Intake Air Temperature, select Approve, and it replaces. If you go to the right, there's a menu. Select Gauge Layout. You can actually change the layout of the gauges that were just on the screen. You can monitor two, three, four, six, up to eight different vitals at once. You just select that layout and it pulls up eight gauges. Now, again, you can change every single one of these to whatever you want, replaces it in an instant. But if you wanna look at datalog, start and stop datalog, which basically means that you can record the engine's performance in a run if you're on the dyno or even if you're out on the road getting a real road test run, communicate that back to Bama for possible tune revision. So, that's really useful. If you want to stop, you just hit Stop Datalog and it goes right back to the main menu.Now if you go to Vehicle Functions, you'll see the DTC code reader, Diagnostic Trouble Code being your check engine light, the light comes on, plug this guy in, read the code, you can get a description, and clear it right then in there. Special Functions most people will not touch, things like cam relearn. So, you probably don't have to worry about that, but it is there if you want. You're gonna hit Exit. Vehicle Info, it gives you things like the VIN number, so that's useful, ECU strategy code, which is also useful, and a couple of other vehicle parameters. The Device Info screen will give you things like your device software and firmware versions, your unlocked and married status. So, you can see the married status will show you that your device is married to your vehicle. Now, the unlocks basically means you have a certain amount of unlocks, three to be exact, that allows you to change the X4 from your vehicle to a different vehicle. It can do that up to three times.Device Settings is also useful. Wi-Fi and check for updates go hand in hand. You'll want a Wi-Fi network access in order to wirelessly check for updates. SCT often puts out software and firmware updates, so you wanna stay up to date. Under that, simple things like brightness for night and day modes, orientation, you can change that to landscape instead of portrait. Theme is pretty useful. You can change it from red to blue. There's also a dark mode. Keep that guy on red for now. And then finally, a couple of other simple audio functions and startup function, which I think is going to be a really important settings menu. And there you can change the way this starts up right off the bat to display the gauges mode instead of the home screen. So, if you're constantly using the gauges screen, you can make it boot up to the gauges screen right off the bat. So, that's really useful. From there, can do a factory reset if you want, and then finally takes you back to the main menu and that's your X4.Well, guys, that's gonna wrap up my review and install for the Bama X4/SF4 Power Flash Tuner with two custom tunes available for the '05 to '10 GT or Bullitt. You should pick this up right here at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
05-10 GTs have dyno proven gains of 17 RWHP and 18 ft-lb's of Torque or more on Bama Custom Tunes. By optimizing the air/fuel ratio and tweaking variable cam timing, a Bama Custom Tune is proven to squeeze out the extra horsepower Ford left on the table.
Drastically enhanced throttle response and a much more aggressive throttle map will dramatically improve your Mustang's acceleration, shaving tenths off your quarter mile time while throwing you into the back of your seat every time you smash the gas. Automatic transmissions will see an even greater gain in acceleration and drivability, as the tune adjusts shift points and firmness.
For each and every Bama Tune, we ask you 19 questions about your specific Mustang, including your unique set up and intended use, in an easy to use web form. This information allows us to write an entirely custom tune just for your specific vehicle to ensure we deliver the most power and performance possible.
Our Bama Custom Tunes are developed in-house on our Dynojet 224xLC chassis Dyno. Hours of research and development through street, track and dyno testing/datalogging left us with fully refined custom tunes. The Bama Performance team has exclusive access to our inventory of parts.
Designed for the aggressive daily driver or weekend warrior. Bama's Performance tune provides more power than the stock tune along with increased throttle response and improved shift firmness.
Designed for Race use. Bama's Race tune delivers maximum horsepower and torque with aggressive transmission settings and a sensitive throttle response. 93 Octane or higher fuel is highly recommended.
**NOTE: Programming custom tunes may take 2-3 business days plus applicable shipping time. We recommend ordering other products separately to avoid delay. Heavily modified cars are not tunable with a mail order tune. Click for restrictions. Membership in the Tunes for Life program is is valid for as long as you own the car that was originally tuned and is non-transferrable.
Fitment: 2005 2006 2007 2008 2009 2010 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 15 Minutes
Simple installation for anyone.
What's in the Box

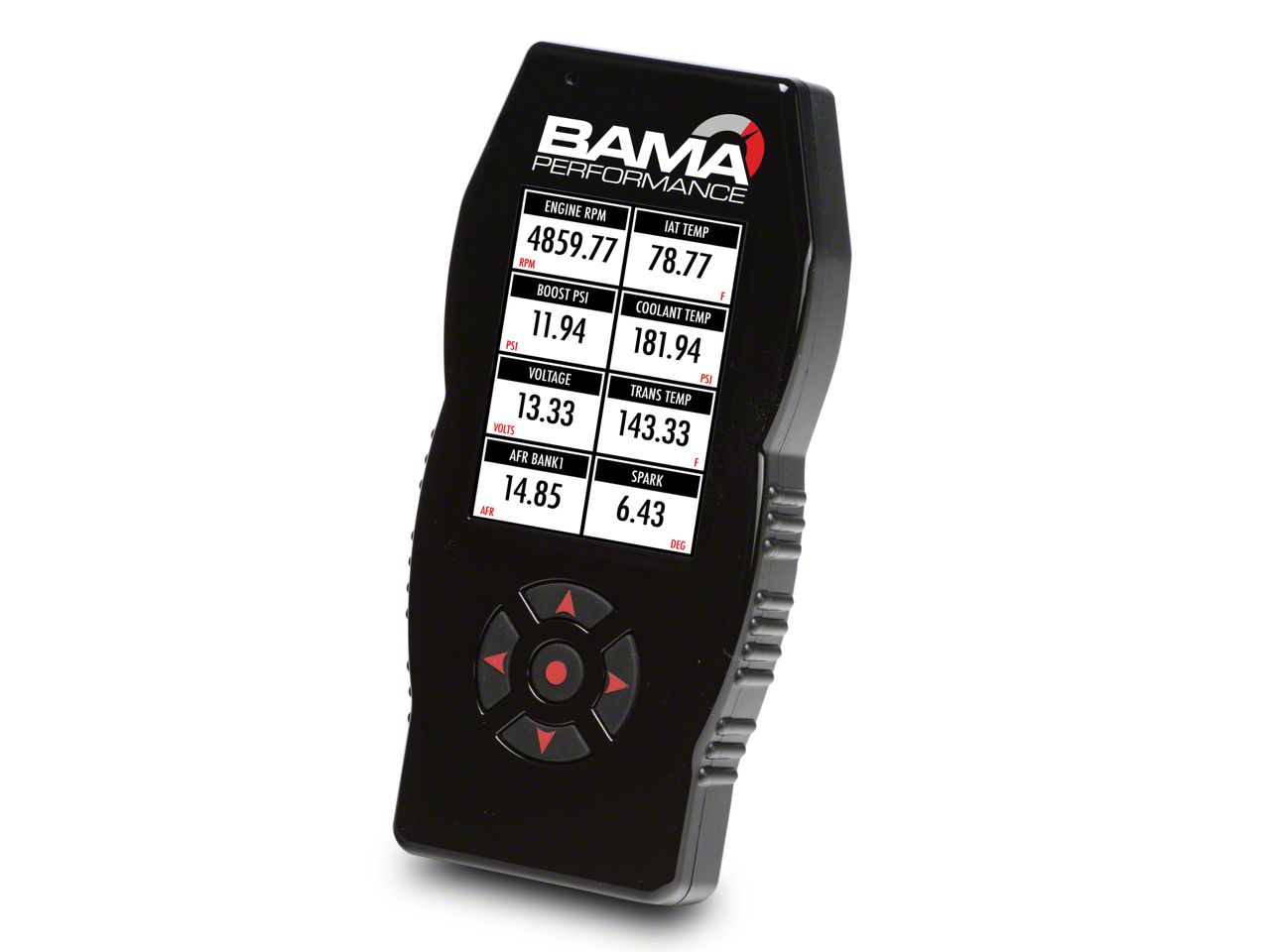

Compact Design. The SF4/X4 Power Flash Tuner measures in at 2.7” wide X 5.5” tall making it much smaller than the original SF3/X3 for easy storage in your center console or glove box. The cord is detachable and there is no battery or power supply needed. It uses the power from your vehicle's diagnostic port or computers USB connection.
Full Color Display. The SF4/X4 Power Flash Tuner features a full color 2-3/4" diagonal LCD screen with user adjustable portrait or landscape modes. The SF4/X4 also has a convenient power saving auto dim feature.
Built-in WiFi. The SF4/X4 Power Flash Tuner is now WiFi-capable meaning you will no longer have to plug it into your PC/Windows computer to receive the latest SCT firmware updates.
Diagnostics. The SF4/X4 Power Flash Tuner can also be used as a diagnostic code reader. Save yourself hundreds of dollars each year by reading and clearing your own trouble codes rather than paying a dealer to do the same. Its as easy as a few simple steps.
On Screen Data Logging and Monitoring. With a full color LCD display, the SCT SF4/X4 Power Flash Tuner makes it EASY to read the Built-In Data Logging or Real Time Monitored Vehicle Data, view popular sensor data such as EGT, Air/Fuel Ratio or any other 0-5 Volt source.
Easy to load; easy to restore. When you load your custom tune on the vehicle, the tuner automatically stores your vehicle's factory settings. To return the vehicle to its factory settings, just plug the tuner back in, select the option to restore the factory settings, and you're done.
Free tunes for life! Every customer that purchases a tuner is enrolled in the "Free tunes for life" program. Any time that you make additional mods to your vehicle, our team of SCT certified Bama Custom Tuners will create new tunes for you. Just send us a list of the part or parts you've added and we'll email the new tune files to you.
Custom Bama Tunes specific to your vehicle. When you order a tuner, you aren't just getting a tuner - you are getting the tuner and 2 dyno-tested custom Bama tunes:
Nitrous (91, 93, E85, Race Fuel) - Our nitrous option can be added to any of our previously mentioned tune options, but only for 91, 93, E85, or Race Fuel.
Technical Note About Fuel. Use of E85 will require larger fuel injectors such as Injector Dynamics ID1300 or Ford Racing 47lb/hr Injectors. Unleaded race fuel can also be used, but Stoichiometric points must be supplied.
**NOTE: Programming custom tunes may take 2-3 business days plus applicable shipping time. We recommend ordering other products separately to avoid delay. Some heavily modified cars are not tunable with a mail order tune. Click for details.
SCT SF4/X4 Power Flash Tuner Features:
|Memory Size:||4 GB||Custom Tunes Held:||10|
|Year:||2005-2010 GT||Model:||SF4/X4 Power Flash Mustang Custom Tuner|
|Manufacturer:||SCT||Special Features:||Full color LCD display |
10 More Questions
Not compatible with Mac software
