Auto Mafia Racing V-Band Clamp; 2.50-Inch

Item 465976
Product Image
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$18.95

In Stock

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Description

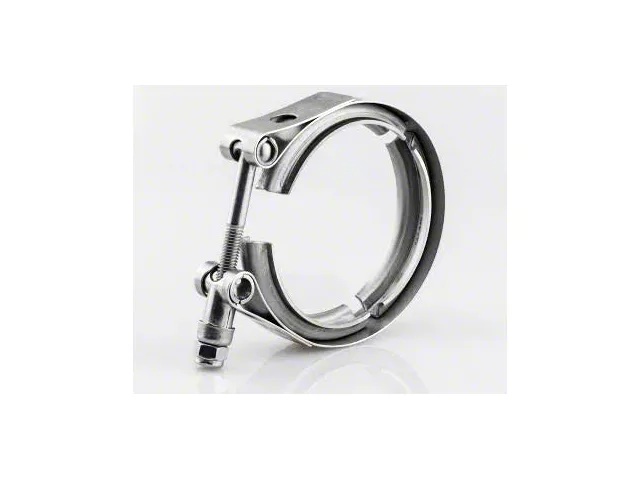

      V-Band Clamp Sizing Information: Our V-Band Clamp sizing is in reference to the intended matching tube size diameter, not the clamping range of the clamp itself. This specific V-Band Clamp is intended to be used with 2.500" ID V-Band Flanges (matching tube size: 2.500" OD) and will accept V-Band Flanges with an overall OD of 3.080".

      Our 304 Stainless Steel V-Band Clamps are manufactured in an ISO 9001 certified facility and feature a "Standard" T-Bolt style clamping mechanism to ensure a tight, leak-free seal.

      DETAILED SPECIFICATIONS:

      Clamp Material Type
      		 304 Stainless
      Compatible V-Band Flange OD
      		 3.080"
      Matching Tube Size (OD)
      		 2.500"
      Clamp Bandwidth 0.750"
      Clamp Type V-Band, Standard T-Bolt
      Fastener Size 8mm-1.5

      Provided Fasteners

      Metal Lock Nut (QTY: 1)
      Non-Locking Nut (QTY: 1)


      NOTE: Our V-Band Clamps are supplied with two types of nuts: a Zinc plated metal lock nut and a zinc plated non-locking hex nut. The Zinc plated lock nut ensures that your clamp stays locked in placed during harsh conditions on the street, strip, and track. The zinc plated non-locking hex nut is provided so that the clamp can be used in mock-up, fitment, and pre-installation situations where a lock nut is not required. The non-locking hex nut will not lock in place during use to ensure that the threaded portion of the clamp will not be damaged.

      Disclaimer: Our 2-1/2-inch V-Band clamps are supplied with a lock nut and a standard non-locking hex nut. The metal lock nut is a locking-style nut and is not intended to be used during mock-up. Attempting to thread, remove, and re-thread the lock nut may cause damage to the "T-Bolt" section of the clamp. In some cases, excessive force can damage and/or break the "T-Bolt" section of the 2.5" exhaust v-band clamp. If you intend to use our clamps during the mock-up process please use a non-locking hex nut.

      Auto Mafia Racing AMR-VBAND-2.5
