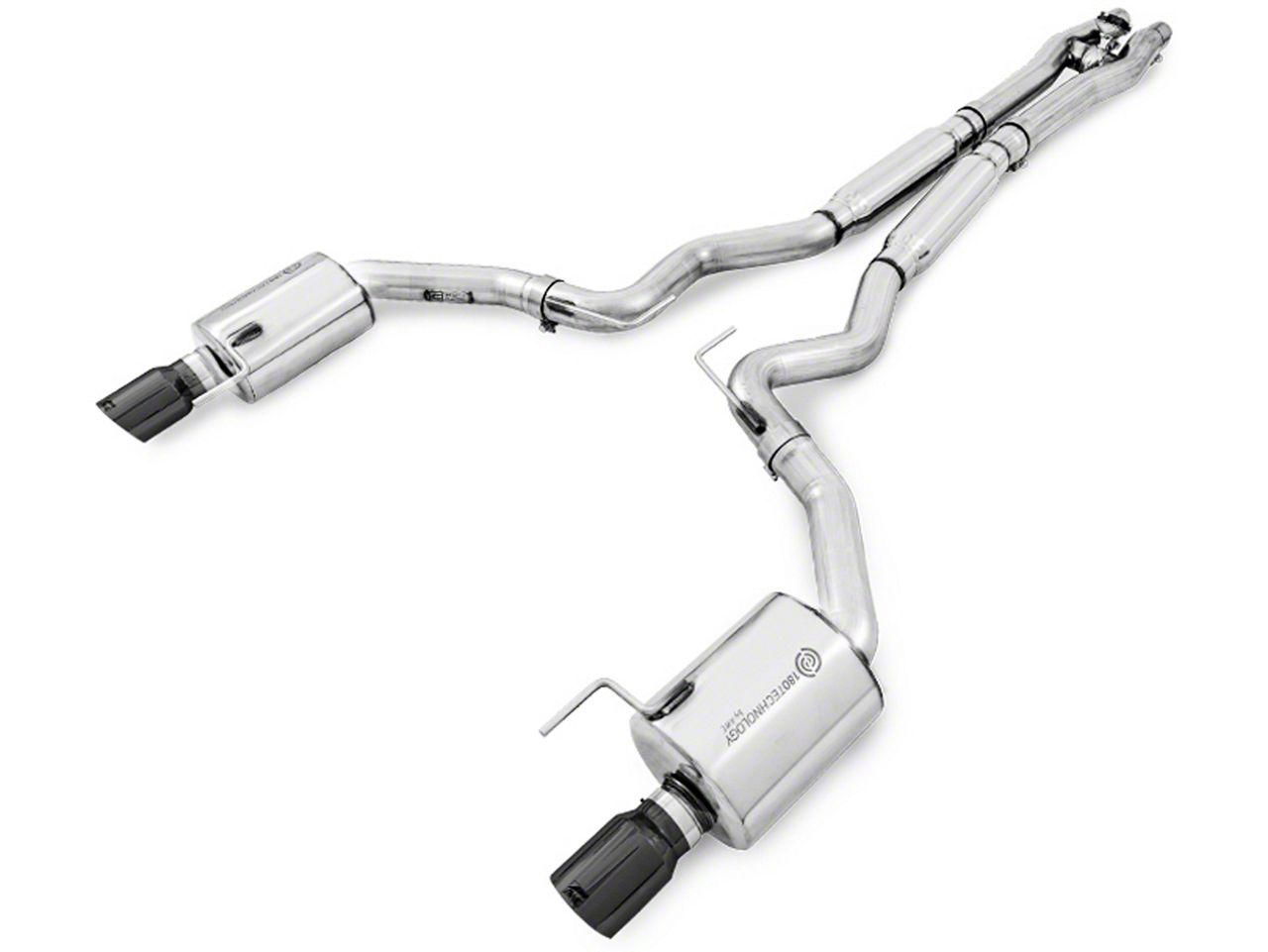

AWE SwitchPath Cat-Back Exhaust w/ Diamond Black Tips (15-17 GT Fastback)

Market Price $1,896.28 You Save 5% ($94.81)
Starting At

$1,801.47

FREE Shipping

  • Item 397444
  • MPN# 3025-33022

Local Install Shops

Quoted installation from $125

View 3 Shops

near 19355 (change)

Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

In Stock Ships same business day.
Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features, Video & Details

    • Smooth to Aggressive with the Touch of a Button
    • Muscle Car Sound without the Drone
    • Improves Exhaust Flow for Increases in Horsepower and Torque
    • Touring Resonators with AWE 180 Technology
    • SwitchPath™ H-Pipe with Two Bullet Resonators Included
    • 3" Mandrel-Bent 0.065” Wall T304 Stainless Steel Tubing
    • 4” Double-Walled Diamond Black Exhaust Tips
    • Direct Bolt-On Installation
    • Proudly engineered, designed, and manufactured in the USA
    • Fits 2015-2017 5.0L GT Fastback Mustangs

    Review & Installation Video

    Review & Install Video

    AWE's SwitchPath cat-back exhaust system should appeal to the S550 GT owners out there looking for a premium cat-back, and one that will deliver that active system. That's going to give you the ability to change both the volume and the tone with the included remote control from AWE. Now, along with that, prospective buyers can look forward to exceptional quality here with this particular cat-back, premium 304-grade stainless steel throughout, including those black diamond tips, for right around the $1,600 to $1,700 price point. Now, the installation will be a little bit more difficult than your standard cat-back install, because you do have to wire in that SwitchPath valve. So I will knock this one up to a two out of three wrenches on the difficulty meter, and we will have some more detail on that later on. So even though AWE is the relative new kid on the block in the land of aftermarket Mustang exhaust systems, they are certainly not new to making exhaust systems and have been doing so for over 20 years now for other high-end cars. Even though they are relatively new into the Mustang world, they have quickly become a favorite with many S550 owners out there for their exceptional build quality, which we already talked about, very aggressive tone, H-pipe configuration, which is kind of a rarity in the premium category. Then, last, but not least, their SwitchPath Tech, which is the latest entry into the active exhaust market. AWE's approach to this active exhaust market is a little bit different from, say, Ford Performance or Roush, for instance, who both utilize an actuator or valve a little bit closer to the actual muffler itself. AWE, on the other hand, they're going to use their valve right on that H-pipe, as you guys can see right there. You are going to control that with the included remote control to either open or close that valve, giving you some different sound in the process. Well, let's talk about how that valve will affect the sound on your S550 Mustang. With it completely open, you have the full operation of that H-pipe, essentially giving you that Touring system from AWE. Which is pretty aggressive on its own and good enough for a three out of five on my one to five, or one to Wake the Neighbors scale. Now, with that valve fully closed, on the other hand, you're going to be eliminating that H-pipe from the equation, giving the car more of a straight-piped kind of feel or vibe. Now, I'll be the first one to tell you here, gang, don't expect a huge difference in volume between the valve being fully open versus being fully closed, like you would with those Roush or Ford Performance options. Instead, with that valve fully open and that H-pipe kind of incorporated, you're going to be getting that Touring system sound. So a little bit more polished overall, that deep thumping tone here, and just a smoother sound overall. But with that valve fully closed, again, you're getting those straight pipes kind of working for you, and it does get a little bit more aggressive. Yes. A little bit more volume, in addition to a little bit more of that rough around the edges sound, some pops, some crackles coming down off the revs, things like that. Now, even though there isn't a huge difference between the two settings and I stand by that, there is a slight difference. So enough to knock it up from a three to a four out of five on my one to five, or one to Wake the Neighbors scale, with that valve fully closed. But sticking with the sound a little bit more here, guys, and something that I really enjoy about the AWE systems is that they take the road less traveled with their mid-pipe configuration and go with an H-pipe instead of an X-pipe. Now, a lot of other manufacturers in this price point here, including Corsa and also Borla, will traditionally use an X-pipe to give you a little bit more volume, in addition to a little bit more rasp, which some owners might like. Others maybe not be so crazy about it. If you're not, then I think the AWE will be a great choice for you. Because it will help deliver some of that H-pipe sound, that lower thumping tone that we already talked about, and it is nice that there is an option for you in this price point. But moving inside the car, on the other hand, you can expect a completely different experience overall, a much quieter experience, thanks largely in part to the company's proprietary technology, known as their 180 Tech. Using this technology in all of their mufflers or resonators, the company is able to isolate and eliminate these unwanted frequencies, better known to you guys as drone, just making for a much more pleasurable experience inside the car while cruising. But let's move away from the sound. Let's finally touch on the construction and materials here with the AWE system, and nothing but praise from me when it comes time to break this thing down in that regard. Premium 304-grade stainless steel throughout, beautiful welds, just a really nice system. This is how you build them at this price point. In fact, the guys at AWE did a great job with the overall build quality, and it will show once you go to put this thing on your own ride. Taking your construction a step further, you're also going to be looking at three-inch, mandrel-bent tubing, essentially, from tip to tip here, guys. They do include a couple of bullet-style resonators with this system, in addition to those Touring Series cans. Everything is going to exit out the black diamond tips, which do look really sharp here in the shop, etched with that AWE logo. Listen, guys. I know the $1,600 to $1,700 price point might be a little hard to swallow for the AWE SwitchPath for some Mustang owners out there and at the end of the day, you're not exactly wrong. But you have to consider your other options in the category when shopping for an active exhaust system. For instance, the Roush axle-back alone is going to set you back nearly $2,600. Don't get me wrong, it's a very nice system. But you'll see quickly that the AWE is far more affordable. So just something to consider if you really have your heart set on an active exhaust system. But getting into the installation. As I pointed out earlier in the video, there is a little bit more work involved here with the SwitchPath cat-back, because there is some light wiring involved for the valve. So I am going to knock it up to a two out of three wrenches on the difficulty meter, anywhere from two to three hours, depending on your mechanical expertise and your setup. As far as your tool list, well, a basic socket set will be doing most of your heavy lifting here with this install. But because there is some wiring involved, just make sure you have your wire strippers on-hand, in addition to your soldering iron or your crimpers to help you get that part of the job done. Finally, guys, I always like to recommend just having a little spray lubricant on-hand to help you with some rusty bolts, in addition to some of those rubber exhaust hangers. The first step is always to remove that factory system. Right? So grab your 15-millimeter socket, remove the two band clamps closest to the resonator, and then grab a 13-millimeter socket to move back towards the rear of the system and remove the two hangers nearest the rear subframe, dropping the entire system down in one piece. At this point, go ahead and disconnect the battery, and get ready to route some wires through the trunk area and underneath your Mustang. You're going to want to leave that AWE control box in the actual trunk, and connect the red wire from that box to an ignition switch power wire, and connect that black wire to a ground. With the wires ran and everything connected in the trunk, now you can actually start installing the AWE system, starting with the SwitchPath H-pipe. Get that in place. Connect your wires underneath the car. Hook up your battery, just to check for operation of the SwitchPath valve. If everything checks out there, you can continue with the rest of the installation of the system, starting from front to back, of course. Get your clamps in place, but don't tighten them up as yet. Just leave everything snug, so you can move some pipes around if needed. Your final step would be to install the tips and the muffler portion of the AWE system. Make sure you have them exactly where you want them in the openings of your rear bumper. Hammer all your clamps down with your socket set or your impact gun, and your installation is complete. Wrapping things up, the AWE SwitchPath cat-back is a beautifully-constructed system for the $1,600 to $1,700 price point that will give prospective buyers some options when it comes to their sound, thanks to that remotely controlled valve on the H-pipe. Be sure to check one out for your S550 right here, at americanmuscle.com.

    From Smooth to Aggressive. With an AWE SwitchPath Cat-Back installed on your 2015-2017 GT you can easily switch between a smooth tone or an aggressive sound with just the push of a button. AWE designed their SwitchPath Cat-Back with a uniquely valved H-Pipe. In the open position the H-Pipe will balance out the exhaust pulses for a smooth muscle car tone. However, in the closed position the H-Pipe will act more like a set of old school straight pipes that will create a louder, more aggressive sound. Besides the SwitchPath H-pipe, this system includes a set of bullet style resonators that replace the bulky factory resonator and a pair of straight-through Touring resonators that feature 180 Technology®. Together these components will give your V8 powered Mustang a more pronounced sound that is louder than stock without any irritating drone in either the open or closed position.

    Performance and Power. Featuring a clean, non-baffled, straight-through design the AWE SwitchPath Cat-Back not only improves the sound of your GT Mustang, but it will also improve its performance. By reducing back pressure and giving your GT a free-flowing exhaust, you will see increases in both horsepower and torque. AWE has seen gains of 8 hp and 18 ft-lbs of torque to the crank.

    180 Technology®. AWE designed their Touring resonators using their own proprietary 180 Technology® to give your Mustang a smooth muscle car tone without annoying interior cabin drone. As exhaust gases flow through a AWE 180 Technology® equipped Touring resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. Restricting the size and location of these ports and chambers, will control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a 180 degree out-of-phase sound wave that cancels out problematic frequencies.

    T304 Stainless Steel Construction. AWE proudly engineers, designs, and manufactures their Cat-Backs in-house, in the good old USA. This exhaust system is handcrafted from U.S.-sourced CNC mandrel-bent 0.65” wall T304 stainless steel tubing for superior strength and corrosion resistance. The system includes a SwitchPatch H-pipe with two bullet style resonators and features two straight-through resonators that end with diamond black 4" double walled, slash cut exhaust tips.

    Direct Bolt-On Installation. Engineered to be a direct bolt-on replacement upgrade, this AWE SwitchPatch Cat-Back replaces everything from the mid-pipe resonator to the exhaust tips. This exhaust system with SwitchPath H-Pipe includes all necessary clamps and hangers to ensure a simple, straight forward installation with no modifications required.

    Application. This AWE Stainless Steel SwitchPath Cat-Back with Touring Edition Resonators is designed to fit 2015-2017 Fastback GT Mustangs equipped with the 5.0L 4V coyote engine. This 3" Cat-Back steps up from 2.5", so that it can be installed with the factory 2.5" exhaust system. Does not fit convertible models.

    Fitment: 2015 2016 2017 Details

    What's in the Box
    • (1) SwitchPath H-Pipe
    • (1) Driver Side Axle Section
    • (1) Passenger Side Axle Section
    • (2) 102mm Slash Cut Tips
    • (1) Driver Side Rear Assembly
    • (1) Passenger Side Rear Assembly
    • (4) 3.0” (76.2mm) Accu-Seal Clamps
    • (2) 3.0” (76.2mm) T-Bolt Clamps
    • (1) SwitchPath™ Remote Installation Kit
    Installation Info
    Tech Specs
    Piping Material: 304 Stainless Steel Tip Material : Diamond Black 304 Stainless Steel
    Piping Size: 3" Tip Size: 4"
    Muffler Type: Straight-through Resonator Fitment: 2015-2017 GT Fastback
    Will it fit my Mustang?

    You Might Also Like

    Customer Photos

    More Products You Might Like

    Q & A

    No questions about this product yet.

    Ask the First Question

    Customer Reviews (2) Write a Review

    Overall Rating 3.5

    out of 5 stars

    Installation Time:Afternoon

    • Loudness / Volume 3.5 3.5
    • Exhaust Note 3.5 3.5
    • Fit & Finish 5 5
    • Bang For Your Buck 3 3



    • 4/5

      Installation Time: Afternoon

      March 25, 2017

      Tired, but satisfied

      I've done exhausts before on other platforms - AWE ships, fits, and finishes exceptionally well. I dig the sound. I wanted something loud, but not something that draws the cops attention immediately to me when I'm not doing anything. When I open the throttle, it has just the right note for what I want. My only gripe is that the instructions SUCK. The pipes themselves are straightforward, but the electrical work instructions for the SwitchPath motor is basically nonexistent: it's basically two steps- 1- run the wire down the underside of the car not touching the exhaust (ummmmm okay, what's the best way to do that? Picture please?) and 2- splice the red wire to the trunks wiring harness and find a good ground (again, what's the best way to do this? I don't want to just start hacking away at wires). I have just enough electrical understanding to get myself in trouble so I need to be explained these things like I'm 5 years old. Last thing I need is to create an accidental car bomb with these things. Despite the junk instructions, I'm still really happy with this purchase. I put a lot of research into this and I feel like this one does everything just right. It's not the loudest exhaust on the market, but its not far, and it has a better note than some of the louder exhausts, in my opinion. All in all, it's more effort getting the old ones off than it is putting the new ones on; which is a good thing.

      HarryC

      Year: 2015 Submodel: GT

      Helpful (9)

    • 3/5

      Installation Time: Afternoon

      March 14, 2017

      Menacing

      Menacing black tips look SUPER mean especially on a race red body. Sound leaves a little to be desired from coming from corsa xtremes

      Sebastianq28

      Year: 2017 Submodel: GT

      Helpful (4)
