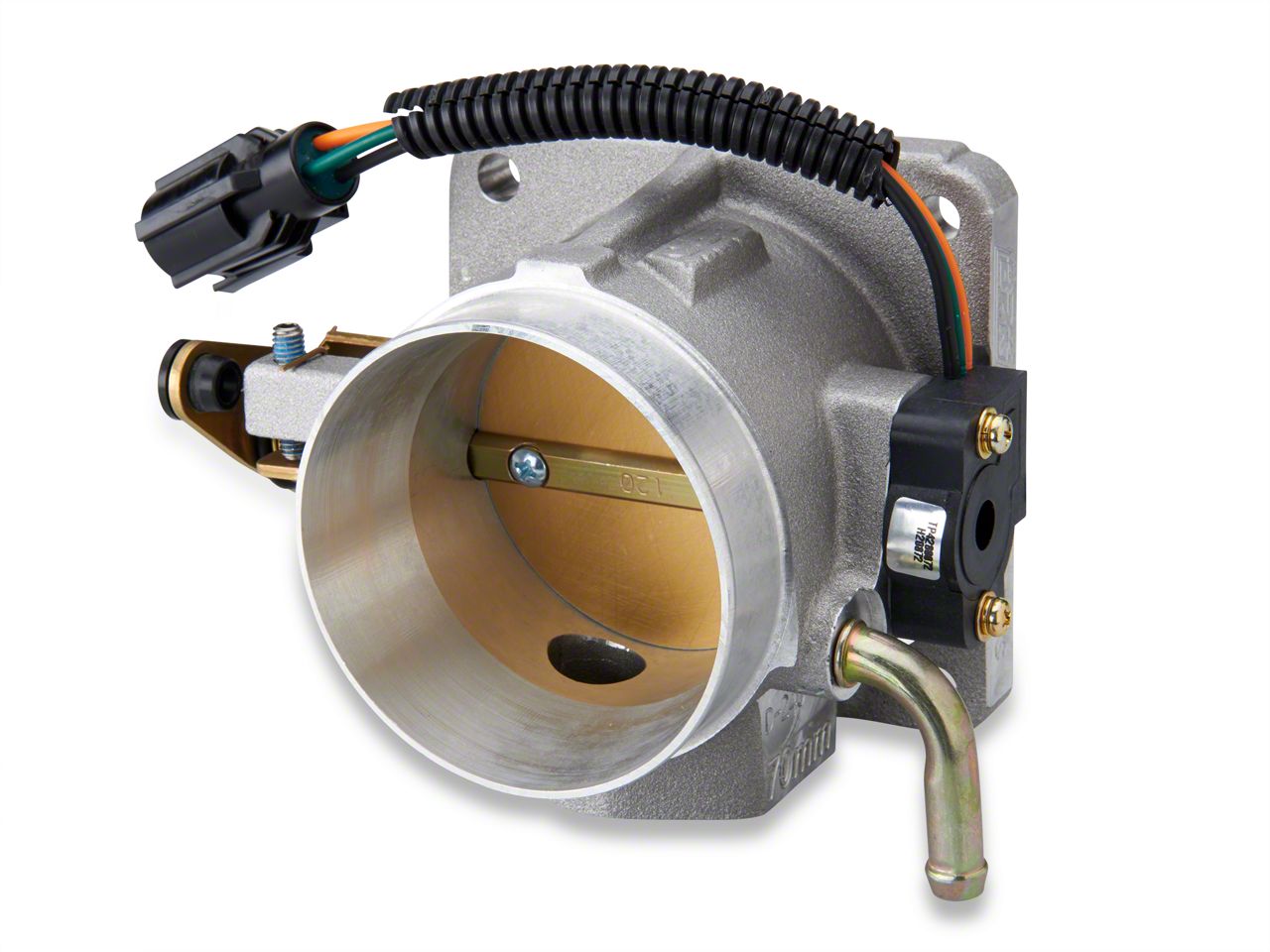

BBK 70mm Throttle Body (86-93 5.0L)

Item 56197
Market Price $226.99 You Save 12% ($27.00)
Our Price

$199.99 (each)

FREE Shipping

Will this fit your Vehicle?

Change Vehicle Help?
In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Increase Power; Improve Throttle Response
    • 70mm Single Bore
    • Great for Modded Naturally Aspirated Applications
    • Lightweight 356 Aluminum Construction
    • Bolt-On Installation
    • CARB EO Number: D-245-13
    • Fits 1986-1993 5.0L Mustangs
    Increase Power; Improve Throttle Response. If you're running a cold air intake setup on your 5.0L Mustang but are still running a stock throttle body, you're choking your performance Pony where it matters most. Unlike the restrictive factory throttle body, a free-flowing BBK Power Plus throttle body will let your engine breathe easier for an increase in power and improved throttle response.

    70MM Bore. Your stock throttle body is a restrictive 56mm, choking off airflow and keeping your Mustang from giving you all it has. This BBK throttle body features a generous, free flowing 70mm single bore design that is perfect for modified naturally aspirated applications.

    CNC Machined Aluminum. BBK throttle bodies are cast from high quality, lightweight 356 aluminum alloy that is finished using CNC machining to ensure a precision fit. They feature double-sealed bearings, o-ringed throttle shafts, and precision die-stamped linkages to ensure a long life and maximum performance for your Pony.

    Bolt-On Installation. The BBK Throttle Body is designed for a straightforward installation and includes all necessary hardware. It is designed to reuse the factory throttle body gasket for an easy installation.

    CARB Certified. This BBK 70mm Throttle Body is 50 stage legal under CARB EO Number: D-245-13.

    Application. This BBK 70mm Throttle Body is designed for use on 1986 to 1993 Mustangs equipped with the 5.0L EFI engine, including the LX 5.0, GT and SVT Cobra models. The EGR Spacer is

    not included, sold separately.

    Fitment: 1986 1987 1988 1989 1990 1991 1992 1993 Details

    MPN# 1501

    CA Residents: WARNING: Cancer and Reproductive Harm -

    What's in the Box
    • (1) Throttle Body
    • (1) TPS sensor
    Installation Info
    Tech Specs
    Throttle Body Specifications
    Bore Size: 70mm Single or Twin Blade: Single
    Year: 1986-1993 Model: 5.0 LX, GT and SVT Cobra
    Material: 356 Aluminum Finish: Cast Aluminum - Satin
    Manufacturer: BBK Computer Tune Required: No
    Will it fit my Mustang?

      Customer Photos (5) Submit Your Photo

      View All 5 Photos

        Questions & Answers (2)

        2 Top Rated Questions

        Does this come with the TPS sensor and Gasket?

        • The BBK 70mm Throttle Body will include the TPS sensor and is designed to reuse the factory throttle body gasket for an easy installation.

        Helpful (0)

        Do I need to add a spacer to install this throttle body? I have a 1988 Mustang Gt with a BBK cold air intake on it would i need to install a spacer with the Throttle body or can i just install it like this with no spacer? what are the spacers for anyways?

        • I have a 90 LX and it has a factory spacer that has the EGR valve mounted on it so as long as you have the original spacer you do not need to get a new one but there will be a significant difference in the diameter of the new throttle body to the old spacer. I bought both and ported the intake to match the throttle body opening to allow for more air flow. I would suggest for a few dollars more go for the spacer and just port the intake if it is stock. Good luck

        Helpful (0)
        Post Your Question

          Customer Reviews (5) Write a Review

          Overall Rating 4.2

          out of 5 stars

          Installation Time:Less than 1 Hour

          • Performance Gain 4 4
          • Fit 4.8 4.8

          • 5/5

            Installation Time: Less than 1 Hour

            April 19, 2019

            Good quality

            Very good and light throttle body. Replaces old and rusted stock one and bigger. My throttle body was old dirty and messed up so I can’t wait to see how differently it feels. I would totally recommend and pair up with egr spacer.


            Year: 1990 Submodel: GT

            Helpful (0)

          • 1/5

            January 31, 2019

            Why is everything you sell defective

            The part was defective Had to send it back after it was installed and pay a second installation for the new part


            Year: 1990 Submodel: LX

            Helpful (2)

          • 5/5

            Installation Time: Less than 1 Hour

            June 06, 2016

            93 mustang gt

            Easy fit. Definitely a good difference in throttle response.


            Year: 1993 Submodel: GT

            Helpful (11)

          • 5/5

            Installation Time: Less than 1 Hour

            July 17, 2015


            It fit perfect in my 93 Fox . I get this one because my old one that A crack and this one works really good!! Thanks


            Year: 1993 Submodel: Other San Fernando, CA

            Helpful (12)

          • 5/5

            Installation Time: Afternoon

            January 31, 2013

            Nice look and good upgrade

            If you have a stock intake then be prepared to so some porting, the opening is around 60mm and if you install this throttle body there is a severe lip that will hinder air fow dramatically. it took me with some primative porting tools about 2hrs to port but was worth it. This is about the last bolt on upgrade for me now looking at an intake, heads, and cam to compliment it. As for power gains it was hard for me to say I installed the throttle body as well as underdrive pulleys and removed the air pump. I did have a significant increase in off the line power and was able to spin the tires in second no problem so im sure the throttle body helped.


            Year: 1990 Submodel: Other Long Island, New York, USA

            Helpful (12)

            • Response from AmericanMuscle

              This should have been a simple bolt-on with no porting necessary. I'm glad you were able to install this and are happy with the outcome. In the future though, do please give us a call before modifying as we can ship a replacement if something is damaged or defective. We're always here to help!

              Lisa, Customer Care
