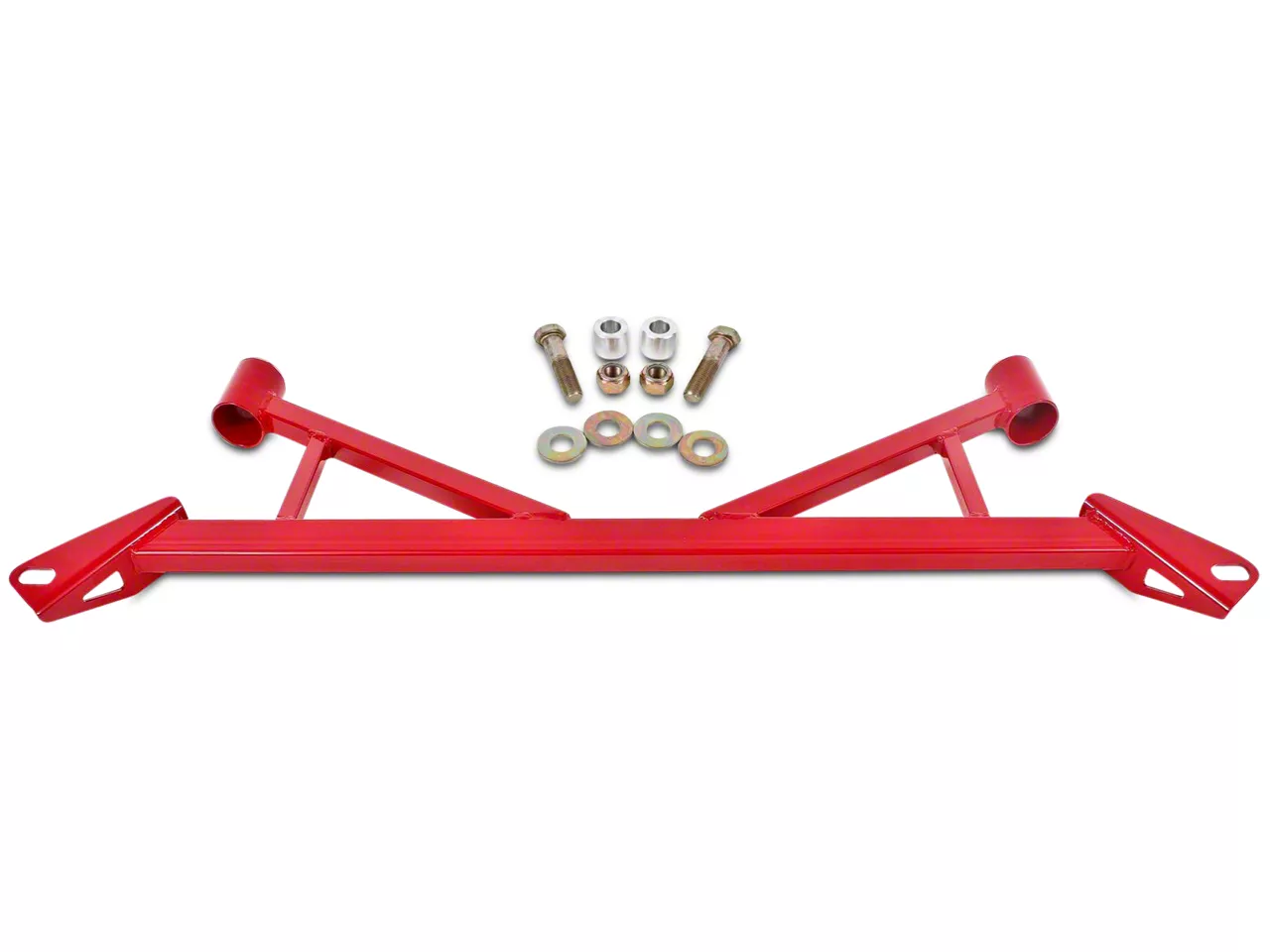

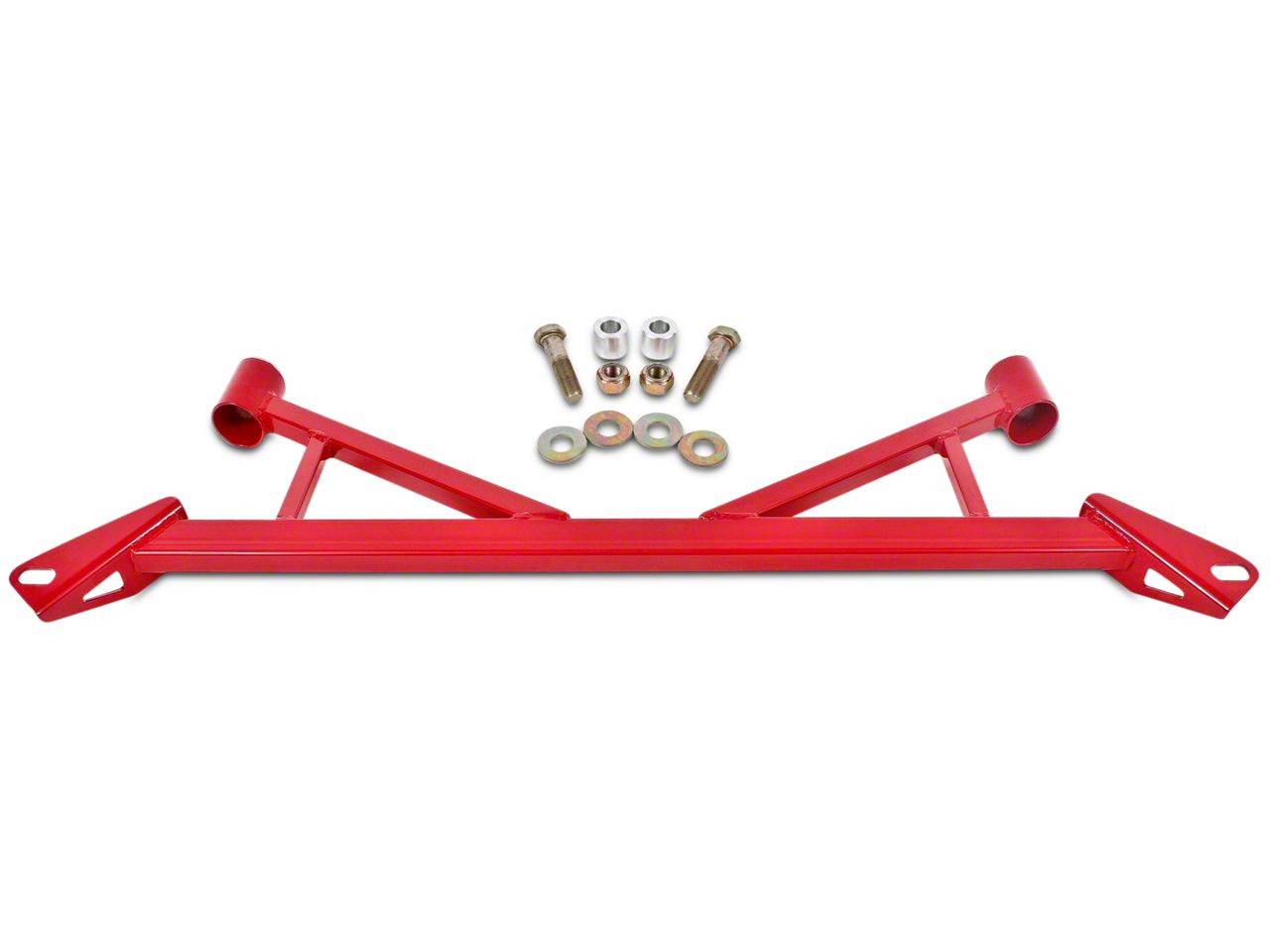

BMR Front Subframe Chassis Brace - Red (15-17 GT, EcoBoost)

Market Price $160.94 You Save 13% ($20.99)
Our Price

$139.95

FREE Shipping
  • Item 393965
  • MPN# CB006R

In Stock Ships same business day. Choose options to add to cart

Features, Video & Details

  • Heavy-Duty DOM Steel and Rectangular Tubing
  • Stiffens Factory K-member
  • 100% Bolt-On
  • Minimizes Suspension Deflection
  • No NVH Increase
  • Red Powder Coat Finish
  • Made in the U.S.A
  • Fits 2015-2017 GT and EcoBoost Mustangs

Review & Installation Video

Review & Install Video

Hey, guys. Stephanie with americanmuscle.com here with an overview of this front subframe chassis brace from BMR for the 2015 and newer GT and EcoBoost Mustangs. In this video we're gonna discuss what this brace does and how it's designed to work, and the materials in construction, and of course, the install as well. I'll go into more detail later, but the install for this brace is easy. It's 100% bolt-on item that you can install with simple hand tools. The BMR front subframe chassis brace is going to be something that you should check out if you're looking for a way to increase steering stability and give the K-member some more bracing. This brace ties together a few points in the front of the car to support and stiffen the front of the suspension, and it's gonna be for street performance, drag racing, and any handling applications. So, first things first, this brace is made from a combination of heavy duty two-and-a-quarter-inch steel and one by one-and-a-half inch rectangular tubing. It ties in the front lower control arm mounts to the rear legs of the K-member. These areas are important to support because the factory K-member and the lower control arm mount can deflect, and this deflection is what's gonna take away handling performance. The design of this brace, by tying the lower control arm mount and the rear legs of the K-member, reinforces the major areas of the K-member to reduce that deflection. Reducing deflection here means a better steering feel and more stability, whether you're taking corners or even under hard braking. And the good news about a brace like this one here is that you tie in these points on the chassis, you reduce deflection, and you get better handling results, but you aren't gonna increase NVH or noise, vibration, and harshness. A lot of times when you go to reduce deflection, you end up taking the road of swapping out soft rubber bushings for more firm bushings or maybe even no bushings at all. But those methods add NVH. A brace like this one here avoids adding NVH but still gets you the results that you want. This brace also has CNC machine that build an aluminum spacers for you and it's gonna come with your install hardware, too. Like I said before, it's 100% bolt-on, so it's gonna use existing bolt holes. Now, adding a brace to the K-member like this is going to open up some questions about fitment, and of course, a long tube headers are gonna be a concern. This brace will work with the stock and very nearly all aftermarket exhaust systems, including most long tube headers. It will not work with Kooks long tube headers though, so just keep that in mind. It's also not gonna work on V6 models. And lastly, probably not your main concern here today, but this brace is available in both black and red powder coated finish. When it comes to price, you're gonna expect to pay between $100 and $200 but closer to $100 for this brace. Now, I don't really have anything else to compare this brace to since BMR is currently the only ones out there making a brace like this for the front of the S550. I will say though that for close to $100, I'm not sure how you can go wrong here if you're looking to stabilize the front end. Good materials, great construction, the benefit of BMR's proven reputation and the science behind the product are all positive here. Moving on to the install, like I said earlier, this is a direct fit item, so the install is gonna be straightforward and simple. You're looking at an hour tops in the garage and a one out of three wrenches on the difficulty meter. The job can be done on jack stands if you don't have access to a lift, but as always, a lift would make things easier for you here. Your wheels need to come off and you're gonna need to pull the lower control arm bolts. The spacers will go into the subframe and to the mounting hole, and then you can fit up your brace and reinstall the lower control arm bolts. One thing I will say here is that aligning the bolt holes might require some help from another person. If you have trouble, a second person can pull out on the hub and rotor assembly so you can line the bolts up and get it through. Your remaining bolts are gonna go into the rear mounting holes with the supplied washers and lock nuts. BMR suggests tightening the front bolts first and then the rear bolts, and they give the required torque rating in the step-by-step install instructions that do have pictures as well to help you guys out. Overall, it's a very easy install for anyone. Wrapping things up with the BMR front subframe suspension brace. This is a brace that's gonna tie together the rear of the K-member and the lower control arm mounting point to provide for some front end stability and less deflection without any added NVH. This is a good mod for any performance vehicle and it provides more stable handling performance all the way around. As always, I suggest you check it out more online for yourselves right here at americanmuscle.com.

Track-Ready Stability. BMR offers great help for the handling of your 2015-2017 Mustang. The front K-member on the Mustang is quite strong straight from the factory, but still tends to flex under extreme use. The BMR Front Sub Frame Chassis Brace increases steering stability and reduces the need to make repeated front alignment changes on your S550 Mustang. Thanks to heavy-duty steel construction and smart engineering, it does this without increasing noise, vibration, or harshness (NVH) in the cabin.

Reduces Deflection. The BMR Sub Frame Chassis Brace ties the front lower control arms to the rear legs of the K-member, adding stiffness to the whole structure. Deflection under cornering and braking loads is considerably reduced, thus increasing steering feel and alignment stability under load.

Heavy Duty Construction. BMR Suspension proudly designs and manufactures their Subframe Chassis Brace right here in the USA. BMR's Brace features a triangulated design that ties key structural points together for an extremely rigid frame. This Subframe Chassis Brace is constructed from heavy duty 2-1/4" DOM steel and 1" x 1.5" rectangular tubing for exceptional strength. BMR then completes their Brace in a durable bright red powder coated finish for impressive good looks and long lasting corrosion resistance.

Easy Installation. Installation is 100% bolt-on and all necessary hardware is included. A lift helps, but installation can be achieved with jack stands and a good socket set.

Application. This red BMR Front Subframe Chassis is specifically designed to fit on the 2015-2017 GT and EcoBoost Mustangs. It does not fit on the V6 and GT350 models.

Technical Note. This Subframe Chassis Brace is not compatible on the GT models equipped with Kooks Long Tube Headers.

Fitment: 2015 2016 2017 Details

What's in the Box
  • (1) Chassis Brace
  • Hardware
Installation Info
Will it fit my Mustang?
  • GT - 15, 16, 17
  • EcoBoost - 15, 16, 17

People Who Bought This Item Also Bought

Most Helpful Reviews

5/5
Tighten that front!

Install was relatively simple but some steps and tips are left out of the supplied directions. You can knock it out with jackstands in an hour. The brace is easy to re-color yourself if you please. After ...

Read More
Helpful (1)

5/5
Less shake in my convertible

I just added this yesterday and took my 2016 GT Convertible out for a spin. The difference is absolutely noticeable for me. There is a lot less shake in the front end, steering wheel seems a lot more firm ...

Read More
Helpful (1)

Overall Rating 4.4 out of 5 stars
Read All 10 Reviews

Customer Photos (2) Submit Your Photo

View All 2 Photos

You Might Also Like

3 Questions / 3 Answers

Ask a Question

Sorry, Silly question. But are there any issues with this fitting the GT350?

Dasclay

  • Since the K-member is the same from the GT model to the GT350 model, this will not cause issues fitting on the GT350.

    KevinD92

Helpful (0)

How much does this part weigh?

MichaelN

  • This part will weigh 13.5 pounds.

    KevinD92

Helpful (0)

What long tube headers, if any, will fit with this installed? Thinking of future upgrades before purchasing. Thank you.

Theo

  • Hello! The only Long Tube Headers that will not work with the BMR Front Subframe Chassis Brace are Kooks Long Tube Headers.

    VincentV

Helpful (0)

More Products You Might Like

Customer Reviews (10) Write a Review

Overall Rating 4.4

out of 5 stars




  • 1/5

    July 16, 2017

    NOT A TRUE BOLT ON UPGRADE PART

    After much comparison vs Steeda brace I decided to go with BMR because there was NOT ONE bad review on fitment issues with this brace vs steeda. That turned out to be totally NOT TRUE!! This is NOT a true bolt on part. My frame had 4 tabs (ford oem left from stamping holes in k member) that were blocking the aluminum spacer provided in kit from properly aligning and it was extremely difficult to remove the 4 tabs (2 per side one upper and one lower) and then still had too force aluminum spacer into its proper location for rear bolts. Took 2 skilled guys 3.5 hours to finally get it installed. Repeat SERIOUS FITMENT ISSUES, NOT A TRUE BOLT ON PART!!! Customer service acted surprised and said they had not heard this complaint but my Mustang is a 2016 GT w/ 6 speed manual trans and was bone stock before this....... I truly hope their customer service follows up with me because I'm curious to know more on why I had such a problem because it was anything my fault. Keep'n it in-between the ditches!!!

    JohnC

    Year: 2016 Submodel: GT

    Helpful (1)

  • 4/5

    July 10, 2017

    Easy install

    This product looks great but I have personally noticed minimal difference when driving. The install was somewhat annoying because I couldn't get the holes right from the horrible install instructions to the actual car. Along with that, where the metal support things are intended to go in the sub-frame there was a metal tab that I couldn't remove that got in the way.

    TheDutchHutch

    Year: 2017 Submodel: EcoBoost

    Helpful (1)

  • 5/5

    April 25, 2017

    Tighten that front!

    Install was relatively simple but some steps and tips are left out of the supplied directions. You can knock it out with jackstands in an hour. The brace is easy to re-color yourself if you please. After the install the front end feels tighter and my turning ability was improved to a small but noticeable degree. This brace really secures the frame and helps you lock down those turns. I'm very happy with the end result!

    SteveK

    Year: 2016 Submodel: GT

    Helpful (1)

  • 5/5

    March 12, 2017

    Less shake in my convertible

    I just added this yesterday and took my 2016 GT Convertible out for a spin. The difference is absolutely noticeable for me. There is a lot less shake in the front end, steering wheel seems a lot more firm and I don't feel like I'm going to lose control hitting bumps at speed. Took me a little longer to put it on than expected, the holes that the spacers go in had tabs left in so had to get those out, but the spacers still wouldn't slide in. I had to dremel the holes get it to fit. Once that was done installation was very easy and did it just fine on two front jack stands

    Dano

    Year: 2016 Submodel: GT

    Helpful (1)

  • 5/5

    November 15, 2016

    can never go wrong with BMR

    stiffen up your chassis reduce Flex great upgrade for track days

    JULIAN

    Year: 1989 Submodel: GT

    Helpful (1)

  • 4/5

    November 15, 2016

    GREAT BANG FOR BUCKINGHAMSHIRE

    This is great very happy with the price. You can tell the difference. It's a very miner difference but one you can feel. For the price it's great

    Thecarguy

    Year: 2015 Submodel: GT

    Helpful (1)

  • 5/5

    August 01, 2017

    Nice Addition for Handling

    Car handles much better after installing this mod. Much tighter around corners and high speed curves...car is a point and shoot more or less now with no slop in the front end.

    2017MustangGT

    Year: 2017 Submodel: GT

    Helpful (0)

  • 5/5

    June 02, 2017

    16' GT

    This front brace along with my strut tower braces made a notable improvement in the feedback from the steering, and a slight improvement in the handling. Definitely recommend. Next lower springs.

    LewisB

    Year: 2016 Submodel: GT

    Helpful (0)

  • 5/5

    June 01, 2017

    Great

    Front end feels a lot more under control now. Used to float around a lot, now it really feels tight and precise in comparison. Great result for the price.

    PhillipK

    Year: 2017 Submodel: GT

    Helpful (0)

  • 5/5

    May 12, 2017

    Tight in the Front

    The front part of car no longer sways when I do my pulls. I am now working on the rear.

    Amani

    Year: 2015 Submodel: EcoBoost

    Helpful (0)
